1980 Yamaha SRX440D SKI Diagram

← All diagrams

Find the part on the SKI diagram for your 1980 Yamaha SRX440D, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

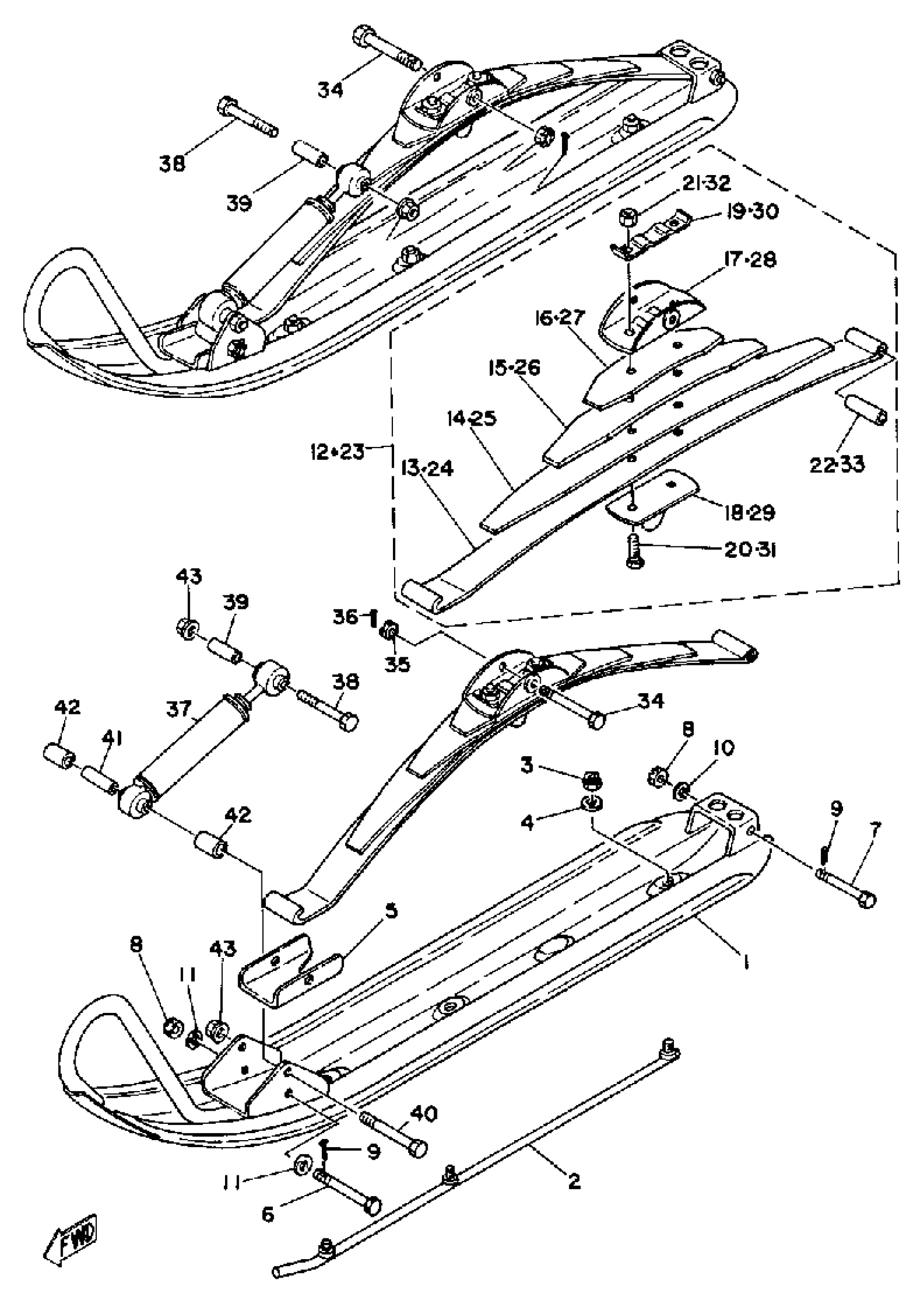

1980 Yamaha SRX440D SKI Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

SKI 1

8K2-23710-00-00

1
Out of stock

2

SKI RUNNER, 1

888-23731-01-XX

1
Out of stock

3

NUT, U

95617-08100-00

1

$6.78

In stock

4

.. WASHER, PLATE

92990-08600-00

1

$2.36

In stock

5

PLATE, WEAR

888-23735-00-00

—

$60.09

In stock

6

BOLT, WITH HOLE

90102-08025-00

1
Out of stock

7

BOLT, PIN HOLE (8A7)

90102-08027-00

1

$7.35

In stock

8

NUT, SLOTTED

95307-08900-00

1
Out of stock

9

PIN, COTTER

91490-20025-00

1

$1.31

In stock

10

.. WASHER, PLATE

92990-08600-00

1

$2.36

In stock

11

WASHER PLATE 141181390000

90201-08085-00

1

$6.38

In stock

12

SPRING ASSEMBLY 1

8G9-23760-00-00

1
Out of stock

13

LEAF 1

888-23761-10-00

1
Out of stock

14

LEAF 2

865-23762-10-00

1
Out of stock

15

LEAF 3

899-23763-10-00

—

$33.34

In stock

16

LEAF 4

899-23764-10-00

1
Out of stock

17

. SADDLE 1

888-23766-10-00

1
Out of stock

18

. SEAT, SPRING 1

878-23768-00-00

1

$18.71

In stock

19

WASHER, ROCK (8J5)

90215-10155-00

—

$11.66

In stock

20

. BOLT

90109-105E1-00

1
Out of stock

21

NUT, SELF-LOCKING (8J8)

90185-10085-00

—

$2.57

In stock

22

COLLAR

90387-08478-00

1
Out of stock

23

SPRING ASSEMBLY 2

(8G9-23770-00-00)

1
Out of stock

24

LEAF 1

888-23761-10-00

1
Out of stock

25

LEAF 2

865-23762-10-00

1
Out of stock

26

LEAF 3

899-23763-10-00

—

$33.34

In stock

27

LEAF 4

899-23764-10-00

1
Out of stock

28

. SADDLE 1

888-23766-10-00

1
Out of stock

29

. SEAT, SPRING 1

878-23768-00-00

1

$18.71

In stock

30

WASHER, ROCK (8J5)

90215-10155-00

—

$11.66

In stock
