1979 Yamaha SRX440C Tachometer Diagram

← All diagrams

Find the part on the Tachometer diagram for your 1979 Yamaha SRX440C, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

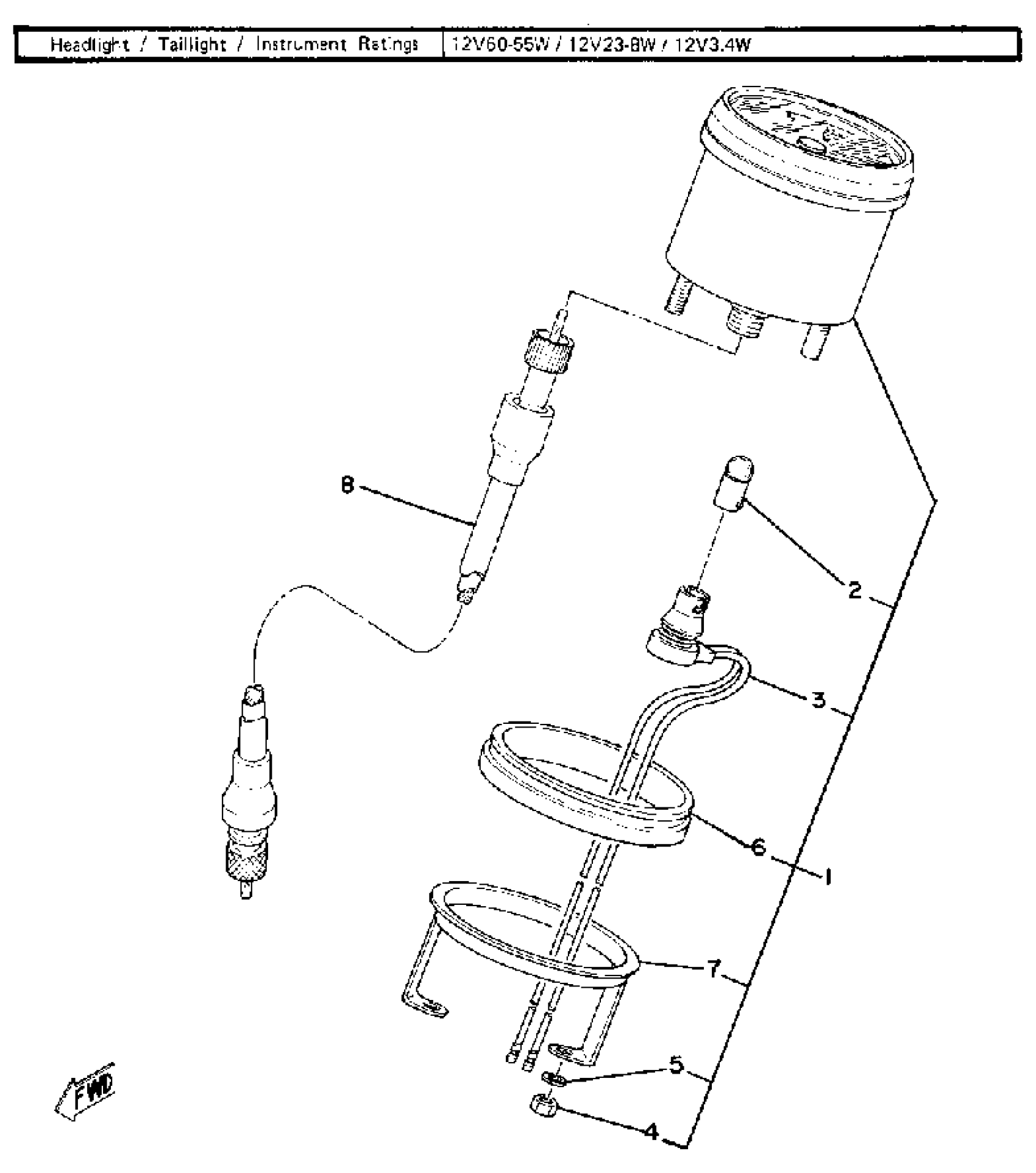

1979 Yamaha SRX440C Tachometer Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

TACHOMETER ASSEMBLY

8G9-83540-00-00

1
Out of stock

2

BULB (12V-3.4W)

123-83516-21-00

1

$4.10

In stock

3

SOCKET, METER

(861-83536-40-00)

1
Out of stock

4

NUT, HEXAGON (663)

95380-05600-00

1

$6.17

In stock

5

YBS67-5 WASHER, SPRING

92990-05100-00

1
Out of stock

6

DAMPER, METER

8G6-83523-00-00

—

$8.91

In stock

7

. BRACKET, METER

8G6-83519-00-00

1
Out of stock

8

SPEEDOMETER CABLE

839-83550-01-00

1
Out of stock
