Find the part on the Starter diagram for your 1979 Yamaha SRX440C, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

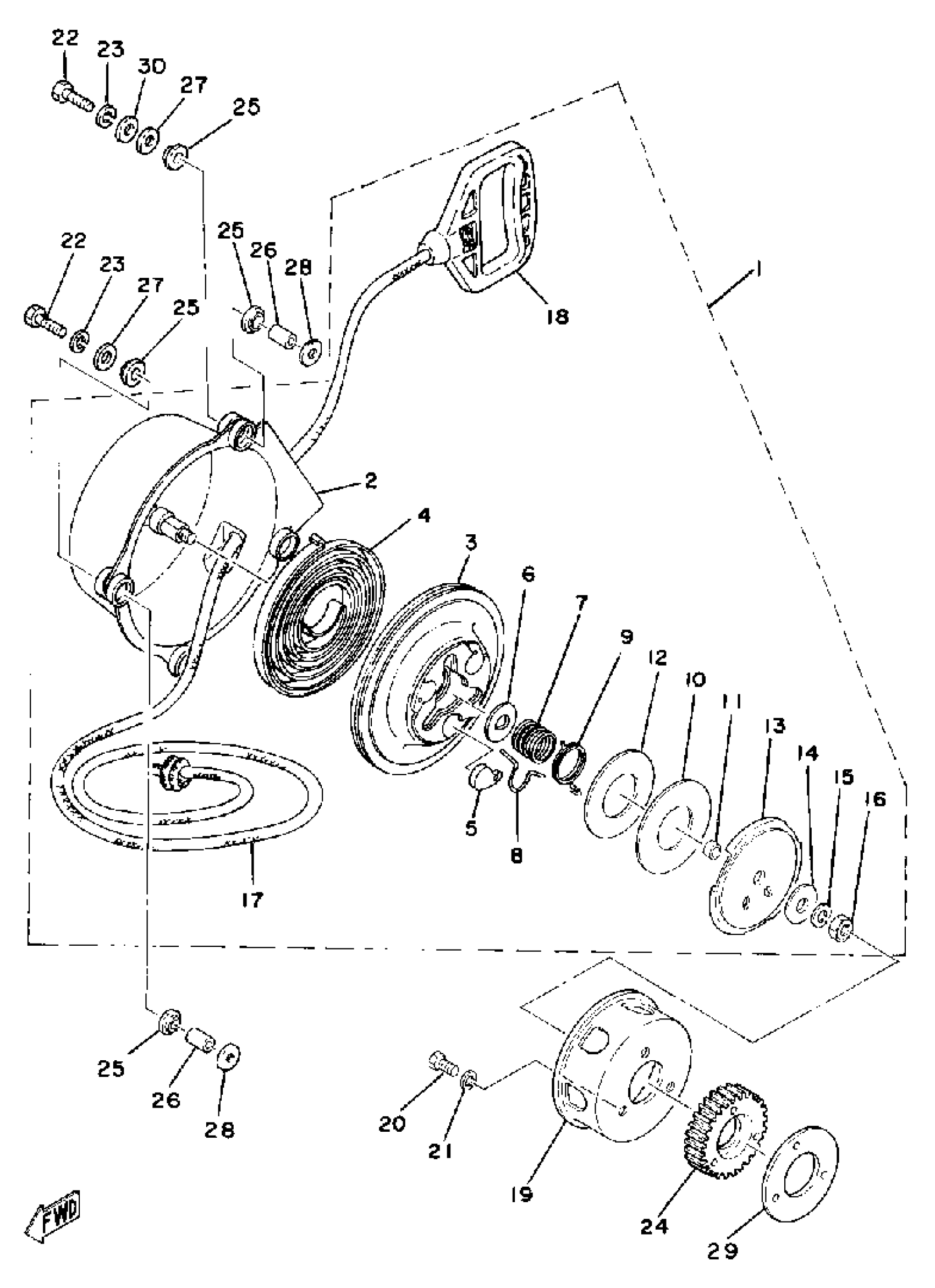

1979 Yamaha SRX440C Starter Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

STARTER ASSEMBLY

8G9-15710-00-00

1
Out of stock

2

. CASE, STARTER

8G9-15711-01-00

1
Out of stock

3

. DRUM, SHEAVE

857-15714-00-00

1
Out of stock

4

SPRING, STARTER

8F3-15713-01-00

1

$41.31

In stock

5

. PAWL, DRIVE

616-15741-01-00

1
Out of stock

6

WASHER, FLAT

(802-15726-00-00)

1
Out of stock

7

SPRING,DRIVE PLATE

626-15715-01-00

—

$2.42

In stock

8

. SPRING, RETURN

811-15784-00-00

1
Out of stock

9

. SPRING, RETURN

811-15734-00-00

1
Out of stock

10

WASHER,THRUST

8A7-15719-00-00

1
Out of stock

11

. BUSH

8A7-15753-00-00

1
Out of stock

12

WASHER,THRUST

8A7-15719-00-00

1
Out of stock

13

. PLATE, DRIVE

8A7-15716-00-00

1
Out of stock

14

WASHER,FLAT

807-15726-01-00

—

$3.54

In stock

15

YBS67-8 WASHER, SPRING

92990-08100-00

1

$4.52

In stock

16

. NUT

95380-08700-00

1

$3.07

In stock

17

WIRE, STARTER (BRAIDED)

89A-15751-00-00

—

$27.50

In stock

18

HANDLE, STARTER

8F3-15755-00-00

—

$23.00

In stock

19

PULLEY, STARTER

(8A7-15723-00-00)

1
Out of stock

20

BOLT, SOCKET

91317-08030-00

—

$6.17

In stock

21

YBS67-8 WASHER, SPRING

92990-08100-00

1

$4.52

In stock

22

BOLT, HEXAGON

97017-06030-00

—

$3.00

In stock

23

WASHER, SPRING

92995-06100-00

1

$2.99

In stock

24

PULLEY 1

8J0-12441-00-00

1
Out of stock

25

BUSH, SPEC''L RUBBER

90385-10033-00

1
Out of stock

26

COLLAR (6.1-12-15.6)

90387-06652-00

1
Out of stock

27

WASHER PLATE 248217570000

90201-06074-00

—

$6.29

In stock

28

WASHER, PLATE

90201-06655-00

1
Out of stock

29

WASHER

8J0-12456-00-00

1
Out of stock

30

WASHER, PLAIN (646)

92990-06600-00

—

$2.48

In stock
