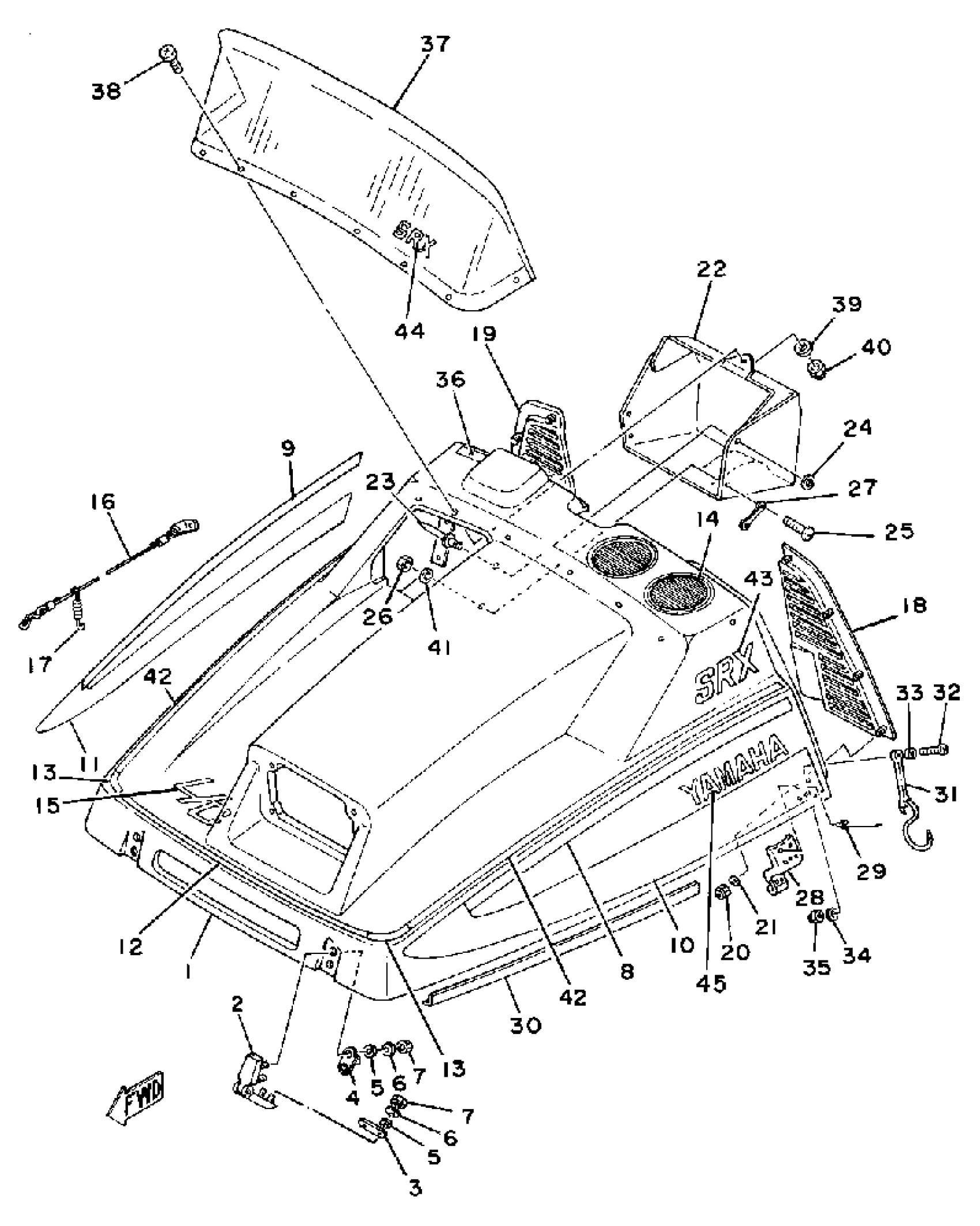

Find the part on the Shroud diagram for your 1979 Yamaha SRX440C, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1979 Yamaha SRX440C Shroud Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

SHROUD ASSEMBLY

(8J0-W7711-00-00)

1
Out of stock

2

HINGE ASSEMBLY

8J0-77140-00-00

1
Out of stock

3

PLATE, BACK UP 1

8G6-77153-00-00

1
Out of stock

4

PLATE, BACK UP 2

8J0-77154-00-00

1
Out of stock

5

WASHER, PLAIN (646)

92990-06600-00

1

$2.48

In stock

6

WASHER, SPRING

92995-06100-00

1

$2.99

In stock

7

NUT, HEXAGON

95380-06600-00

1

$4.13

In stock

8

ORNAMENT 1

(8J0-77163-01-00)

1
Out of stock

9

ORNAMENT 2

(8J0-77164-01-00)

1
Out of stock

10

ORNAMENT 4

(8J0-77113-01-00)

1
Out of stock

11

ORNAMENT 5

(8J0-77114-01-00)

1
Out of stock

12

STRIPE 2

(8J0-77282-00-00)

1
Out of stock

13

STRIPE 3

(8J0-77283-00-00)

1
Out of stock

14

LOUVER 3

8A7-77133-30-00

1
Out of stock

15

EMBLEM 8

(8J0-77358-00-00)

1
Out of stock

16

STOPPER, SHROUD

8F2-77118-00-00

1
Out of stock

17

CLAMP,ROD

838-77159-00-00

—

$3.49

In stock

18

LOUVER 1

8A5-77131-01-00

1
Out of stock

19

LOUVER 2

8A5-77132-01-00

1
Out of stock

20

NUT, NYLON

95707-05300-00

—

$2.74

In stock

21

WASHER, PLATE 8067717800

90201-05029-00

—

$5.12

In stock

22

DUCT

(8K2-77194-00-00)

1
Out of stock

23

RIVET, BLIND

90267-489UJ-00

1
Out of stock

24

WASHER, PLATE

90201-04027-00

—
Out of stock

25

SCREW, BINDING

98907-05016-00

—

$6.18

In stock

26

NUT, NYLON

95707-05300-00

—

$2.74

In stock

27

WASHER, SPECIAL

(8A7-77116-00-00)

1
Out of stock

28

CLAMP 2

(8F2-77136-00-00)

1
Out of stock

29

RIVET, BLIND

90267-40936-00

1

$1.38

In stock

30

STRIP, WEATHER 1

(8A7-77161-01-00)

1
Out of stock

31

LATCH ASSEMBLY

856-77170-00-00

1
Out of stock

32

SCREW, BIND(J39)

98980-06030-00

—

$5.62

In stock

33

WASHER, PLATE

90201-06380-00

—

$0.57

In stock

34

WASHER, PLAIN (646)

92990-06600-00

1

$2.48

In stock

35

NUT, NYLON

95707-06300-00

—

$3.20

In stock

36

LABEL, SAFETY

288-21659-00-00

1
Out of stock

37

WINDSHIELD

8J0-77210-00-00

1
Out of stock

38

SCREW, BINDING (8J0)

90154-05005-00

—
Out of stock

39

WASHER, PLATE 8067717800

90201-05029-00

—

$5.12

In stock

40

NUT, NYLON

95707-05300-00

—

$2.74

In stock

41

WASHER, PLAIN LARGE

92907-05200-00

—
Out of stock

42

STRIPE 1

8J0-77281-00-00

1
Out of stock

43

EMBLEM 6

8J0-77356-00-00

1
Out of stock

44

EMBLEM 7

(8J0-77357-00-00)

1
Out of stock

45

EMBLEM 7

(8H6-77357-00-00)

1
Out of stock
