1979 Yamaha SRX440C Engine Bracket - Drive Guard Diagram

← All diagrams

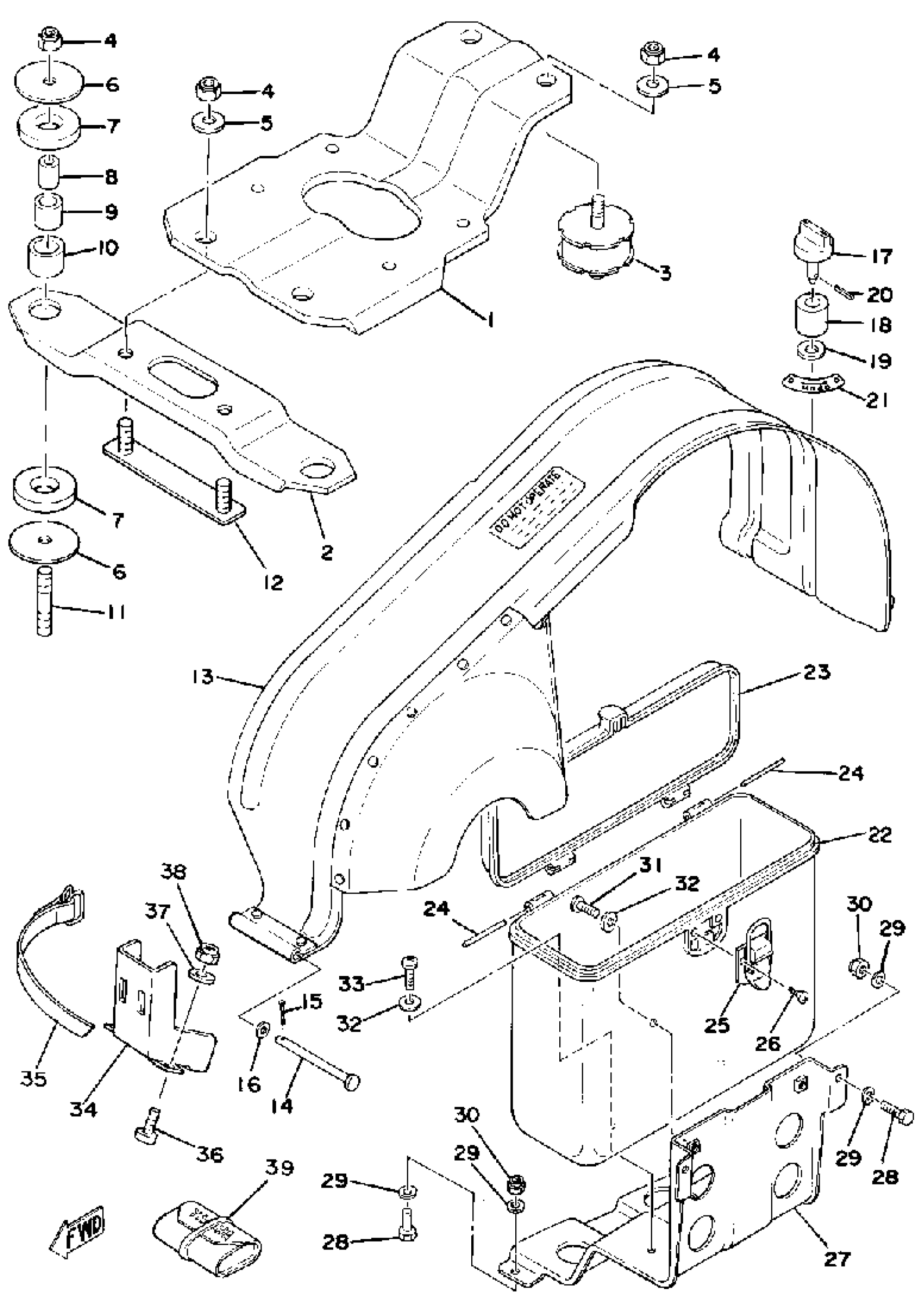

Find the part on the Engine Bracket - Drive Guard diagram for your 1979 Yamaha SRX440C, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1979 Yamaha SRX440C Engine Bracket - Drive Guard Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

BRACKET, ENGINE 1

8A7-21411-00-00

1
Out of stock

2

BRACKET, ENGINE 2

(8F2-21419-00-00)

1
Out of stock

3

DAMPER 2

857-21486-00-00

1
Out of stock

4

NUT, SELF-LOCKING

90185-10017-00

1
Out of stock

5

WASHER, PLATE (856)

90201-10321-00

1

$5.43

In stock

6

WASHER (888)

90201-10151-00

—

$3.94

In stock

7

DAMPER, RUBBER 1

8V0-21485-00-00

1
Out of stock

8

COLLAR

(90387-10613-00)

1
Out of stock

9

BUSH, SPEC''L RUBBER

90385-15025-00

1
Out of stock

10

COLLAR

90387-21515-00

1
Out of stock

11

BOLT, STUD

95611-10345-00

1
Out of stock

12

BOLT, ENG MNTNG 1

(8F2-21481-00-00)

1
Out of stock

13

GUARD, DRIVE

8F2-77311-00-00

1
Out of stock

14

PIN(8E7)

91701-06082-00

1

$4.60

In stock

15

PIN, COTTER

91490-20025-00

1

$1.31

In stock

16

WASHER, PLAIN (646)

92990-06600-00

—

$2.48

In stock

17

KNOB

(829-77324-00-00)

1
Out of stock

18

BUSH, SPEC''L RUBBER

90385-08009-00

1
Out of stock

19

WASHER, PLATE

90201-08104-00

1
Out of stock

20

PIN, SPRING (6G0)

91690-40025-00

—

$0.49

In stock

21

EMBLEM 11

(829-77366-00-00)

1
Out of stock

22

LUGGAGE BOX

(8E7-77391-00-00)

1
Out of stock

23

COVER, LUGGAGE BOX

8E7-77392-00-00

1
Out of stock

24

PIN, SPEC''L SHAPE

90249-03021-00

1
Out of stock

25

LUGGE BOX LTCH ASSEMBLY

8E7-77340-00-00

1
Out of stock

26

SCREW, FLAT

98707-03008-00

—

$5.62

In stock

27

STAY 1

(8E7-77397-00-00)

1
Out of stock

28

BOLT, HEXAGON DEEP RECESS

97D95-06016-00

—

$1.91

In stock

29

WASHER, PLAIN (646)

92990-06600-00

—

$2.48

In stock

30

NUT, NYLON

95707-06300-00

—

$3.20

In stock

31

SCREW, BIND(J45)

98980-06012-00

—

$4.70

In stock

32

WASHER, PLATE

90201-06747-00

—

$6.17

In stock

33

BOLT, HEXAGON DEEP RECESS

97D95-06016-00

—

$1.91

In stock

34

STAY, BELT

(8G9-77338-00-00)

1
Out of stock

35

BAND, SERVICE BAG

(8G9-77332-00-00)

1
Out of stock

36

SCREW, BIND

98903-05016-00

1
Out of stock

37

WASHER, PLAIN (646)

92990-05600-00

—
Out of stock

38

NUT, NYLON

95707-05300-00

—

$2.74

In stock

39

TOOL KIT (8G6-28100-10)

8G6-28100-00-00

1
Out of stock
