1979 Yamaha SRX440C Crank-Piston Diagram

← All diagrams

Find the part on the Crank-Piston diagram for your 1979 Yamaha SRX440C, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

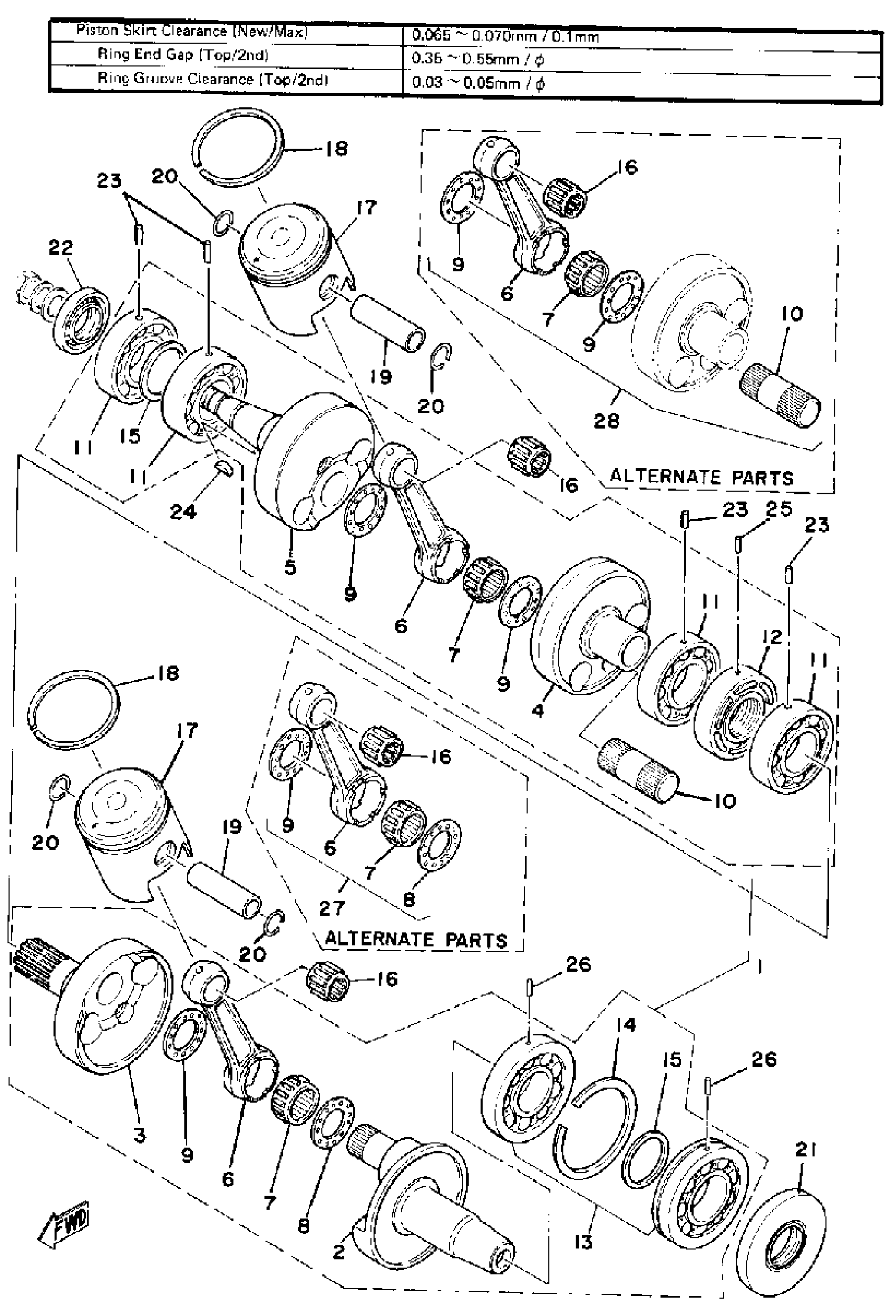

1979 Yamaha SRX440C Crank-Piston Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

CRANKSHAFT ASSEMBLY

8J0-11400-00-00

1
Out of stock

2

. CRANK 1

8J0-11412-00-00

1
Out of stock

3

. CRANK 2

8H0-11422-00-00

1
Out of stock

4

. CRANK 3

8H0-11432-00-00

1
Out of stock

5

. CRANK 4

8G9-11442-00-00

1
Out of stock

6

. ROD, CONNECTING

8H0-11651-00-00

1
Out of stock

7

BRG,CYL-CAL ROLLER (8R6)

93310-524K4-00

1

$110.95

In stock

8

WASHER, CRANK PIN

8A7-11685-00-00

1

$10.68

In stock

9

WASHER (152-11685-00)

90209-24073-00

1

$10.08

In stock

10

. PIN, CRANK 1

8H8-11681-00-00

1
Out of stock

11

BEARING(8V0)

93306-20633-00

1

$67.35

In stock

12

SEAL, LABYRINTH 1

(8G9-11515-01-00)

1
Out of stock

13

. BEARING ASSEMBLY 1

8H0-11415-01-00

1
Out of stock

14

CIRCLIP, OUTER

93440-78011-00

1
Out of stock

15

WASHER (8H0)

90201-34683-00

1
Out of stock

16

BRG,CYL-CAL ROLLER 25G KY

93310-320G0-00

—

$40.32

In stock

17

PISTON STD

8J0-11631-00-93

1
Out of stock

18

PISTON RINGSET STD

8G9-11601-00-00

1
Out of stock

19

PIN, PISTON

8J0-11633-00-00

—

$32.82

In stock

20

CIRCLIP (8H0)

93450-21053-00

—

$3.43

In stock

21

OIL SEAL (878).

93103-32095-00

—

$30.09

In stock

22

OIL SEAL(83R)

93103-32156-00

—

$26.08

In stock

23

PIN,DOWEL (168)

93604-12037-00

—
Out of stock

24

KEY, WOOD RUFF (324)

90280-05014-00

—

$7.82

In stock

25

PIN, DOWEL (409)

93604-16092-00

—

$1.94

In stock

26

PIN, DOWEL (8H1)

93604-07141-00

—

$1.35

In stock
