1979 Yamaha SRX440C Exhaust Diagram

← All diagrams

Find the part on the Exhaust diagram for your 1979 Yamaha SRX440C, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

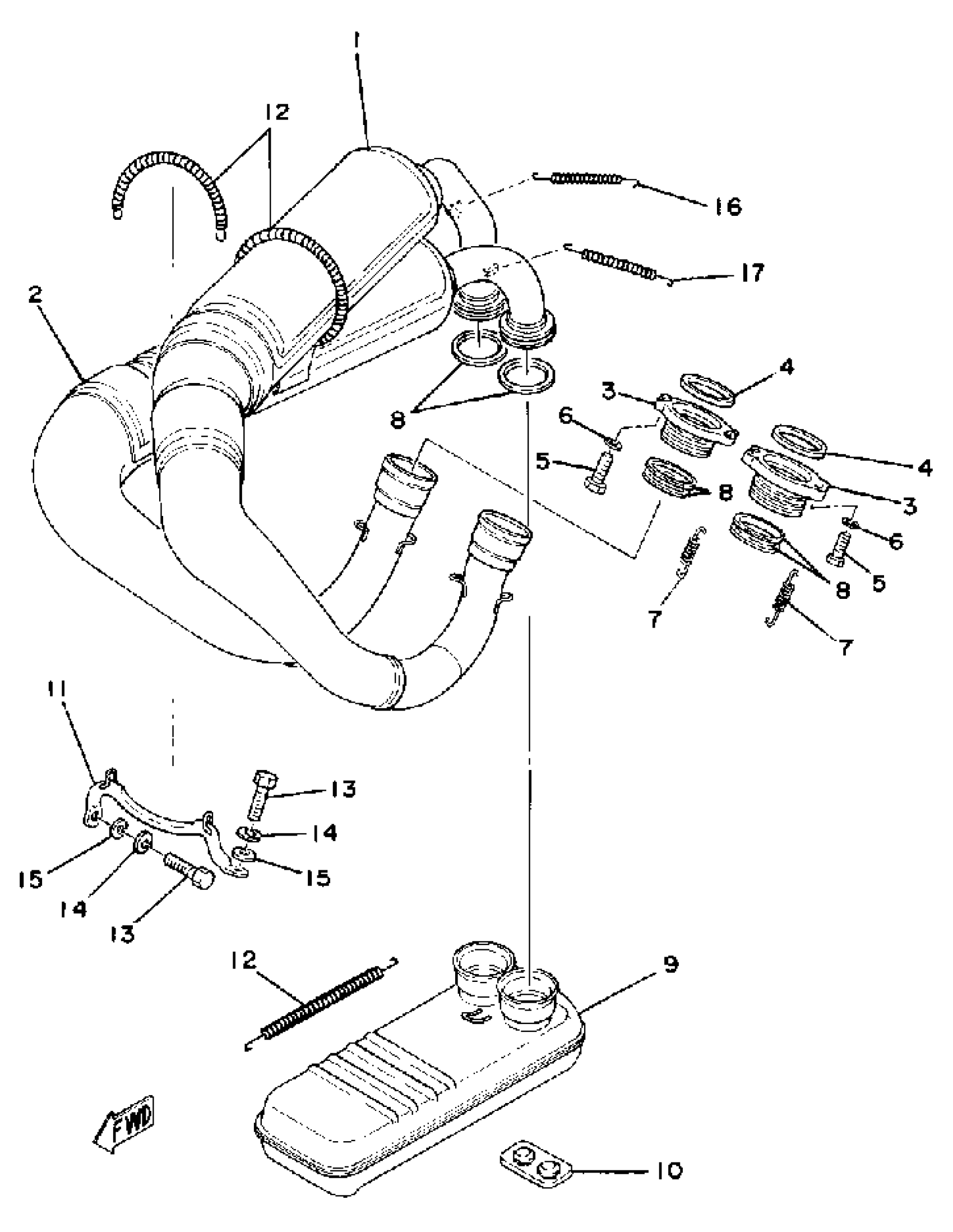

1979 Yamaha SRX440C Exhaust Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

EXHAUST PIPE ASSEMBLY L

8G9-14610-01-00

1
Out of stock

2

EXHAUST PIPE ASSEMBLY R

8G9-14620-01-00

1
Out of stock

3

NUT, RING

8J0-14612-00-00

1
Out of stock

4

GASKET, EXST PIPE

(8J0-14613-00-00)

1
Out of stock

5

BOLT (682)

97013-08025-00

1

$6.80

In stock

6

YBS67-8 WASHER, SPRING

92990-08100-00

1

$4.52

In stock

7

SPRING, HOOK (888)

90506-20115-00

—
Out of stock

8

RING

888-14633-00-00

1

$6.46

In stock

9

2ND SILENCER, MUFF

8J0-14640-00-00

1
Out of stock

10

PROTECTOR, MUFFLER 2

8A5-14728-02-00

1
Out of stock

11

STAY, MUFFLER 1

8J0-14771-00-00

1
Out of stock

12

SPRING, TENSION (8BU1)

90506-16494-00

1

$6.22

In stock

13

BOLT, HEXAGON

97013-08016-00

1

$1.32

In stock

14

YBS67-8 WASHER, SPRING

92990-08100-00

1

$4.52

In stock

15

.. WASHER, PLATE

92990-08600-00

1

$2.36

In stock

16

SPRING, TENSION

(90506-18186-00)

1
Out of stock

17

SPRING, TENSION

90506-20173-00

1
Out of stock
