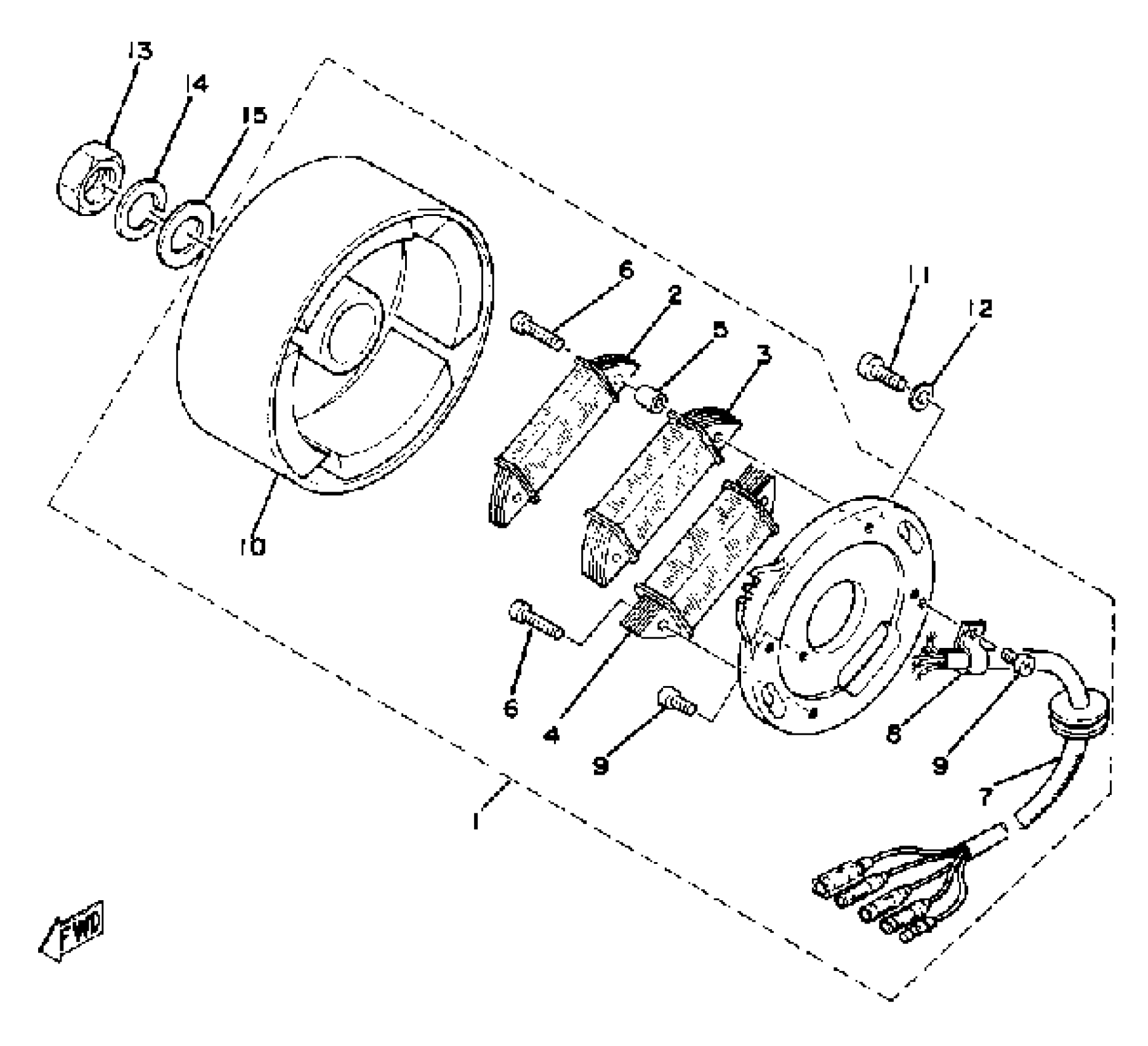

Find the part on the C - D - I - Magneto diagram for your 1978 Yamaha SRX440B, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1978 Yamaha SRX440B C - D - I - Magneto Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

CDI MAGNETO ASSEMBLY

(8G9-85500-10-00)

1
Out of stock

2

. COIL, CHARGE

8G9-85541-10-00

1
Out of stock

3

. COIL SOURCE 2

8G9-85512-10-00

1
Out of stock

4

. COIL, LIGHTING 1

8F2-85513-10-00

1
Out of stock

5

.. SPACER

888-81318-10-00

1
Out of stock

6

. CONDENSER 1

647-81325-91-00

1

$36.91

In stock

7

LEAD WIRE ASSEMBLY

(8G9-85515-10-00)

1
Out of stock

8

. CLAMP

109-81328-11-00

1
Out of stock

9

SCREW, PAN HEAD (713)

98580-04008-00

1

$4.54

In stock

10

ROTOR ASSEMBLY

(8G9-85550-10-00)

1
Out of stock

11

SCREW, PAN HEAD(6E5)

97880-06018-00

1

$4.19

In stock

12

WASHER, PLATE

90201-06045-00

1

$6.18

In stock

13

NUT

90170-16425-00

1
Out of stock

14

WASHER(JN5)

92907-16100-00

1

$12.08

In stock

15

WASHER, PLATE (32N)

90201-163G6-00

1

$6.98

In stock
