1978 Yamaha SRX440B Electrical Diagram

← All diagrams

Find the part on the Electrical diagram for your 1978 Yamaha SRX440B, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

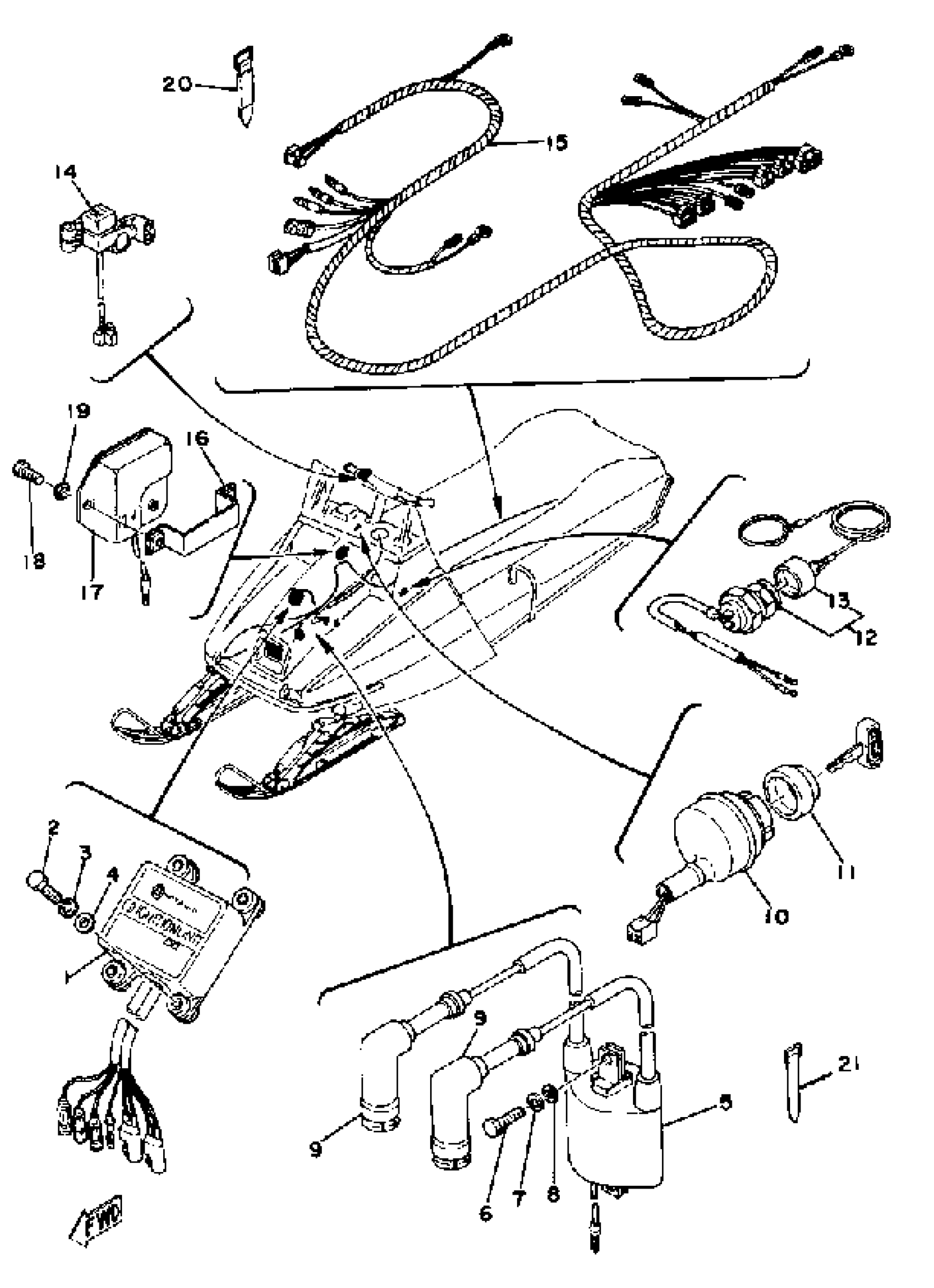

1978 Yamaha SRX440B Electrical Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

CDI UNIT ASSEMBLY

8G9-85540-10-00

1
Out of stock

2

BOLT, HEXAGON (97201-05025)

97301-05025-00

1
Out of stock

3

YBS67-5 WASHER, SPRING

92990-05100-00

1
Out of stock

4

WASHER, PLAIN (646)

92990-05600-00

1
Out of stock

5

IGNITION COIL ASSEMBLY

8G9-82310-11-00

1
Out of stock

6

BOLT, HEXAGON

97017-06020-00

1

$2.55

In stock

7

WASHER, SPRING

92995-06100-00

1

$2.99

In stock

8

WASHER, PLATE (4H7)

90201-061A5-00

1

$5.86

In stock

9

PLUG CAP ASSY

7KA-82370-00-00

1

$62.25

In stock

10

MAIN SWITCH ASSEMBLY

8F3-82508-20-00

1
Out of stock

11

COLLAR, MAIN SWITCH

806-82516-00-00

1
Out of stock

12

STOP SWITCH ASSY

8H8-82550-01-00

1

$83.12

In stock

13

CAP, SWITCH

8H8-82552-09-00

1

$42.05

In stock

14

SWITCH, HANDLE 1 (8E7-83976-00)

8E7-83976-01-00

1
Out of stock

15

WIRE HARNESS ASSEMBLY

(8G9-82590-20-00)

1
Out of stock

16

PLATE, REG FITTING

8G6-81915-00-00

1
Out of stock

17

VOLTAGE REGULATOR ASSY

7XE-81910-00-00

—

$50.55

In stock

18

BOLT, HEXAGON DEEP RECESS

97D95-06016-00

—

$1.91

In stock

19

WASHER, TOOTH

92901-06400-00

1
Out of stock

20

BAND, SWITCH CORD

437-83936-01-00

—

$4.63

In stock

21

BAND

341-26397-01-00

1
Out of stock
