1978 Yamaha SRX440B Head Light Diagram

← All diagrams

Find the part on the Head Light diagram for your 1978 Yamaha SRX440B, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

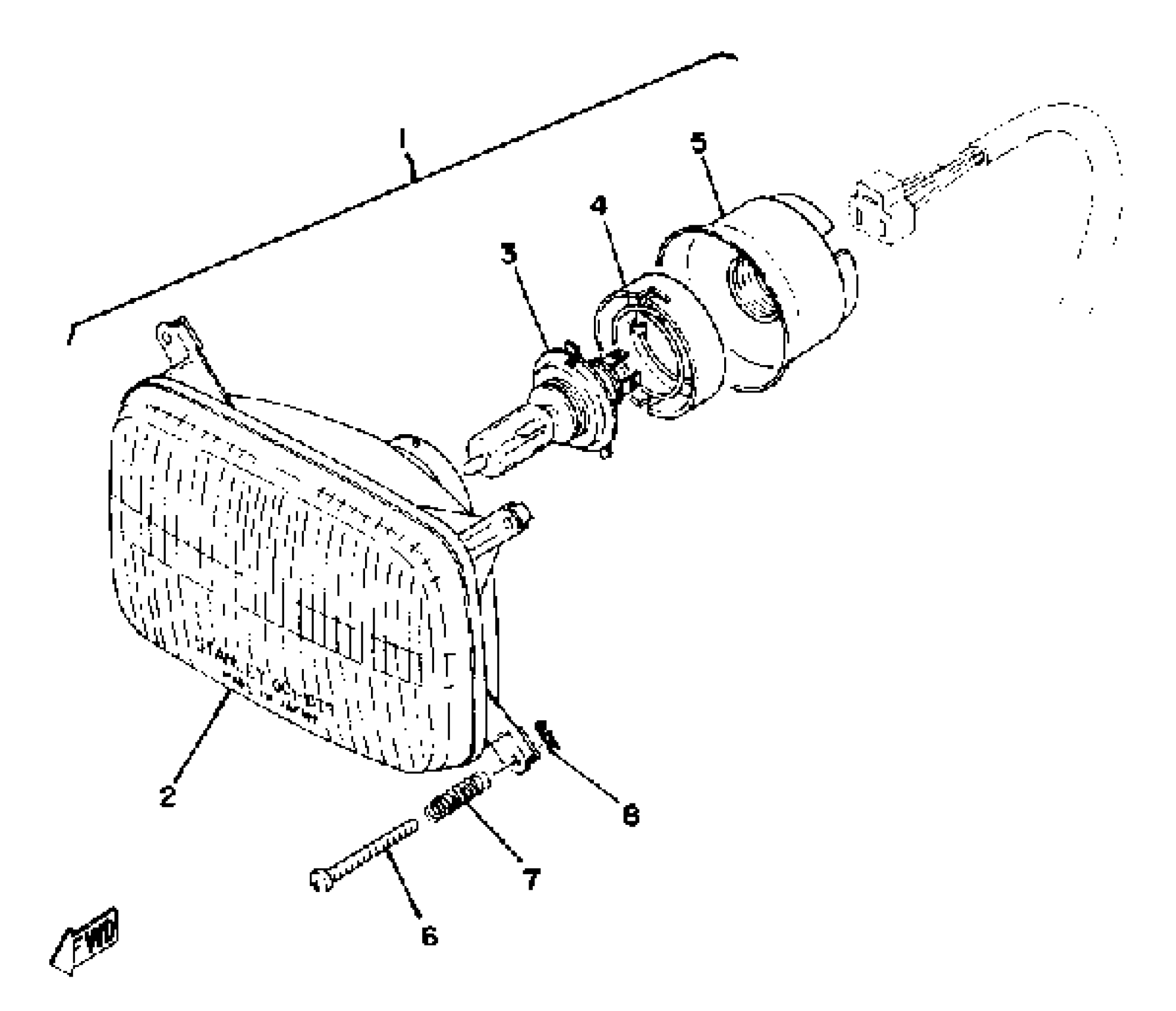

1978 Yamaha SRX440B Head Light Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

HEADLIGHT UNIT ASSY

8M6-84310-00-00

1
Out of stock

2

LENS ASSY

8A7-84320-00-00

—

$49.02

In stock

3

BULB, HEADLIGHT

8V0-84314-10-00

1
Out of stock

4

HOLDER, SOCKET

8A7-84312-00-00

1
Out of stock

5

COVER, SOCKET

8A7-84397-01-00

—

$20.35

In stock

6

SCREW, ADJUSTING

8M6-84331-00-00

1

$14.80

In stock

7

SPRING, ADJUST SCREW

8A5-84332-00-00

1

$7.40

In stock

8

CLIP

8K4-84374-00-00

1

$6.82

In stock
