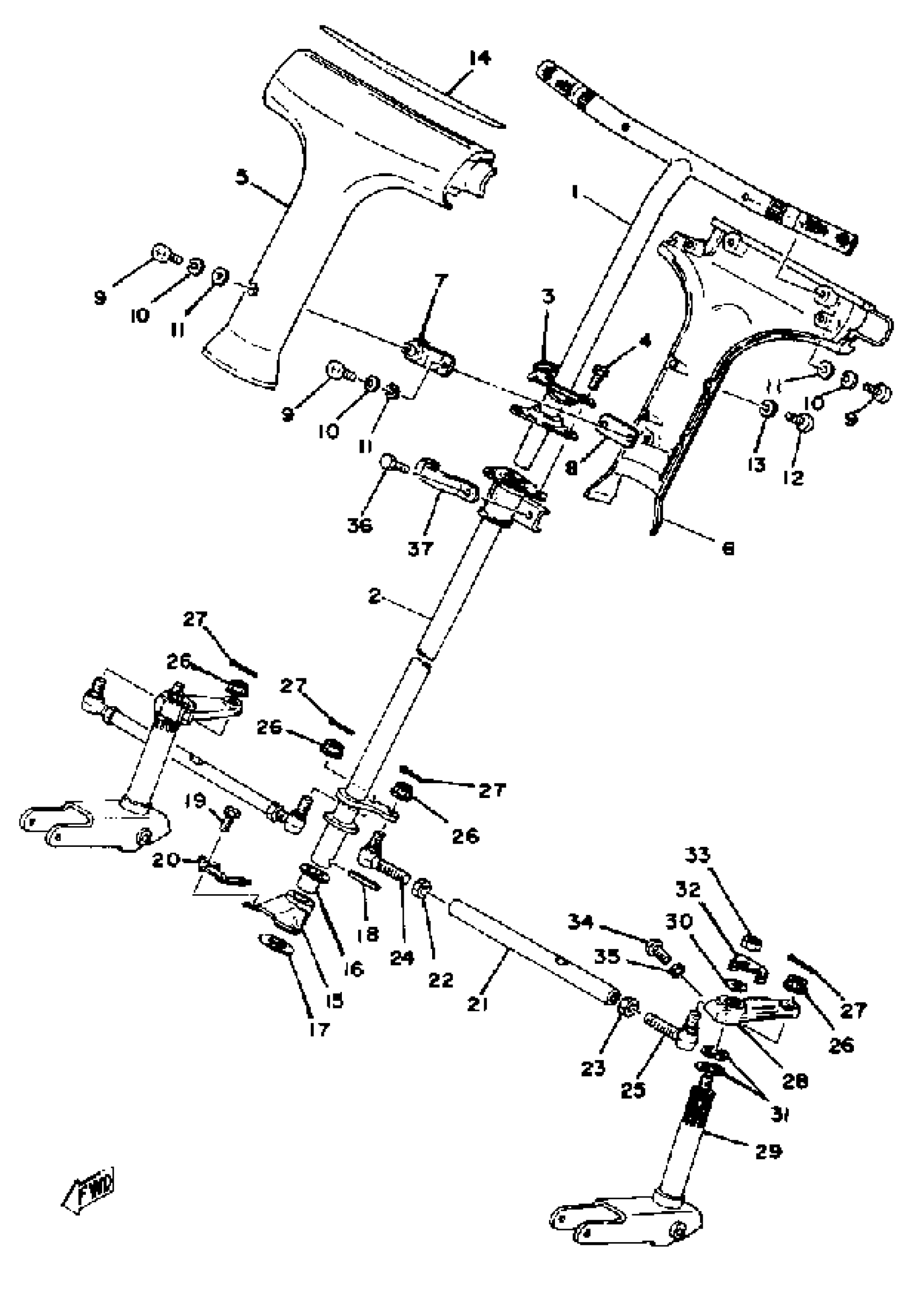

Find the part on the Steering diagram for your 1978 Yamaha SRX440B, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1978 Yamaha SRX440B Steering Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

COLUMN, STEERING

8G9-23811-00-00

1
Out of stock

2

COLUMN, STEERING 2

8E7-23813-00-00

1
Out of stock

3

WASHER, LOCK 1

(888-23894-00-00)

1
Out of stock

4

BOLT, HEXAGON DEEP RECESS

97D95-06016-00

1

$1.91

In stock

5

PAD, STEERING

(8G9-23815-00-00)

1
Out of stock

6

PAD, STEERING

8G9-23817-00-00

1
Out of stock

7

BRACKET 1

8G9-23881-00-00

1
Out of stock

8

BRACKET 2

(8G9-23882-01-00)

1
Out of stock

9

SCREW, PAN

98517-05012-00

1

$3.91

In stock

10

WASHER(3SX)

92907-05100-00

1

$6.18

In stock

11

WASHER(1RW)

92907-05600-00

1
Out of stock

12

SCREW, PAN HEAD

98517-04012-00

1

$3.28

In stock

13

WASHER(6TA)

92907-04100-00

1

$5.98

In stock

14

EMBLEM

8G9-23819-00-00

1
Out of stock

15

BRACKET, STRG LOWERLOWER

8E7-23868-00-00

1
Out of stock

16

BEARING, STRG LOWERLOWER

8E7-23875-00-00

1
Out of stock

17

BEARING, STEERING

(856-23812-00-00)

1
Out of stock

18

PIN, SPRING

91609-60040-00

1
Out of stock

19

BOLT(JA9)

90101-08691-00

—

$4.65

In stock

20

WASHER, LOCK 2

(8E7-23895-00-00)

1
Out of stock

21

ROD, STEERING RELAY

8F2-23821-00-00

1
Out of stock

22

NUT (682)

95380-10700-00

1

$5.78

In stock

23

NUT, HEXAGON (8A5)

90170-10186-00

—

$7.60

In stock

24

JOINT, UNIVERSAL 1

888-23841-91-00

1
Out of stock

25

JOINT, UNIVERSAL 2

888-23845-91-00

1
Out of stock

26

NUT, CASTLE

90171-10018-00

1
Out of stock

27

PIN, COTTER(6L5)

91490-25030-00

—

$2.85

In stock

28

ARM, OUTSIDE 1

(8F2-23851-00-00)

1
Out of stock

29

COLUMN, SKI 1

8G9-23853-00-00

1
Out of stock

30

WASHER, PLATE (3J6)

90201-100A1-00

—

$6.71

In stock

31

WASHER, WAVE (878)

90206-20037-00

—
Out of stock

32

WASHER, LOCK

90215-10096-00

1
Out of stock

33

NUT(3BM)

95314-10600-00

—

$1.74

In stock

34

BOLT, HEXAGON

97013-08030-00

—

$3.20

In stock

35

YBS67-8 WASHER, SPRING

92990-08100-00

—

$4.52

In stock

36

BOLT, HEXAGON DEEP RECESS

97D95-06016-00

1

$1.91

In stock

37

WASHER, LOCK

90215-06054-00

1
Out of stock
