1976 Yamaha SRX440 Shroud Diagram

← All diagrams

Find the part on the Shroud diagram for your 1976 Yamaha SRX440, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

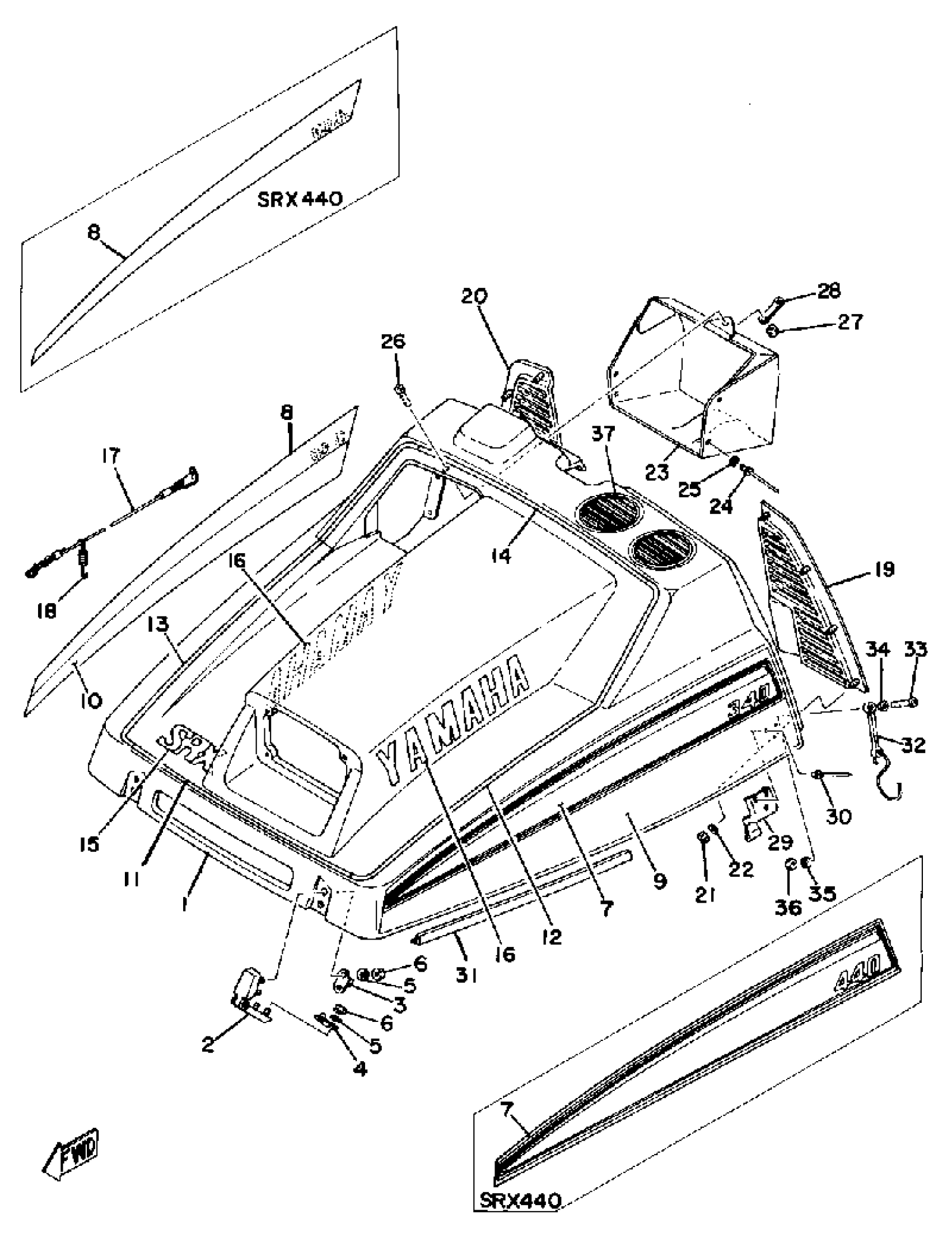

1976 Yamaha SRX440 Shroud Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

SHROUD ASSEMBLY

8F2-W7711-00-00

1
Out of stock

2

HINGE ASSEMBLY

(8A7-77140-00-00)

1
Out of stock

3

PLATE, BACK UP 1

8G6-77153-00-00

1
Out of stock

4

PLATE, BACK UP 2

878-77154-00-00

1
Out of stock

5

WASHER, PLAIN (646)

92990-06600-00

1

$2.48

In stock

6

NUT, HEXAGON

95380-06600-00

1

$4.13

In stock

7

ORNAMENT 1

(8A7-77163-00-00)

1
Out of stock

7

ORNAMENT 1

(8A8-77163-00-00)

1
Out of stock

8

ORNAMENT 2

(8A7-77164-00-00)

1
Out of stock

8

ORNAMENT 2

(8A8-77164-00-00)

1
Out of stock

9

ORNAMENT 4

(8A7-77113-00-00)

1
Out of stock

10

ORNAMENT 5

(8A7-77114-00-00)

1
Out of stock

11

STRIPE 2

(8A7-77282-00-00)

1
Out of stock

12

STRIPE 3

(8A7-77283-01-00)

1
Out of stock

13

STRIPE 4

(8A7-77284-01-00)

1
Out of stock

14

STRIPE 5

(8A7-77285-00-00)

1
Out of stock

15

EMBLEM 6

(8A7-77356-00-00)

1
Out of stock

16

EMBLEM 7

(8A7-77357-00-00)

1
Out of stock

17

STOPPER, SHROUD

(8A7-77118-00-00)

1
Out of stock

18

CLAMP,ROD

838-77159-00-00

—

$3.49

In stock

19

LOUVER 1

8A5-77131-01-00

1
Out of stock

20

LOUVER 2

8A5-77132-01-00

1
Out of stock

21

NUT, SELF-LOCKING

90185-05028-00

1
Out of stock

22

WASHER, PLATE 8067717800

90201-05029-00

—

$5.12

In stock

23

DUCT

(8K2-77194-00-00)

1
Out of stock

24

RIVET, BLIND

90267-489UJ-00

1
Out of stock

25

WASHER, PLATE

90201-04027-00

—
Out of stock

26

SCREW, BIND

98903-05016-00

1
Out of stock

27

NUT, U

95617-05100-00

—

$6.68

In stock

28

WASHER, SPECIAL

(8A7-77116-00-00)

1
Out of stock

29

CLAMP 2

8A5-77136-01-00

1
Out of stock

30

RIVET, BLIND

90267-40936-00

1

$1.38

In stock

31

STRIP, WEATHER 1

(8A7-77161-01-00)

1
Out of stock

32

LATCH ASSEMBLY

856-77170-00-00

1
Out of stock

33

SCREW, BIND(J39)

98980-06030-00

—

$5.62

In stock

34

WASHER, PLATE

90201-06380-00

—

$0.57

In stock

35

WASHER, PLAIN (646)

92990-06600-00

1

$2.48

In stock

36

NUT, SELF-LOCKING

95617-06100-00

—

$2.32

In stock

37

LOUVER 3

8A7-77133-00-00

1
Out of stock
