1976 Yamaha SRX440 Radiator Diagram

← All diagrams

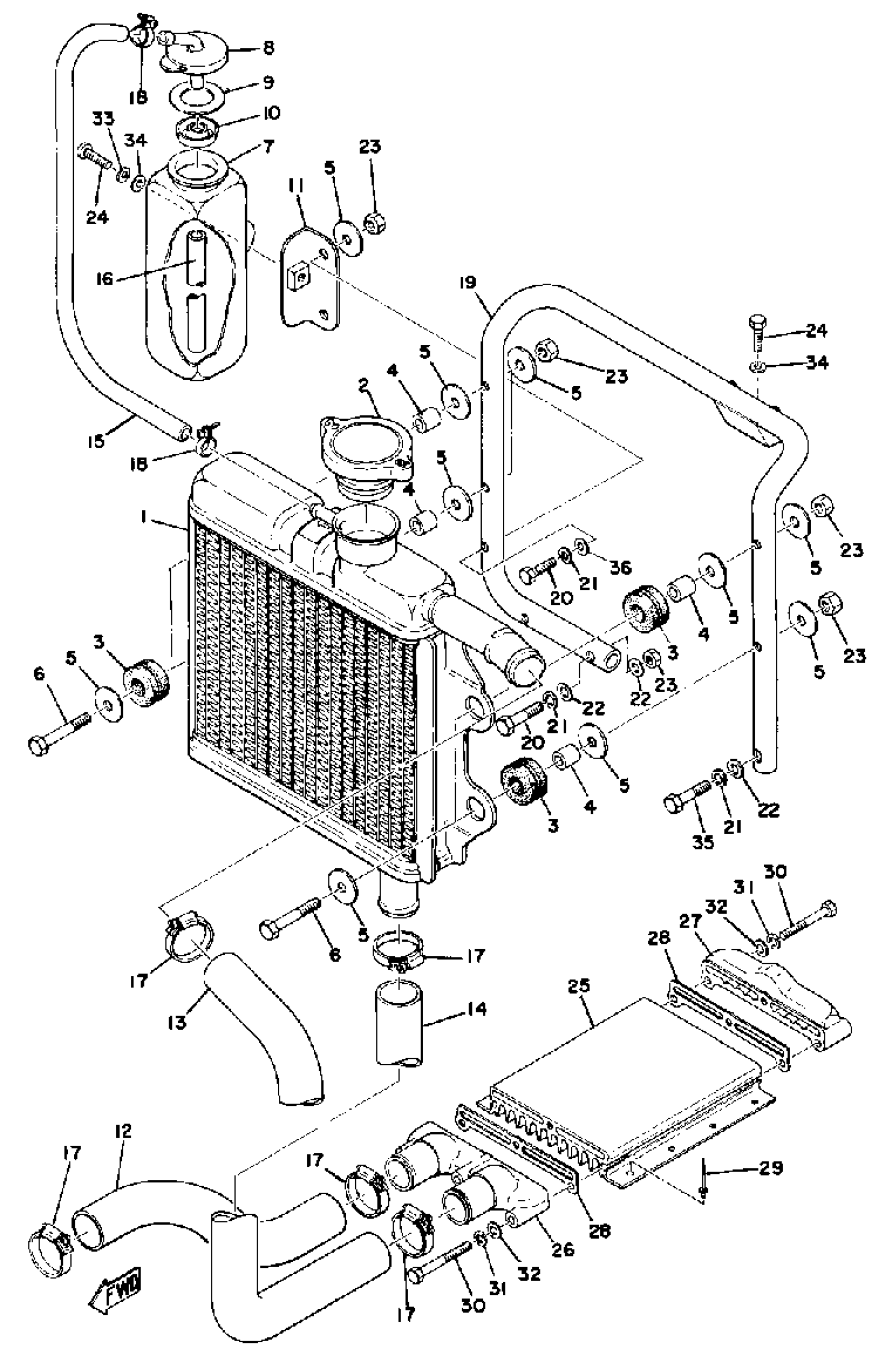

Find the part on the Radiator diagram for your 1976 Yamaha SRX440, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1976 Yamaha SRX440 Radiator Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

RADIATOR ASSEMBLY

8A7-12460-00-00

1
Out of stock

2

CAP, RADIATOR

11H-12462-00-00

1
Out of stock

3

GROMMET(87A)

90480-20527-00

1

$10.06

In stock

4

COLLAR (8A7)

90387-06518-00

1
Out of stock

5

WASHER, PLATE

90201-06747-00

1

$6.17

In stock

6

BOLT (682)

97095-06040-00

1

$2.36

In stock

7

TANK, RECOVERY

8A7-21871-00-00

1
Out of stock

8

CAP

8A2-21875-00-00

1
Out of stock

9

GASKET, CAP

8A2-16716-00-00

1
Out of stock

10

STOPPER

8A2-21872-00-00

1
Out of stock

11

BRACKET, RECOV TANK

(8A7-21873-01-00)

1
Out of stock

12

PIPE 5

(8A7-12485-00-00)

1
Out of stock

13

PIPE 2

8A7-12482-00-00

1
Out of stock

14

PIPE 3

(8A7-12483-01-00)

1
Out of stock

15

HOSE

90445-11306-00

1
Out of stock

16

HOSE

90445-11700-00

1
Out of stock

17

CLAMP, HOSE

90460-38292-00

1
Out of stock

18

CLIP

90467-100A1-00

—
Out of stock

19

STAY, RADIATOR

(8A7-12464-00-00)

1
Out of stock

20

BOLT, HEXAGON

97017-06025-00

—

$2.98

In stock

21

WASHER, SPRING

92995-06100-00

1

$2.99

In stock

22

—

$6.58

In stock

23

NUT, SELF-LOCKING

95617-06100-00

—

$2.32

In stock

24

BOLT(JA9)

90101-08691-00

—

$4.65

In stock

25

EXCHANGER, HEAT

(8A7-12466-00-00)

1
Out of stock

26

JOINT 1

(8A7-12469-00-00)

1
Out of stock

27

JOINT

(8A7-12479-00-00)

1
Out of stock

28

GASKET 1

(8A7-12474-00-00)

1
Out of stock

29

RIVET, BLIND (8H4)

90267-48053-00

—

$2.31

In stock

30

BOLT, STAINLESS

97370-05050-00

1
Out of stock

31

YBS67-5 WASHER, SPRING

92990-05100-00

—
Out of stock

32

WASHER, PLAIN (646)

92990-05600-00

—
Out of stock

33

YBS67-8 WASHER, SPRING

92990-08100-00

—

$4.52

In stock

34

.. WASHER, PLATE

92990-08600-00

1

$2.36

In stock

35

BOLT, HEXAGON

97017-06030-00

—

$3.00

In stock

36

WASHER, PLATE

90201-06045-00

—

$6.18

In stock
