1976 Yamaha SRX440 Crank - Piston Diagram

← All diagrams

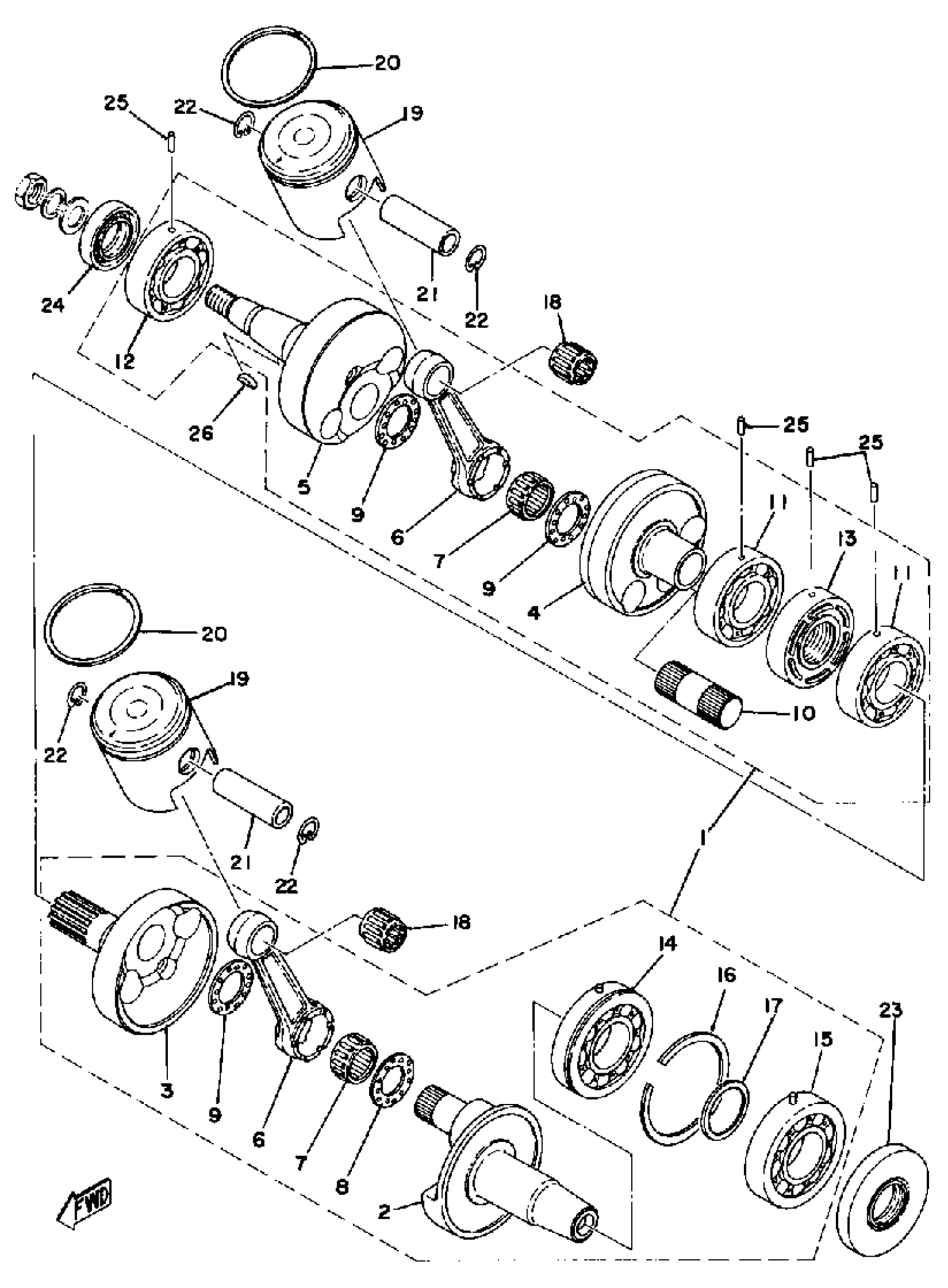

Find the part on the Crank - Piston diagram for your 1976 Yamaha SRX440, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1976 Yamaha SRX440 Crank - Piston Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

CRANKSHAFT ASSEMBLY

8A7-11400-00-00

1
Out of stock

2

CRANK 1

(8A7-11412-00-00)

1
Out of stock

3

. CRANK 2

8A7-11422-00-00

1
Out of stock

4

. CRANK 3

878-11432-00-00

1
Out of stock

5

. CRANK 4

8A7-11442-00-00

1
Out of stock

6

. ROD, CONNECTING (838-11651-00)

8A7-11651-00-00

1
Out of stock

7

BEARING

93310-424E8-00

1

$19.49

In stock

8

WASHER, CRANK PIN

8A7-11685-00-00

1

$10.68

In stock

9

WASHER (152-11685-00)

90209-24073-00

1

$10.08

In stock

10

PIN, CRANK 1

(878-11681-00-00)

1
Out of stock

11

BEARING(8V0)

93306-20633-00

1

$67.35

In stock

12

BEARING(8V0)

93306-20633-00

1

$67.35

In stock

13

. SEAL, LABYRINTH 1

8A7-11515-00-00

1
Out of stock

14

BEARING (8R6)

93306-30625-00

1

$76.42

In stock

15

BEARING (8R6)

93306-30625-00

1

$76.42

In stock

16

CIRCLIP, OUTER

93440-78011-00

1
Out of stock

17

WASHER (8H0)

90201-34683-00

—
Out of stock

18

—

$32.87

In stock

19

PISTON STD (8A7-11631-00-96)

8A7-11631-01-96

1
Out of stock

19

PISTON STD

8A8-11631-00-96

1
Out of stock

20

RING, PISTON STD

8A7-11611-09-00

1
Out of stock

20

RING, PISTON STD

8A8-11611-00-00

1
Out of stock

21

PIN, PISTON

818-11633-00-00

—

$28.05

In stock

21

PIN, PISTON

(8A8-11633-00-00)

1
Out of stock

22

CLIP 6041163400

93450-20026-00

—

$5.10

In stock

23

OIL SEAL (878).

93103-32095-00

—

$30.09

In stock

24

OIL SEAL(83R)

93103-32156-00

—

$26.08

In stock

25

PIN,DOWEL (168)

93604-12037-00

—
Out of stock

26

KEY, WOOD RUFF (324)

90280-05014-00

—

$7.82

In stock
