1976 Yamaha SRX440 Crankcase - Cylinder Diagram

← All diagrams

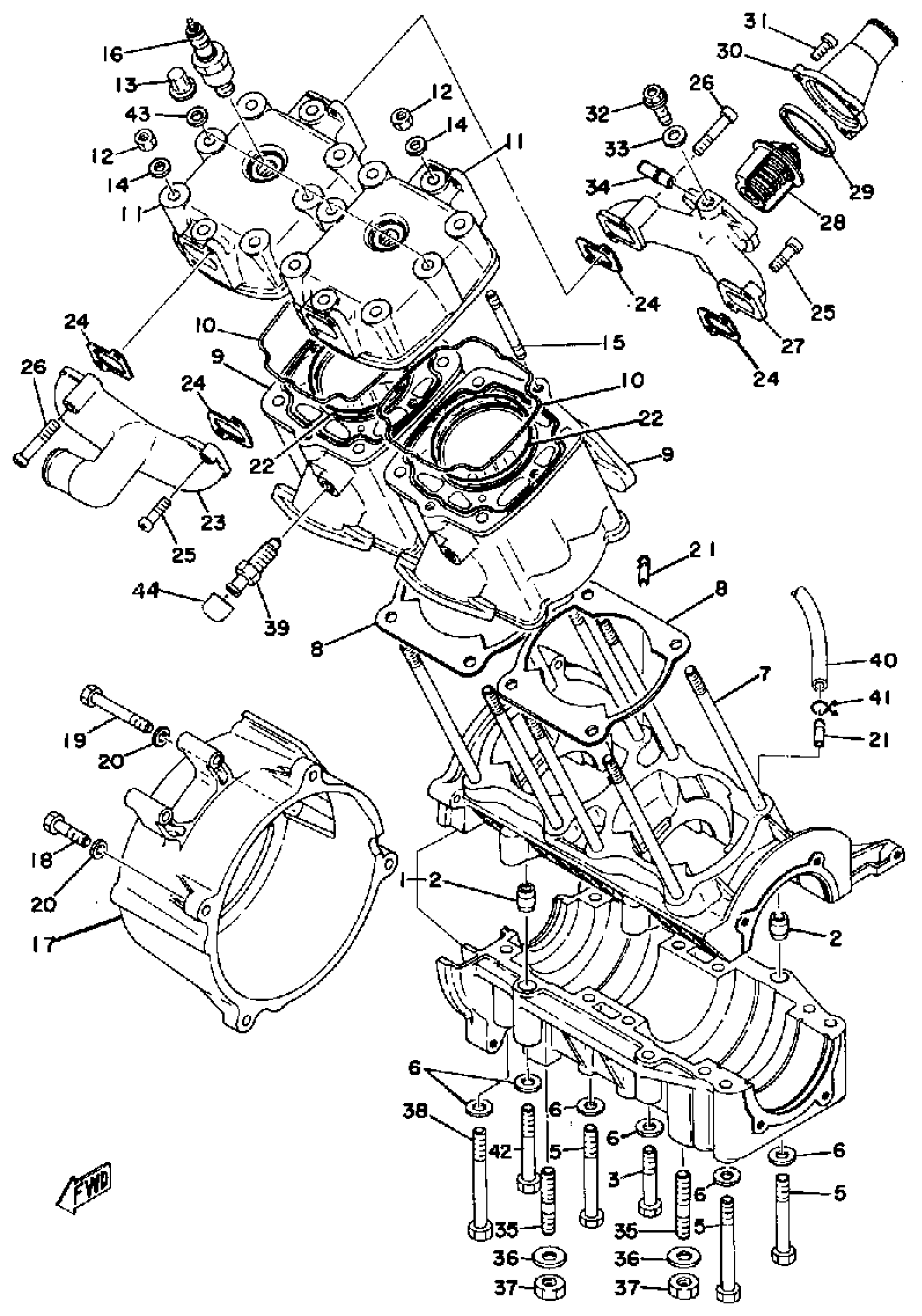

Find the part on the Crankcase - Cylinder diagram for your 1976 Yamaha SRX440, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1976 Yamaha SRX440 Crankcase - Cylinder Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

CRANKCASE ASSEMBLY

(8A7-15100-00-00)

1
Out of stock

1

CRANKCASE ASSEMBLY

(8A8-15100-00-00)

1
Out of stock

2

PIN, DOWEL

99530-12016-00

1
Out of stock

3

BOLT, HEXAGON

97013-08050-00

—
Out of stock

4

BOLT, HEXAGON

97013-08055-00

1
Out of stock

5

BOLT (6K8)

97013-08075-00

1
Out of stock

6

.. WASHER, PLATE

92990-08600-00

1
Out of stock

7

BOLT, CYLINDER HOLDING 1

8G9-11361-00-00

1
Out of stock

8

GASKET,CYLINDER

8A7-11351-09-00

1
Out of stock

8

GASKET, CYLINDER

8A8-11351-09-00

1
Out of stock

9

CYLINDER 1

8A7-11311-00-00

1
Out of stock

9

CYLINDER 1

8A8-11311-00-00

1
Out of stock

10

GASKET, CYLINDER HEAD 1

8A7-11181-00-00

1
Out of stock

11

HEAD, CYLINDER 1

8A7-11111-00-00

1
Out of stock

11

HEAD, CYLINDER 1

(8A8-11111-00-00)

1
Out of stock

12

NUT, HOLDING (812-11171-00)

812-11171-00-00

1
Out of stock

13

NUT (F1ZR)

90179-08813-00

—
Out of stock

14

WASHER, PLATE (397)

90201-08100-00

—
Out of stock

15

BOLT, STUD 3

95617-08655-00

—
Out of stock

16

PLUG, SPARK (NGK BR-9EVX)

BR9-EIX00-00-00

1
Out of stock

17

COVER, CRANKCASE R

(8A7-15421-00-00)

1
Out of stock

18

BOLT, HEXAGON

97017-06030-00

—
Out of stock

19

BOLT(62J)

97013-06065-00

—
Out of stock

20

WASHER, PLAIN (646)

92990-06600-00

—
Out of stock

21

JOINT, BREATHER

J38-11116-00-00

—
Out of stock

22

O-RING

93210-69306-00

1
Out of stock

22

O-RING

93210-78307-00

1
Out of stock

23

JOINT

(8A7-12498-00-00)

1
Out of stock

24

GASKET, MANIFOLD

8A7-13556-09-00

1
Out of stock

25

SCREW PAN HEAD

98580-06020-00

—
Out of stock

26

SCREW, PAN HEAD (686)

98580-05035-00

1
Out of stock

27

CASE, THERMOSTAT

(8A7-11346-00-00)

1
Out of stock

28

THERMOSTAT

(8A7-12411-01-00)

1
Out of stock

29

SEAL, THERMOSTAT

8A7-12412-01-00

—
Out of stock

30

COVER, THERMOSTAT

8A7-12413-00-00

1
Out of stock

31

SCREW PAN HEAD

98580-06020-00

—
Out of stock

32

BOLT, FLANGE

95817-08012-00

—
Out of stock

33

GASKET

90430-08127-00

1
Out of stock

34

JOINT

8A7-12499-00-00

1
Out of stock

35

BOLT, STUD

90116-10132-00

1
Out of stock

36

WASHER, PLATE(8BV)

90201-100S7-00

—
Out of stock

37

NUT, SELF-LOCKING

90185-10030-00

1
Out of stock

38

BOLT,HEXAGON

97027-08080-00

—
Out of stock

39

COCK, DRAIN

8A7-12478-00-00

1
Out of stock

40

HOSE (L450)

90445-10144-00

—
Out of stock

41

CLIP

90467-090A2-00

—
Out of stock

42

BOLT(6TC)

97027-08070-00

—
Out of stock

43

WASHER, PLATE

90201-080L7-00

—
Out of stock

44

PLUG, WATER DRAIN

8A7-11374-00-00

1
Out of stock
