1973 Yamaha SR643B Shroud Diagram

← All diagrams

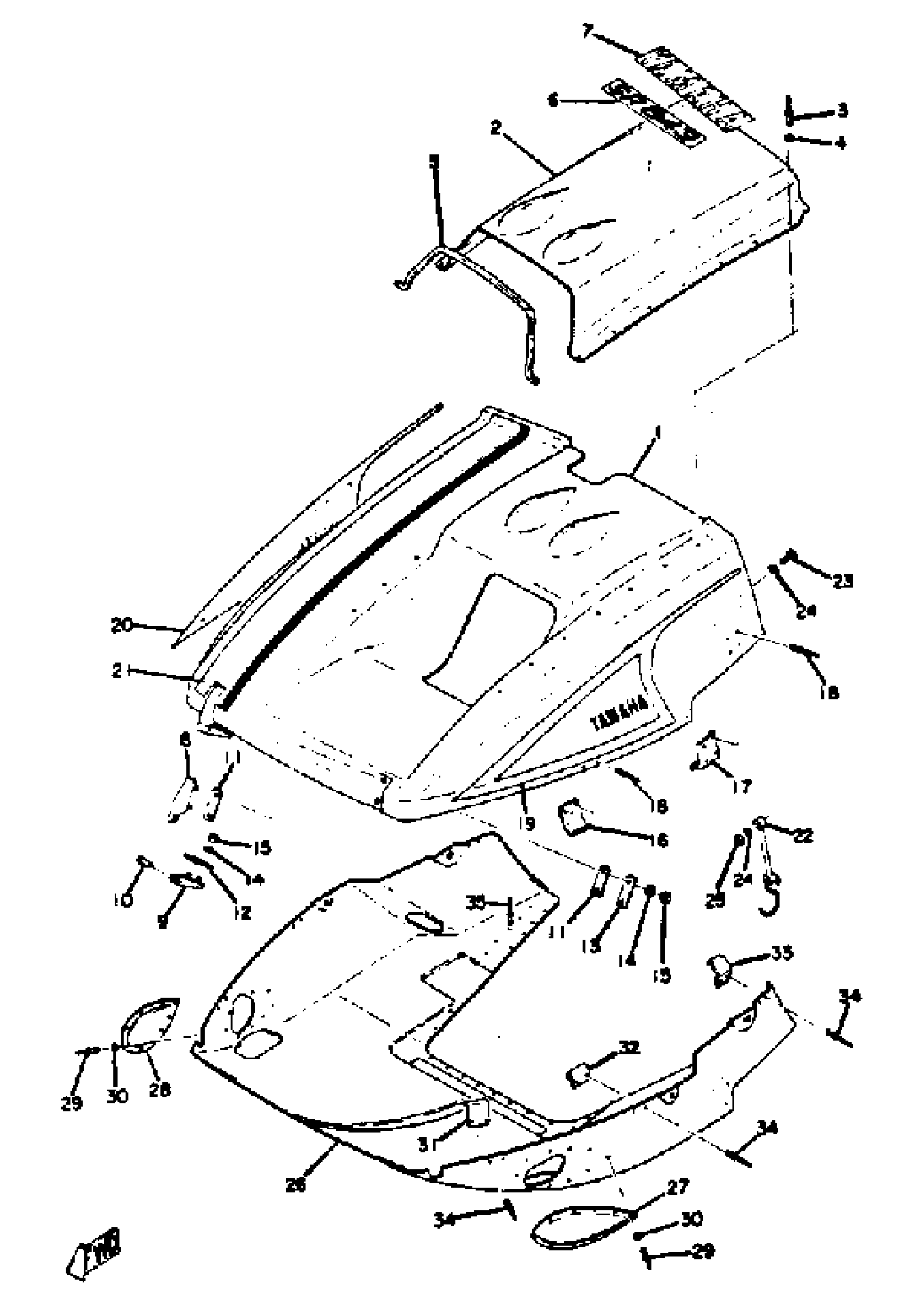

Find the part on the Shroud diagram for your 1973 Yamaha SR643B, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1973 Yamaha SR643B Shroud Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

SHROUD

(857-77111-00-00)

1
Out of stock

2

LOUVER 1

(856-77131-00-00)

1
Out of stock

3

RIVET, BLIND (8K1)

90267-40076-00

1
Out of stock

4

WASHER

90201-04015-00

—
Out of stock

5

TRIM 3

(856-77167-00-00)

1
Out of stock

6

EMBLEM 3

(858-77143-00-00)

1
Out of stock

7

EMBLEM 2

856-77142-00-00

1
Out of stock

8

HINGE 1

(856-77145-00-00)

1
Out of stock

9

HINGE 3

856-77147-00-00

1
Out of stock

10

PIN

90243-05003-00

1
Out of stock

11

DAMPER 1

(856-77198-00-00)

1
Out of stock

12

DAMPER 2

(856-77199-00-00)

1
Out of stock

13

PLATE, BACK UP 1

(856-77153-00-00)

1
Out of stock

14

WASHER, SPRING

92995-06100-00

1

$2.99

In stock

15

NUT, NYLON

95707-06300-00

1

$3.20

In stock

16

STAY 3

(856-77127-00-00)

1
Out of stock

17

STAY 4

(856-77128-00-00)

1
Out of stock

18

RIVET, BLIND (8K1)

90267-40076-00

1
Out of stock

19

ORNAMENT 1

856-77163-00-00

1
Out of stock

20

ORNAMENT 2

856-77164-00-00

1
Out of stock

21

ORNAMENT 3

856-77169-00-00

1
Out of stock

22

LATCH ASSEMBLY

856-77170-00-00

1
Out of stock

23

BOLT(JF7)

97080-06030-00

—

$3.45

In stock

24

YBS66-6 WASHER, PLAIN

92990-06200-00

—

$0.78

In stock

25

NUT, NYLON

95707-06300-00

1

$3.20

In stock

26

HOOD 1

(856-77121-00-00)

1
Out of stock

27

LOUVER 3

(856-77133-00-00)

1
Out of stock

28

LOUVER 4

(856-77134-00-00)

1
Out of stock

29

RIVET, BLIND (J10)

90267-40077-00

—
Out of stock

30

WASHER

90201-04015-00

—
Out of stock

31

GUIDE 2

(856-77124-00-00)

1
Out of stock

32

STAY 1

(856-77125-00-00)

1
Out of stock

33

GUIDE 1

(856-77123-00-00)

1
Out of stock

34

RIVET, BLIND (8K1)

90267-40076-00

1
Out of stock

35

RIVET, BLIND

90267-489UJ-00

1
Out of stock
