1973 Yamaha SR643B Carburetor Diagram

← All diagrams

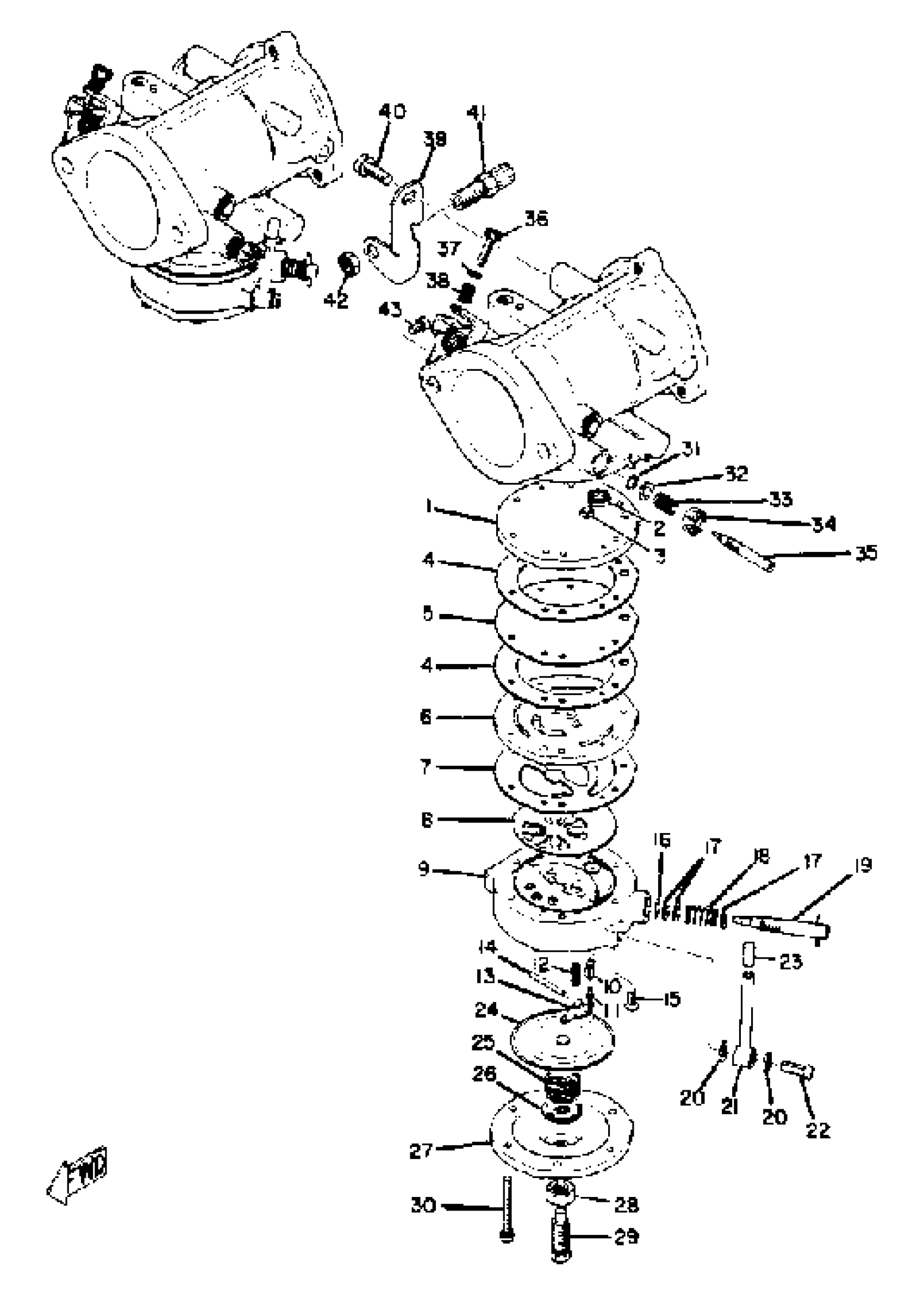

Find the part on the Carburetor diagram for your 1973 Yamaha SR643B, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1973 Yamaha SR643B Carburetor Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

CARBURETOR ASSEMBLY 1

(858-14501-00-00)

1
Out of stock

1

BODY, PUMP 1

(858-14542-00-00)

1
Out of stock

2

. O-RING

810-14561-00-00

1
Out of stock

2

CARBURETOR ASSEMBLY 2

(858-14502-00-00)

1
Out of stock

3

O-RING

(858-14561-00-00)

1
Out of stock

4

GASKET

838-14536-09-00

1

$11.29

In stock

5

. DIAPHRAGM, PUMP

834-14541-00-00

1
Out of stock

6

BODY, PUMP 1

(838-14542-00-00)

1
Out of stock

7

GASKET

834-14553-09-00

1
Out of stock

8

VALVE,CHECK

806-14552-01-00

1

$47.25

In stock

9

BODY, PUMP 2

(858-14543-00-00)

1
Out of stock

9

BODY, PUMP 3

(858-14544-00-00)

1
Out of stock

10

VALVE

838-14546-00-00

1

$39.18

In stock

11

. PIN, FLOAT

676-14186-00-00

1

$7.15

In stock

12

. SPRING

810-14556-00-00

1
Out of stock

13

ARM, FLOAT

(810-14547-00-00)

1
Out of stock

14

PIN, FLOAT ARM

(806-14548-00-00)

1
Out of stock

15

SCREW, FLAT

98707-03008-00

—

$5.62

In stock

16

. O-RING

824-14564-00-00

1
Out of stock

17

. WASHER

838-14597-00-00

1
Out of stock

18

SPRING, AJST SCREW

(821-14533-00-00)

1
Out of stock

19

SCREW, ADJUST

(858-14521-00-00)

1
Out of stock

20

. WASHER

806-14559-00-00

1
Out of stock

21

. PIPE, AIRVENT

810-14197-02-00

1
Out of stock

22

. SCREW

8A1-14592-00-00

1
Out of stock

23

. CAP, BLIND

853-24462-00-00

1
Out of stock

24

DIAPHRAGM

810-14545-00-00

—
Out of stock

25

SPRING

(858-14555-00-00)

1
Out of stock

26

SEAT, SPRING

(810-14136-00-00)

1
Out of stock

27

BODY, PUMP 3

(813-14544-00-00)

1
Out of stock

28

. NUT

95380-08700-00

1

$3.07

In stock

29

SCREW, STOP

(821-14565-00-00)

1
Out of stock

30

SCREW

(858-14567-00-00)

1
Out of stock

31

. O-RING

824-14563-00-00

1
Out of stock

32

. WASHER

838-14596-00-00

1
Out of stock

33

SPRING, AJST SCREW

(824-14531-00-00)

1
Out of stock

34

COLLAR

(847-14534-00-00)

1
Out of stock

35

SCREW, ADJUST

(857-14522-00-00)

1
Out of stock

36

SCREW, STOP

(806-14523-00-00)

1
Out of stock

37

WASHER

(857-14557-00-00)

1
Out of stock

38

SPRING, AJST SCREW

(806-14533-00-00)

1
Out of stock

39

BRACKET, THROTTLE

(857-14571-00-00)

1
Out of stock

40

SCREW

(844-14567-00-00)

1
Out of stock

41

. ADJUSTER, CABLE

857-14576-00-00

1
Out of stock

42

NUT

(857-14594-00-00)

1
Out of stock

43

SCREW, PAN HEAD(3XP)

98517-04006-00

1

$4.10

In stock
