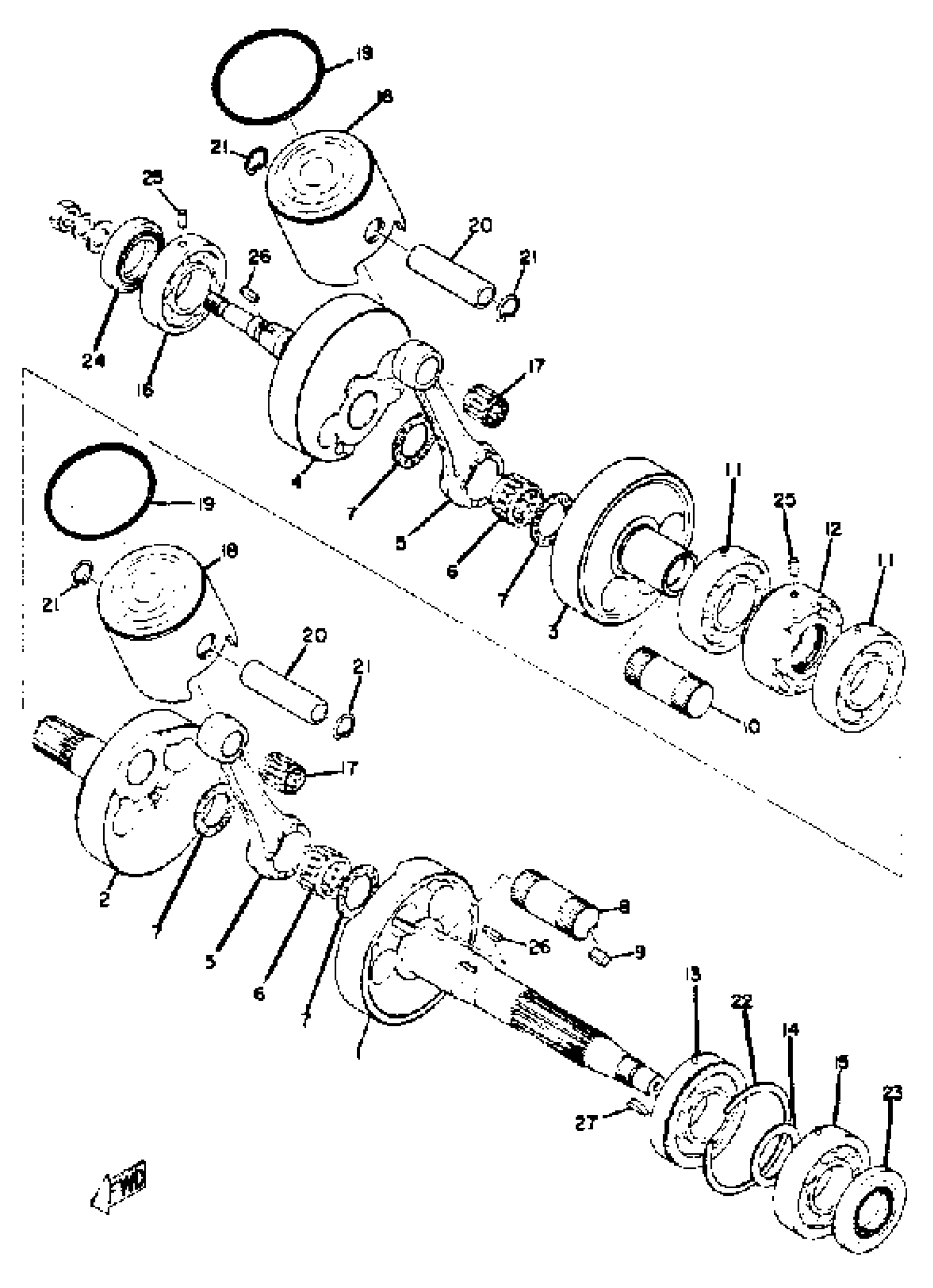

Find the part on the Crank - Piston diagram for your 1973 Yamaha SR643B, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1973 Yamaha SR643B Crank - Piston Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

CRANKSHAFT ASSEMBLY

(858-11400-00-00)

1
Out of stock

1

CRANK 1

(858-11412-00-00)

1
Out of stock

2

CRANK 2

(834-11422-00-00)

1
Out of stock

3

CRANK 3

(834-11432-00-00)

1
Out of stock

4

CRANK 4

(858-11442-00-00)

1
Out of stock

5

. ROD, CONNECTING

431-11651-00-00

1
Out of stock

6

BEARING, CYLINDRICAL(4JW)

93310-425P2-00

—

$66.55

In stock

7

WASHER 275116850000

90209-25085-00

1

$10.43

In stock

8

. PIN, CRANK 2

858-11683-00-00

1
Out of stock

9

KEY, SLIDING

(90281-07001-00)

1
Out of stock

10

PIN, CRANK 1

(858-11681-00-00)

1
Out of stock

11

. BEARING (B6207 C3 SPECIAL)

93306-20701-00

1
Out of stock

12

SEAL, LABYRINTH 1

(834-11515-00-00)

1
Out of stock

13

. BEARING

93306-20702-00

1
Out of stock

14

. SHIM

90564-35002-00

1
Out of stock

15

BEARING

(93306-20703-00)

1
Out of stock

16

BEARING(8V0)

93306-20633-00

—

$67.35

In stock

17

—

$32.87

In stock

18

PISTON STD

(858-11631-00-46)

1
Out of stock

19

RING, PISTON STD

(858-11611-00-00)

1
Out of stock

20

PIN, PISTON

(847-11633-00-00)

1
Out of stock

21

CLIP 6041163400

93450-20026-00

—

$5.10

In stock

22

CIRCLIP (834)

93440-80023-00

—
Out of stock

23

OIL SEAL, SW-TYPE

93103-35081-00

1
Out of stock

24

OIL SEAL(83R)

93103-32156-00

—

$26.08

In stock

25

PIN,DOWEL (168)

93604-12037-00

—
Out of stock

26

KEY, WOODRUFF

90280-05001-00

—

$10.68

In stock

27

KEY, WOODRUFF(3MA)

90280-04051-00

1
Out of stock
