1973 Yamaha SR643B Exhaust Diagram

← All diagrams

Find the part on the Exhaust diagram for your 1973 Yamaha SR643B, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

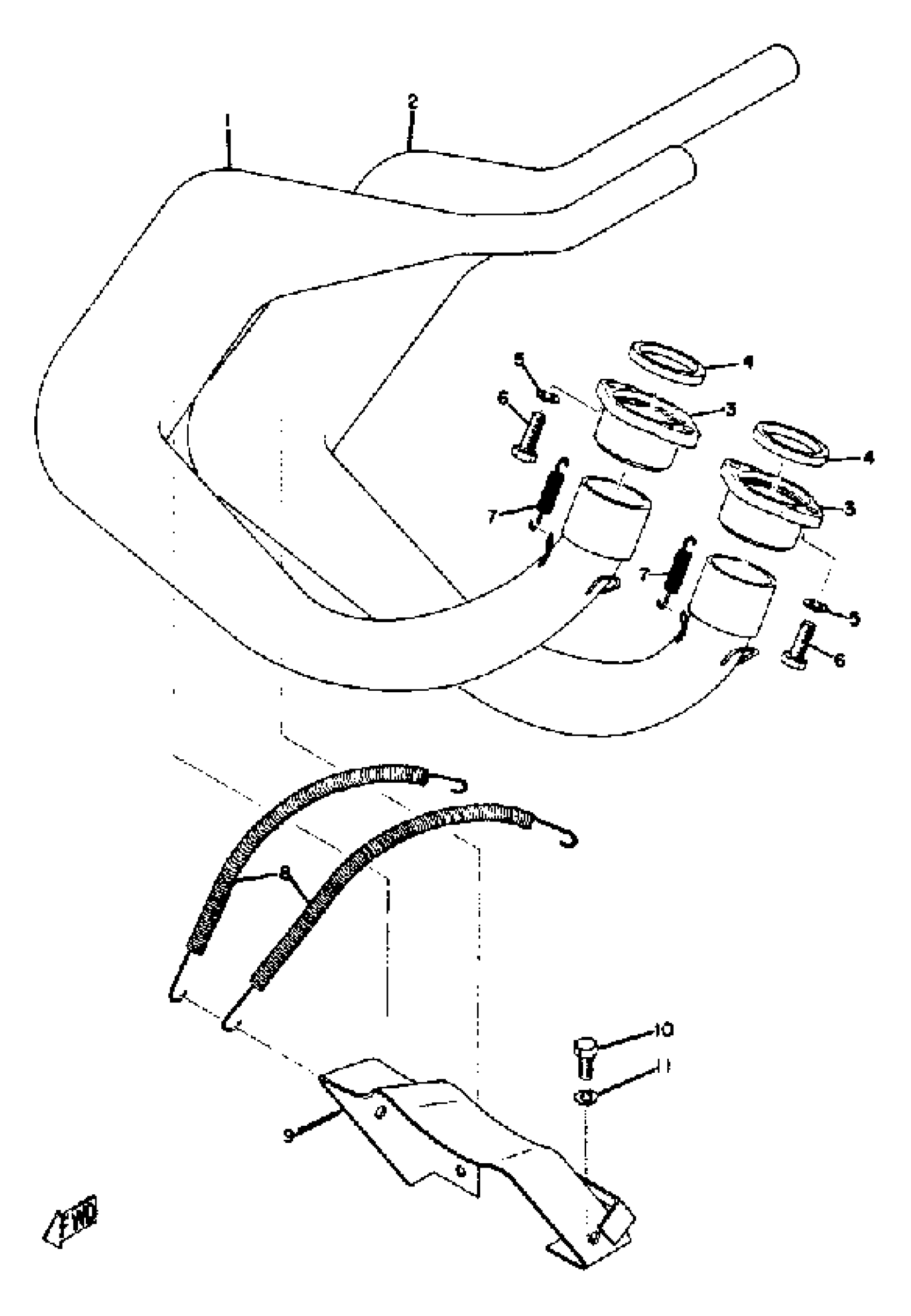

1973 Yamaha SR643B Exhaust Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

EXHAUST PIPE ASSEMBLY L

858-14610-00-00

1
Out of stock

2

EXHAUST PIPE ASSEMBLY R

(858-14620-00-00)

1
Out of stock

3

NUT, RING

(822-14612-00-00)

1
Out of stock

4

GASKET, EXHAUST PIPE

214-14613-09-00

1

$15.83

In stock

5

YBS67-8 WASHER, SPRING

92990-08100-00

1

$4.52

In stock

6

BOLT (682)

97013-08025-00

1

$6.80

In stock

7

SPACER

(90560-20040-00)

1
Out of stock

8

UNAVAILABLE IN PRICE BOOK

90506-16161-98

1
Out of stock

9

STAY, MUFFLER 1

(858-14771-01-00)

1
Out of stock

10

BOLT, HEXAGON

97013-08020-00

1

$1.54

In stock

11

YBS67-8 WASHER, SPRING

92990-08100-00

1

$4.52

In stock
