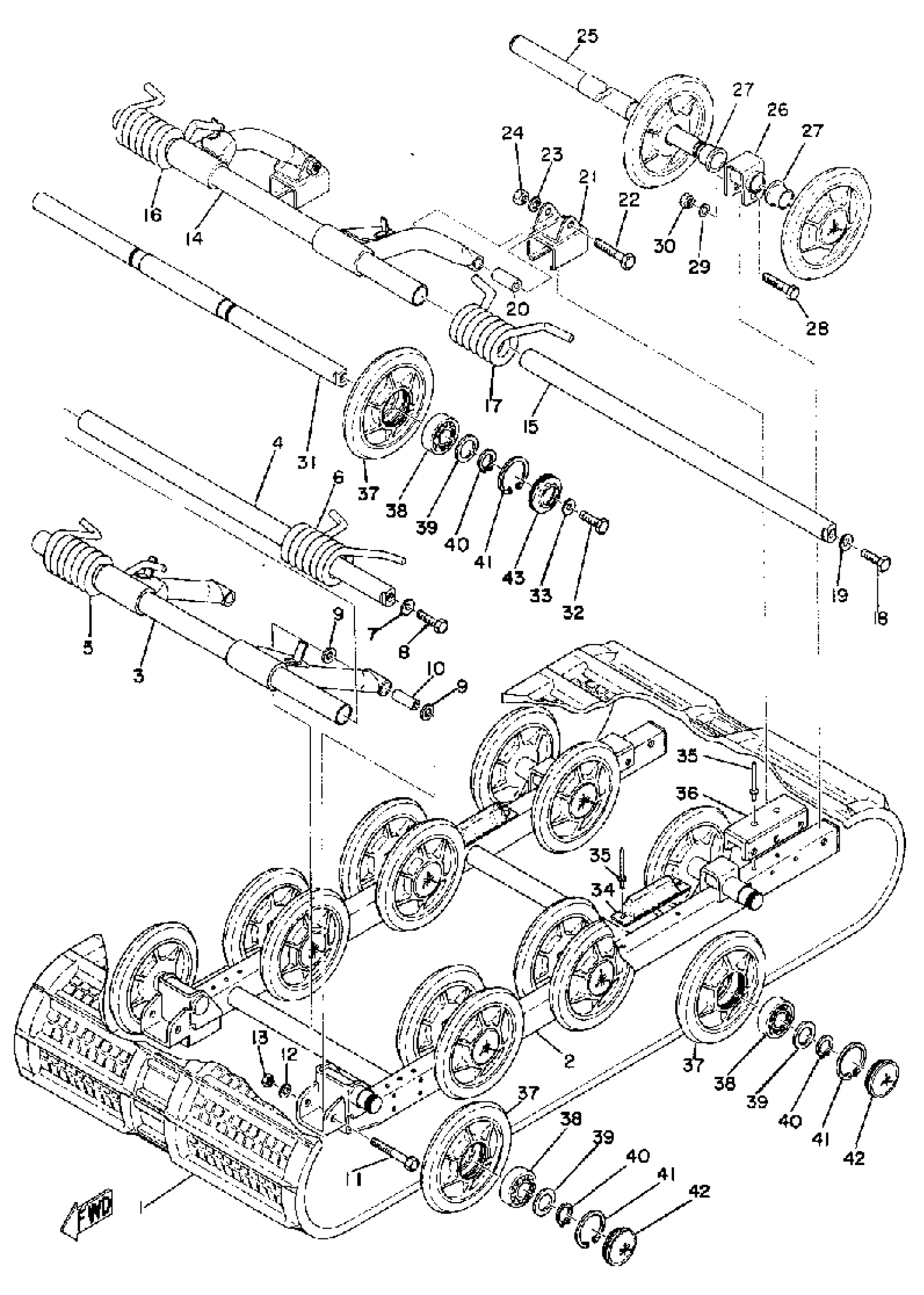

Find the part on the Track - Suspension Wheel diagram for your 1975 Yamaha SR643, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1975 Yamaha SR643 Track - Suspension Wheel Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

TRACK ASSEMBLY (847-47110-00)

863-47110-00-00

1
Out of stock

2

FRAME, SLIDING 1

(836-47411-00-00)

1
Out of stock

3

ARM, PIVOT 1

(836-47331-00-00)

1
Out of stock

4

SHAFT, PIVOT

807-47337-00-00

1
Out of stock

5

SPRING, TORSION

(90508-99127-00)

1
Out of stock

6

SPRING, TORSION

(90508-99109-00)

1
Out of stock

7

SPRING, BELLEVILLE

(829-16119-00-00)

1
Out of stock

8

BOLT, HEXAGON

97013-08030-00

1

$3.20

In stock

9

WASHER, PLAIN

92990-08200-00

1

$2.56

In stock

10

COLLAR

(90387-08048-00)

1
Out of stock

11

BOLT, HEXAGON

97013-08055-00

1

$3.25

In stock

12

YBS67-8 WASHER, SPRING

92990-08100-00

1

$4.52

In stock

13

NUT(6L2)

95333-08600-00

1

$3.20

In stock

14

ARM, PIVOT 2

(836-47332-00-00)

1
Out of stock

15

SHAFT, PIVOT

807-47337-00-00

1
Out of stock

16

SPRING, TORSION

(90508-99128-00)

1
Out of stock

17

SPRING, TORSION

(90508-11110-00)

1
Out of stock

18

BOLT

(90101-08024-00)

1
Out of stock

19

SPRING, BELLEVILLE

(829-16119-00-00)

1
Out of stock

20

COLLAR

(90387-08048-00)

1
Out of stock

21

FRAME, SLIDING 1

(829-47411-00-00)

1
Out of stock

22

BOLT

97013-08045-00

—
Out of stock

23

YBS67-8 WASHER, SPRING

92990-08100-00

1

$4.52

In stock

24

NUT(6L2)

95333-08600-00

1

$3.20

In stock

25

BAR, SUSPENSION

(836-47451-00-00)

1
Out of stock

26

STAY 1

(836-47565-00-00)

1
Out of stock

27

COLLAR

(90387-20164-00)

1
Out of stock

28

BOLT

97014-08040-00

—

$5.26

In stock

29

YBS67-8 WASHER, SPRING

92990-08100-00

1

$4.52

In stock

30

NUT(6L2)

95333-08600-00

1

$3.20

In stock

31

SHAFT 1

(836-47465-00-00)

1
Out of stock

32

BOLT

(90101-08024-00)

1
Out of stock

33

SPRING, BELLEVILLE

(829-16119-00-00)

1
Out of stock

34

DAMPER 1

(829-47456-00-00)

1
Out of stock

35

RIVET 1

(829-77155-00-00)

1
Out of stock

36

SEAT, SLIDING 1

(829-47431-00-00)

1
Out of stock

37

SUSPENSION WHEEL COMP

885-47320-01-00

—

$67.65

In stock

38

BEARING(8AB)

93306-00444-00

—

$35.70

In stock

39

WASHER PLATE 820473590000

90201-20272-00

—

$5.88

In stock

40

CIRCLIP(1AR)

99009-20400-00

—
Out of stock

41

CIRCLIP(5U8)

99009-42500-00

—

$6.77

In stock

42

CAP, WHEEL

818-47317-01-00

1
Out of stock

43

CAP, WHEEL

(829-47317-00-00)

1
Out of stock
