1975 Yamaha SR643 Secondary Sheave Diagram

← All diagrams

Find the part on the Secondary Sheave diagram for your 1975 Yamaha SR643, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

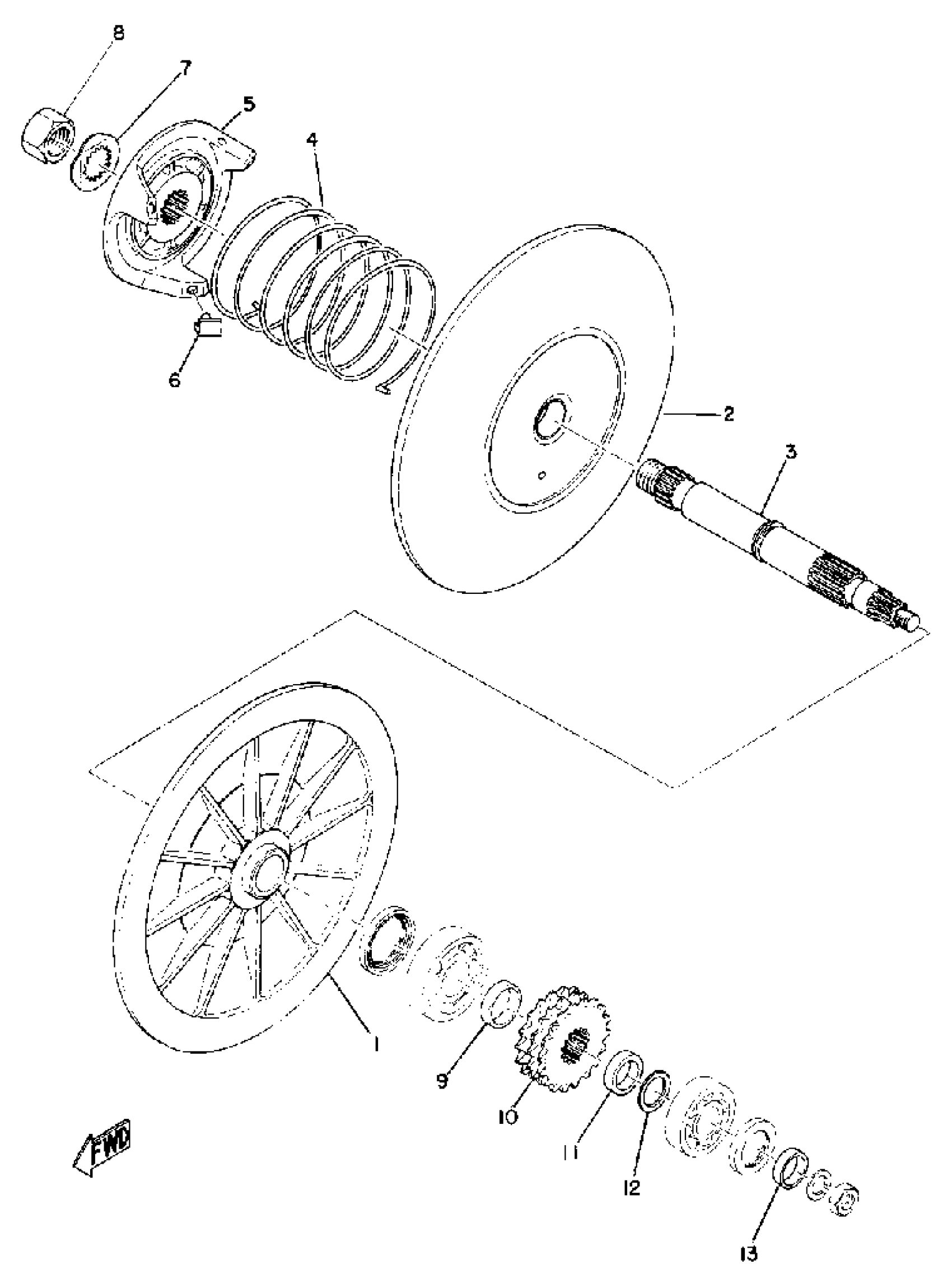

1975 Yamaha SR643 Secondary Sheave Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

SEC FXD SHV

(836-17660-00-00)

1
Out of stock

2

SEC SLIDING SHEAVE

(836-17670-00-00)

1
Out of stock

3

SHAFT, SECONDARY

(836-17681-00-00)

1
Out of stock

4

SPRING, TORSION

(90508-45081-00)

1
Out of stock

5

SEAT, SEC SPRING

(836-17684-00-00)

1
Out of stock

6

SHOE, RAMP

801-17688-10-00

1

$4.15

In stock

7

WASHER, LOCK

(90215-21023-00)

1
Out of stock

8

NUT, SPEC''L SHAPE

(90179-20021-00)

1
Out of stock

9

COLLAR

(90387-25196-00)

1
Out of stock

10

SPRKT, CHAIN DR 20T (20T)

829-17682-00-00

1
Out of stock

10

SPRKT, CHAIN DR 16T (16T)

829-17682-60-00

1
Out of stock

10

SPRKT, CHAIN DR 17T (17T)

829-17682-70-00

1
Out of stock

10

SPRKT, CHAIN DR 18T (18T)

829-17682-80-00

1
Out of stock

10

SPRKT, CHAIN DR 19T (878-17682-90) (19T)

829-17682-90-00

1
Out of stock

11

COLLAR, DISTANCE 3

(829-17695-00-00)

1
Out of stock

12

SHIM, CRANK 1

136-11561-00-03

1
Out of stock

12

SHIM, CRANK 1

136-11561-00-05

1
Out of stock

12

SHIM, CRANK 1

136-11561-00-07

1
Out of stock

13

COLLAR

(90387-20152-00)

1
Out of stock
