1975 Yamaha SR643 Primary Sheave Diagram

← All diagrams

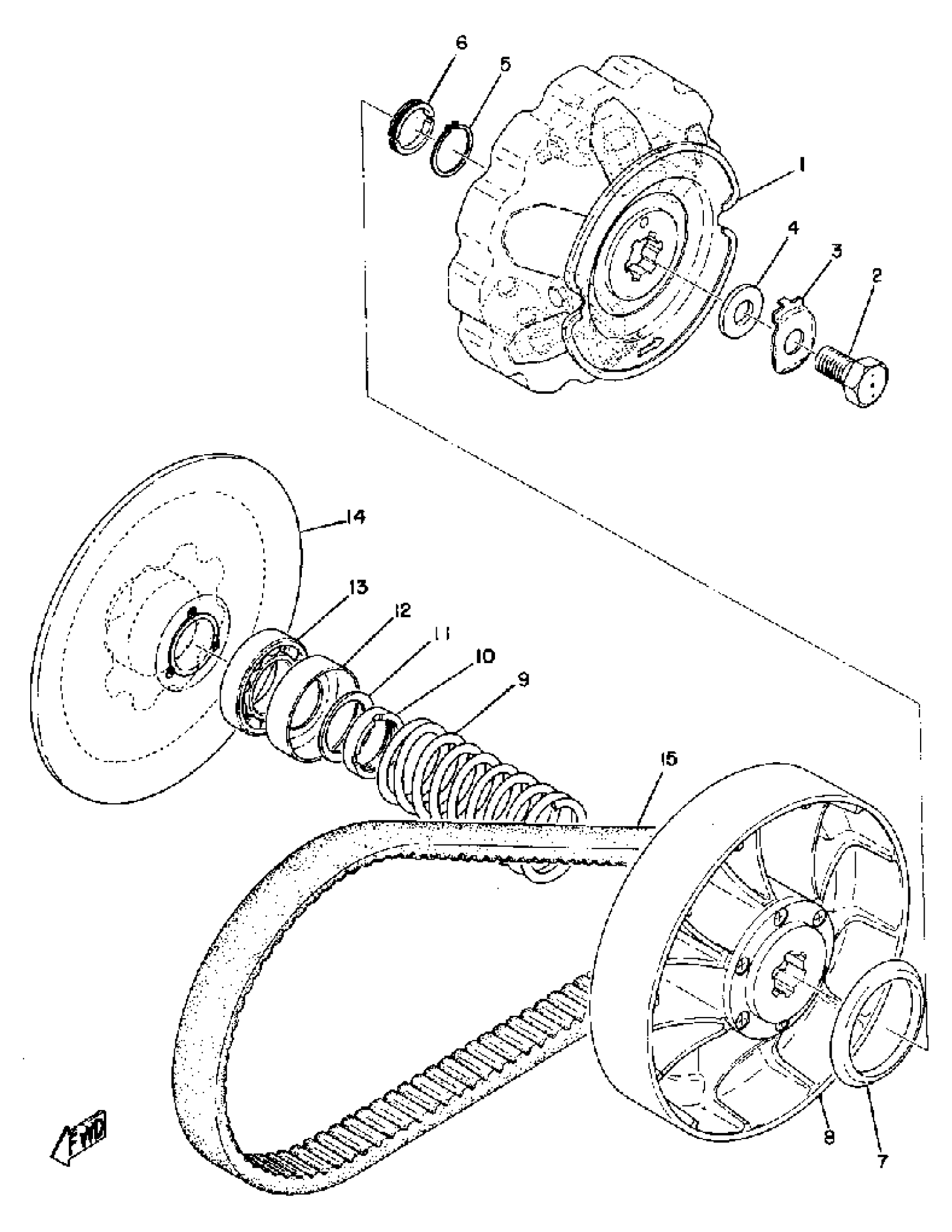

Find the part on the Primary Sheave diagram for your 1975 Yamaha SR643, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1975 Yamaha SR643 Primary Sheave Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

PRI. SHEAVE CAP

836-W1762-01-00

1
Out of stock

2

BOLT

(90109-14082-00)

1
Out of stock

3

WASHER, LOCK

835-17646-00-00

1
Out of stock

4

WASHER, PLATE(3FC)

90201-142M6-00

1
Out of stock

5

CIRCLIP(4A6)

99009-30400-00

1

$6.55

In stock

6

COLLAR

(835-17645-00-00)

1
Out of stock

7

CAM

(836-17623-00-00)

1
Out of stock

8

PRI SLIDG SHEAVE

(836-17620-00-00)

1
Out of stock

9

SPRING, COMPRESSION

(90501-60181-00)

1
Out of stock

10

NUT, SPEC''L SHAPE (835-17642-00)

90179-30091-00

1
Out of stock

11

WASHER, CONICAL SPR (835-17648-00)

90208-30004-00

1
Out of stock

12

SEAT, SPRING

(836-17644-00-00)

1
Out of stock

13

BEARING

(93306-00603-00)

1
Out of stock

14

PRI FIXED SHEAVE

(836-17610-00-00)

1
Out of stock

15

V-BELT

820-17641-01-00

1

$33.66

In stock
← Front Axle Pump Gear Unit →
