1975 Yamaha SR643 Track Drive Diagram

← All diagrams

Find the part on the Track Drive diagram for your 1975 Yamaha SR643, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

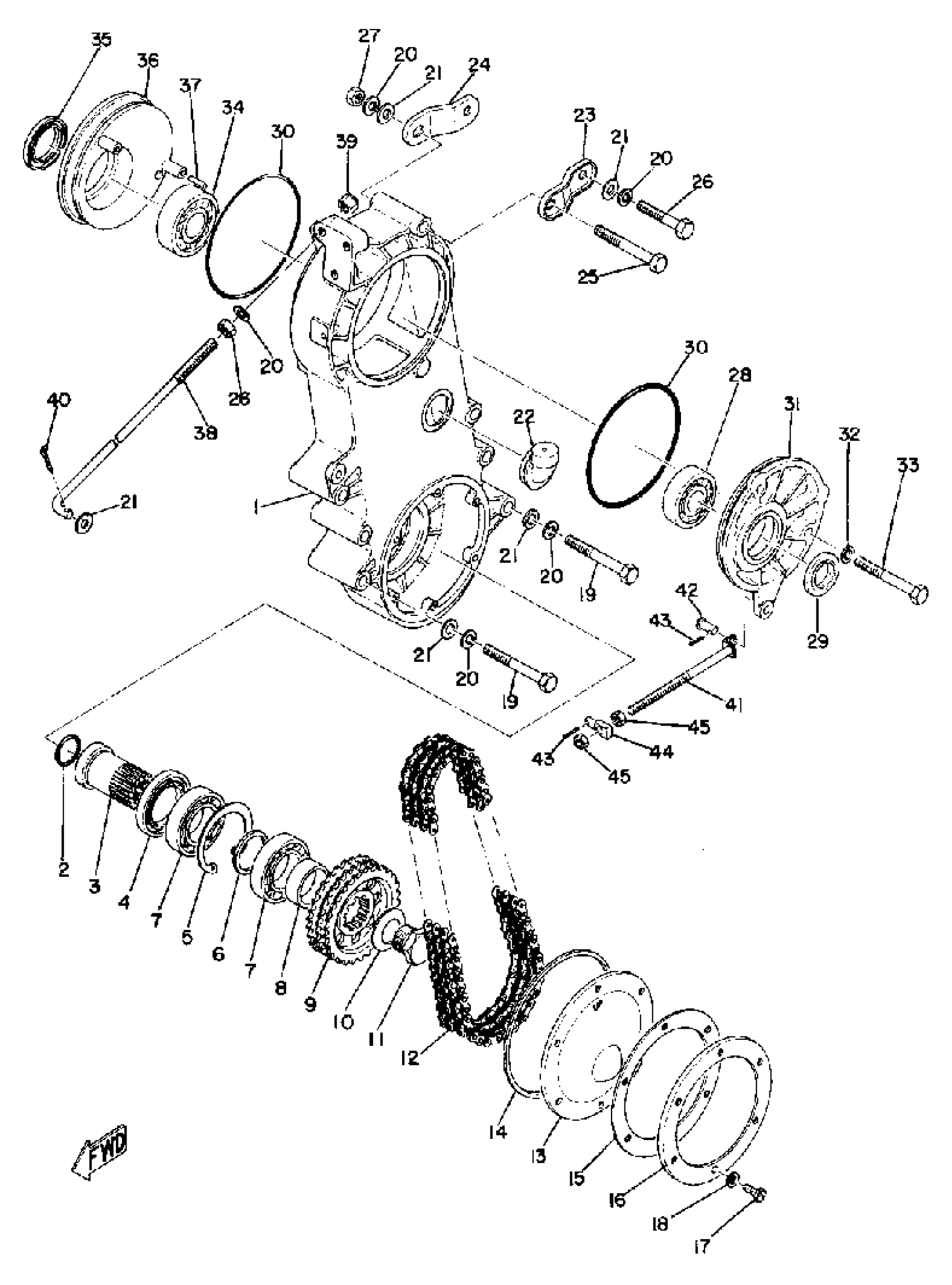

1975 Yamaha SR643 Track Drive Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

HOUSING, CHAIN

(835-47541-00-00)

1
Out of stock

2

O-RING (437)

93210-24235-00

1

$5.72

In stock

3

JOURNAL 1

(835-47571-00-00)

1
Out of stock

4

OIL SEAL, SD-TYPE

(93102-40101-00)

1
Out of stock

5

CIRCLIP(MF1)

99009-62500-00

1

$6.23

In stock

6

SPACER

90560-35050-00

1
Out of stock

7

BEARING (B6007)

93306-00701-00

1
Out of stock

8

COLLAR

(90387-35207-00)

1
Out of stock

9

SPROCKET, CHN DRVN

(829-47548-30-00)

1
Out of stock

9

SPROCKET, CHN DRVN

(829-47548-40-00)

1
Out of stock

9

SPROCKET, CHN DRVN

(829-47548-50-00)

1
Out of stock

10

SPRING, BELLEVILLE

821-47582-00-00

1
Out of stock

11

BOLT (802-47553-00)

90109-24202-00

1
Out of stock

12

CHAIN

(94850-35084-00)

1
Out of stock

12

CHAIN

(94850-35084-00)

1
Out of stock

13

CAP, HOUSING

(835-47543-00-00)

1
Out of stock

14

RING, HOUSING

(806-47558-00-00)

1
Out of stock

15

GASKET

821-47544-00-00

1
Out of stock

16

PLATE

(821-47591-00-00)

1
Out of stock

17

SCREW

90143-05004-00

—

$2.20

In stock

18

WASHER, SEAL

90210-05005-00

1
Out of stock

19

BOLT(6TC)

97027-08070-00

—

$6.88

In stock

20

YBS67-8 WASHER, SPRING

92990-08100-00

—

$4.52

In stock

21

WASHER, PLAIN

92990-08200-00

1

$2.56

In stock

22

CAP 2

JN3-47559-01-00

1
Out of stock

23

STAY 1

(820-47565-00-00)

1
Out of stock

24

STAY 2

(820-47566-00-00)

1
Out of stock

25

BOLT (6K8)

97013-08075-00

—

$5.66

In stock

26

BOLT, HEXAGON

97013-08050-00

—

$6.82

In stock

27

NUT(6L2)

95333-08600-00

—

$3.20

In stock

28

—

$54.91

In stock

29

OIL SEAL (25X40X5-101)

93102-25017-00

—

$4.20

In stock

30

UNAVAILABLE IN PRICE BOOK

832-11131-09-00

1
Out of stock

31

HOUSING, SEC SHAFT

(829-47561-00-00)

1
Out of stock

32

WASHER (821)

90210-08002-00

—

$5.68

In stock

33

BOLT(6TC)

97027-08070-00

—

$6.88

In stock

34

BEARING (8R9)

93306-30536-00

—

$29.83

In stock

35

OIL SEAL, SD-TYPE

93102-35056-00

1
Out of stock

36

HOUSING, SEC SHAFT

(829-47562-00-00)

1
Out of stock

37

PIN, DOWEL(4SS)

93604-18251-00

1
Out of stock

38

BAR, TENSION

(836-47585-00-00)

1
Out of stock

39

NUT, SELF-LOCKING (3Y2)

90185-08089-00

—

$7.31

In stock

40

PIN, COTTER

91490-30030-00

—

$7.15

In stock

41

BOLT, SEC HOUSING

(829-47567-00-00)

1
Out of stock

42

PIN, CLEVIS

91701-06014-00

1

$1.38

In stock

43

PIN, COTTER

91490-20025-00

—

$1.31

In stock

44

PIN, SPEC''L SHAPE

(90249-06013-00)

1
Out of stock

45

NUT, HEXAGON

95380-06600-00

1

$4.13

In stock
