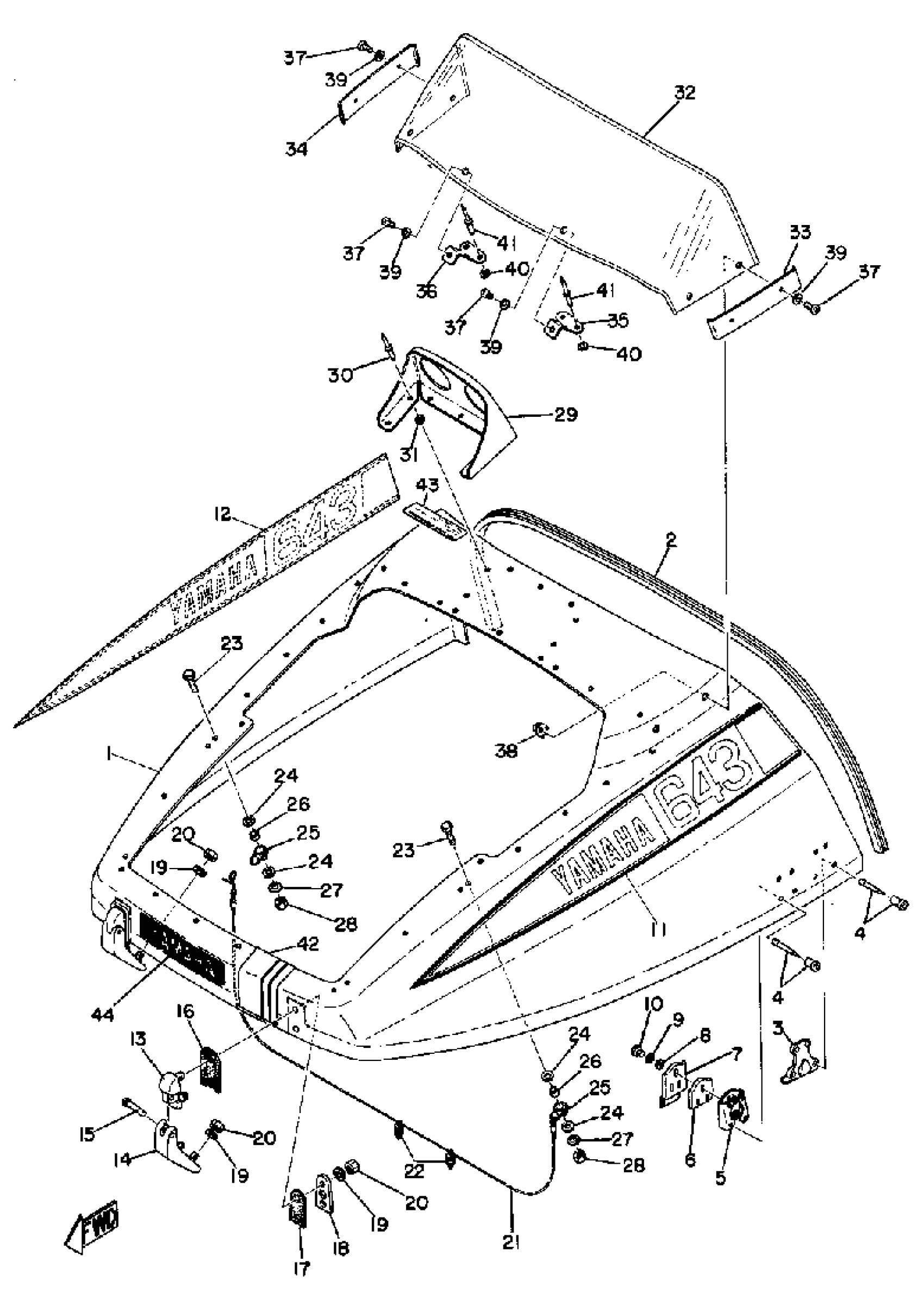

Find the part on the Shroud diagram for your 1975 Yamaha SR643, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1975 Yamaha SR643 Shroud Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

SHROUD

(836-77111-00-00)

1
Out of stock

2

TRIM 2

(835-77166-00-00)

1
Out of stock

3

. BODY, LATCH 1

806-77171-00-00

1
Out of stock

4

RIVET 1

(820-77155-00-00)

1
Out of stock

5

CLAMP 4

810-77138-00-00

1
Out of stock

6

WASHER 2

810-77179-00-00

1
Out of stock

7

CLAMP 2

810-77136-00-00

1
Out of stock

8

WASHER, PLATE 8067717800

90201-05029-00

1

$5.12

In stock

9

YBS67-5 WASHER, SPRING

92990-05100-00

1
Out of stock

10

BOLT, HEXAGON

97013-05010-00

1

$0.85

In stock

11

ORNAMENT 1

(836-77163-00-00)

1
Out of stock

12

ORNAMENT 2

(836-77164-00-00)

1
Out of stock

13

HINGE 1

(806-77145-00-00)

1
Out of stock

14

HINGE 3

806-77147-00-00

1
Out of stock

15

PIN (806-77157-00)

90243-05002-00

1
Out of stock

16

DAMPER 1

(806-77198-00-00)

1
Out of stock

17

DAMPER 2

810-77199-00-00

1
Out of stock

18

PLATE, BACK UP 1

810-77153-00-00

1
Out of stock

19

WASHER, SPRING

92995-06100-00

1

$2.99

In stock

20

NUT, HEXAGON

95380-06600-00

1

$4.13

In stock

21

STOPPER, SHROUD

(836-77118-00-00)

1
Out of stock

22

CLAMP, ROD

(806-77159-00-00)

1
Out of stock

23

BOLT, HEXAGON

(97326-05025-00)

1
Out of stock

24

WASHER, PLATE 8067717800

90201-05029-00

1

$5.12

In stock

25

HOLDER, ROD 1

(820-77139-00-00)

1
Out of stock

26

HOLDER, ROD 2

(820-77149-00-00)

1
Out of stock

27

WASHER(3SX)

92907-05100-00

—

$6.18

In stock

28

NUT, HEXAGON

95317-05600-00

—

$1.10

In stock

29

PANEL, INSTRUMENT

(836-77712-00-00)

1
Out of stock

30

RIVET, BLIND

90267-40029-00

—

$6.68

In stock

31

—

$2.62

In stock

32

WINDSHIELD

(836-77210-00-00)

1
Out of stock

33

TRIM, LOWER

(836-77214-00-00)

1
Out of stock

34

TRIM 3

(836-77215-00-00)

1
Out of stock

35

BRACKET, WNDSHLD L

(836-77221-00-00)

1
Out of stock

36

BRACKET, WNDSHLD R

(836-77222-00-00)

1
Out of stock

37

SCREW, BINDING

98907-05016-00

—

$6.18

In stock

38

NUT, T (802-77217-00)

90180-05004-00

1
Out of stock

39

WASHER PLATE 829771780000

90201-05033-00

—
Out of stock

40

—

$2.62

In stock

41

RIVET, BLIND

90267-40029-00

—

$6.68

In stock

42

ORNAMENT 3

(829-77169-00-00)

1
Out of stock

43

EMBLEM 1

(820-77141-00-00)

1
Out of stock

44

EMBLEM 7

(829-77357-00-00)

1
Out of stock
