1975 Yamaha SR643 Crankcase - Cylinder Diagram

← All diagrams

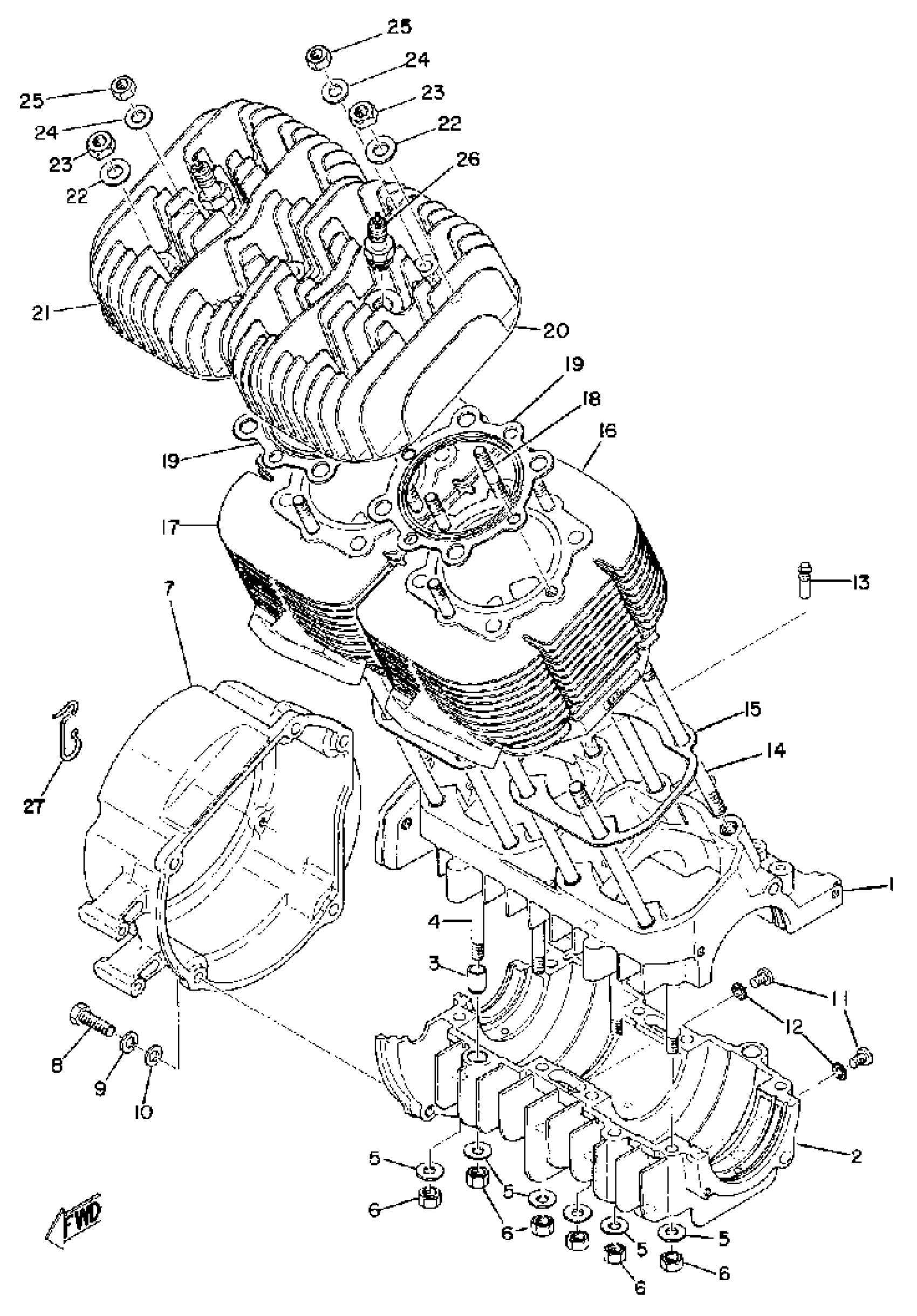

Find the part on the Crankcase - Cylinder diagram for your 1975 Yamaha SR643, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1975 Yamaha SR643 Crankcase - Cylinder Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

CRANKCASE ASSEMBLY

(834-15100-01-00)

1
Out of stock

2

UNAVAILABLE IN PRICE BOOK

834-15100-02-00

1
Out of stock

3

PIN, DOWEL

99530-12016-00

1

$4.12

In stock

4

BOLT, STUD (834-15192-00)

90116-08061-00

1
Out of stock

5

WASHER, PLAIN

92990-08200-00

1

$2.56

In stock

6

NUT(6L2)

95333-08600-00

1

$3.20

In stock

7

COVER, CRANKCASE R

(836-15421-00-00)

1
Out of stock

8

BOLT (682)

97013-08025-00

1

$6.80

In stock

9

YBS67-8 WASHER, SPRING

92990-08100-00

1

$4.52

In stock

10

WASHER, PLAIN

92990-08200-00

1

$2.56

In stock

11

SCREW PAN HEAD

98580-06010-00

1

$6.17

In stock

12

GASKET

90430-06017-00

1
Out of stock

13

JOINT, BREATHER

J38-11116-00-00

1

$2.77

In stock

14

BOLT, STUD (90116-10093)

90116-10094-00

1
Out of stock

15

GASKET, CYLINDER

(834-11351-00-00)

1
Out of stock

16

CYLINDER 1

(836-11311-00-00)

1
Out of stock

17

CYLINDER 2

(836-11321-00-00)

1
Out of stock

18

BOLT, STUD

(90116-08049-00)

1
Out of stock

19

GASKET, CYLINDER HEAD 1

834-11181-00-00

1
Out of stock

20

HEAD, CYLINDER 1

(836-11111-00-00)

1
Out of stock

21

HEAD, CYLINDER 2

(836-11121-00-00)

1
Out of stock

22

—

$3.00

In stock

23

NUT(3BM)

95314-10600-00

—

$1.74

In stock

24

WASHER, PLAIN

92990-08200-00

1

$2.56

In stock

25

NUT(6L2)

95333-08600-00

1

$3.20

In stock

26

CHAMPION N2G 10PK

(CMP-N2G00-00-00)

1
Out of stock

27

CLAMP, OIL PIPE

(822-24369-01-00)

1
Out of stock
