1975 Yamaha SR643 Carburetor Diagram

← All diagrams

Find the part on the Carburetor diagram for your 1975 Yamaha SR643, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

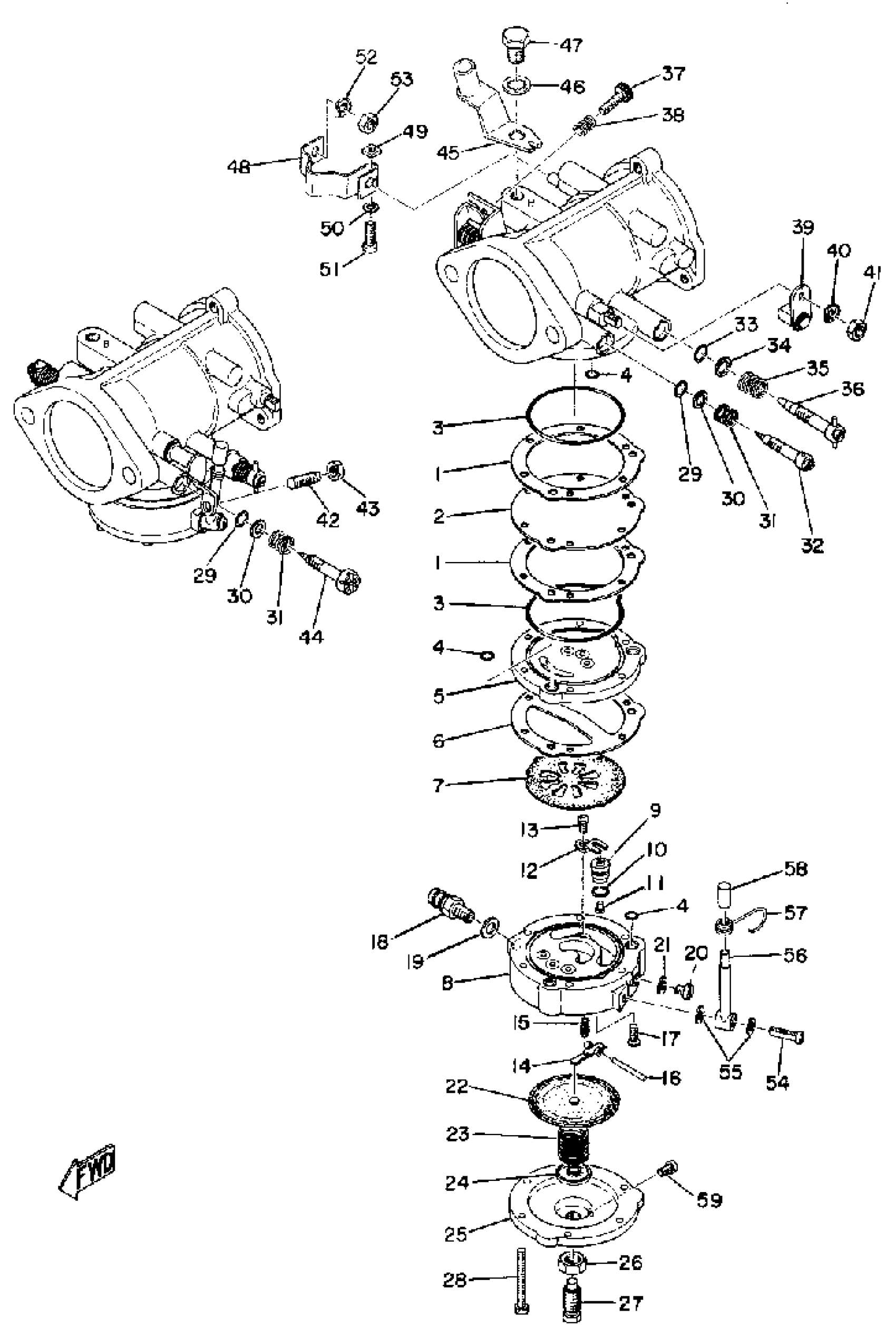

1975 Yamaha SR643 Carburetor Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

GASKET

(834-14536-00-00)

1
Out of stock

1

CARBURETOR ASSEMBLY 1

(836-14501-00-00)

1
Out of stock

2

. DIAPHRAGM, PUMP

834-14541-00-00

1
Out of stock

2

CARBURETOR ASSEMBLY 2

(836-14502-00-00)

1
Out of stock

3

. O-RING

806-14562-00-00

1
Out of stock

4

. O-RING

810-14561-00-00

1
Out of stock

5

BODY, PUMP 1

(834-14542-00-00)

1
Out of stock

6

GASKET

834-14553-09-00

1
Out of stock

7

VALVE,CHECK

806-14552-01-00

1

$47.25

In stock

8

BODY, PUMP 2

(834-14543-00-00)

1
Out of stock

9

VALVE SEAT ASSEMBLY

(837-14590-00-00)

1
Out of stock

10

. O-RING

810-24486-00-00

1
Out of stock

11

. PIN, FLOAT

676-14186-00-00

1

$7.15

In stock

12

PLATE, PIN FITTING

(810-14549-00-00)

1
Out of stock

13

SCREW, PAN HEAD (J10)

98580-03008-00

1

$2.23

In stock

14

ARM, FLOAT

(810-14547-00-00)

1
Out of stock

15

. SPRING

810-14556-00-00

1
Out of stock

16

PIN, FLOAT ARM

(806-14548-00-00)

1
Out of stock

17

SCREW, FLAT

98707-03008-00

—

$5.62

In stock

18

JOINT

(813-14568-00-00)

1
Out of stock

19

WASHER

(810-14558-00-00)

1
Out of stock

20

SCREW

(806-14567-01-00)

1
Out of stock

21

. WASHER

810-14597-00-00

1
Out of stock

22

DIAPHRAGM

810-14545-00-00

—
Out of stock

23

SPRING

(810-14555-00-00)

1
Out of stock

24

SEAT, SPRING

(810-14136-00-00)

1
Out of stock

25

BODY, PUMP 3

(813-14544-00-00)

1
Out of stock

26

. NUT

95380-08700-00

1

$3.07

In stock

27

. SCREW, STOP

824-14565-00-00

1
Out of stock

28

SCREW

(824-14567-00-00)

1
Out of stock

29

. O-RING

824-14563-00-00

1
Out of stock

30

. WASHER

806-14596-00-00

1
Out of stock

31

SPRING, AJST SCREW

(824-14531-00-00)

1
Out of stock

32

. SCREW, ADJUST

824-14522-00-00

1
Out of stock

33

. O-RING

824-14564-00-00

1
Out of stock

34

. WASHER

824-14597-00-00

1
Out of stock

35

SPRING, AJST SCREW

(824-14533-00-00)

1
Out of stock

36

SCREW, ADJUST

(834-14521-00-00)

1
Out of stock

37

SCREW, STOP

(806-14523-00-00)

1
Out of stock

38

SPRING, AJST SCREW

(806-14533-00-00)

1
Out of stock

39

LEVER

(835-14573-00-00)

1
Out of stock

40

WASHER, LOCK

(806-14599-00-00)

1
Out of stock

41

NUT, HEXAGON SMALL

95317-05700-00

—

$6.18

In stock

42

SCREW

(813-14591-00-00)

1
Out of stock

43

NUT

(806-14594-00-00)

1
Out of stock

44

. SCREW, ADJUST

828-14522-00-00

1
Out of stock

45

BRACKET, THROTTLE

(823-14571-00-00)

1
Out of stock

46

WASHER, IN.TOOTH

(92901-08300-00)

1
Out of stock

47

BOLT(8X2)

90101-08344-00

—

$1.12

In stock

48

CONNECTOR

(806-14588-00-00)

1
Out of stock

49

NUT

(806-14595-00-00)

1
Out of stock

50

YBS66-4 WASHER, PLAIN

92990-04200-00

—

$1.10

In stock

51

SCREW, PAN HEAD(GA5)

98580-04014-00

—

$2.78

In stock

52

WASHER

(806-14598-00-00)

1
Out of stock

53

NUT, HEXAGON (663)

95380-05600-00

—

$6.17

In stock

54

. SCREW

8A1-14592-00-00

1
Out of stock

55

. WASHER

806-14559-00-00

1
Out of stock

56

. PIPE, AIRVENT

810-14197-02-00

1
Out of stock

57

CLIP

(824-14159-00-00)

1
Out of stock

58

. CAP, BLIND

810-24462-01-00

1
Out of stock

59

CARBURETOR KIT

(836-14500-80-00)

1
Out of stock

59

SCREW, PAN HEAD(3XP)

98517-04006-00

1

$4.10

In stock
