1975 Yamaha SR643 Exhaust Diagram

← All diagrams

Find the part on the Exhaust diagram for your 1975 Yamaha SR643, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

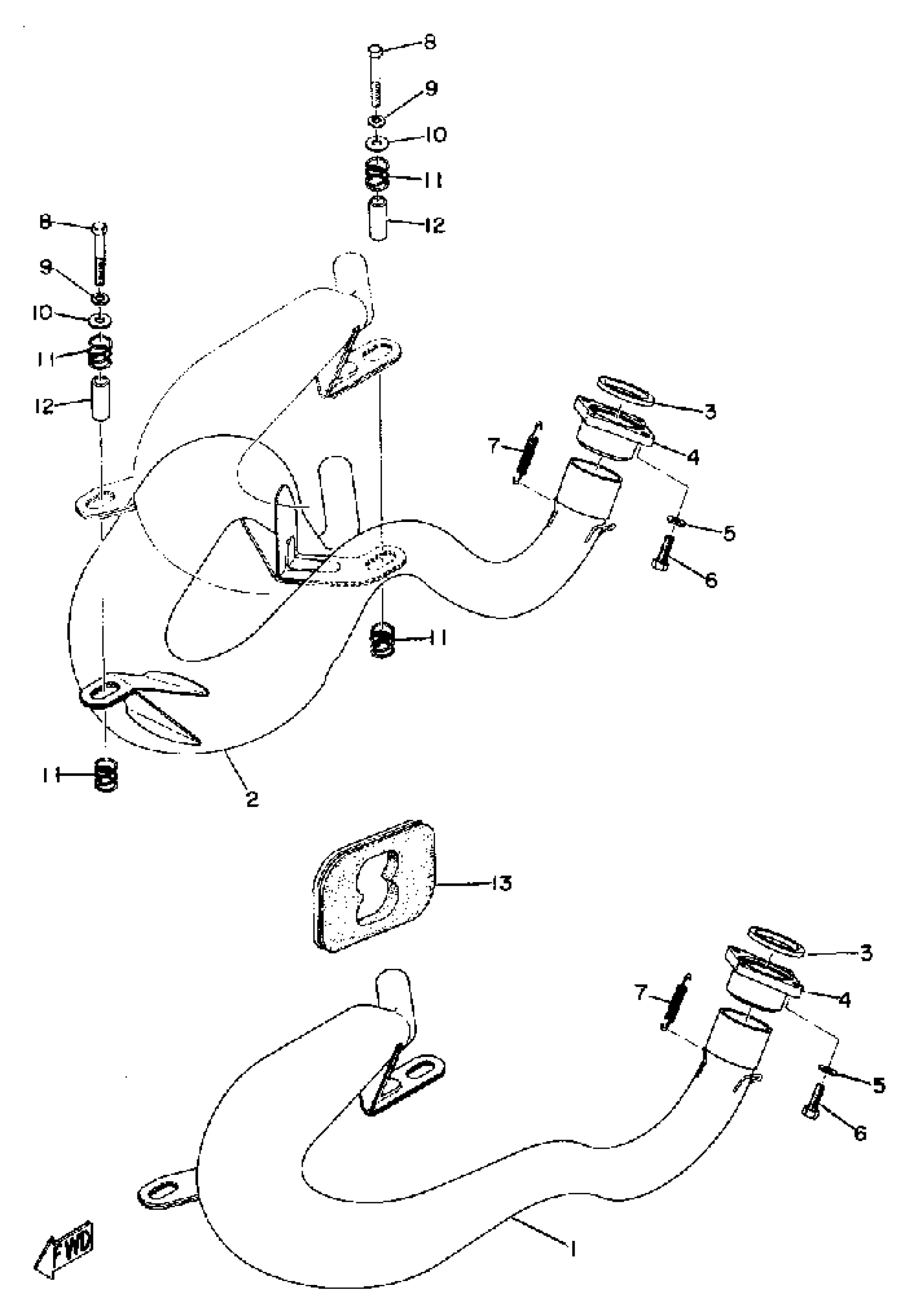

1975 Yamaha SR643 Exhaust Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

EXHAUST PIPE ASSEMBLY L

(836-14610-00-00)

1
Out of stock

2

EXHAUST PIPE ASSEMBLY R

(836-14620-00-00)

1
Out of stock

3

GASKET, EXHAUST

834-14613-09-00

—

$12.89

In stock

4

NUT, RING

(836-14612-00-00)

1
Out of stock

5

YBS67-8 WASHER, SPRING

92990-08100-00

1

$4.52

In stock

6

BOLT (682)

97013-08025-00

1

$6.80

In stock

7

SPRING, HOOK (864)

90506-20074-00

1

$7.74

In stock

8

BOLT (663)

97013-08060-00

1

$3.25

In stock

9

YBS67-8 WASHER, SPRING

92990-08100-00

1

$4.52

In stock

10

WASHER, PLATE (5J0)

90201-085E6-00

1
Out of stock

11

SPRING, COMPRESSION (802-14773-00)

90501-26149-00

1
Out of stock

12

COLLAR (802-14638-00)

90387-09071-00

1
Out of stock

13

PROTECTOR, MUFF 1

(836-14718-00-00)

1
Out of stock
