1990 Yamaha SRV (SR540P) Steering Gate Diagram

← All diagrams

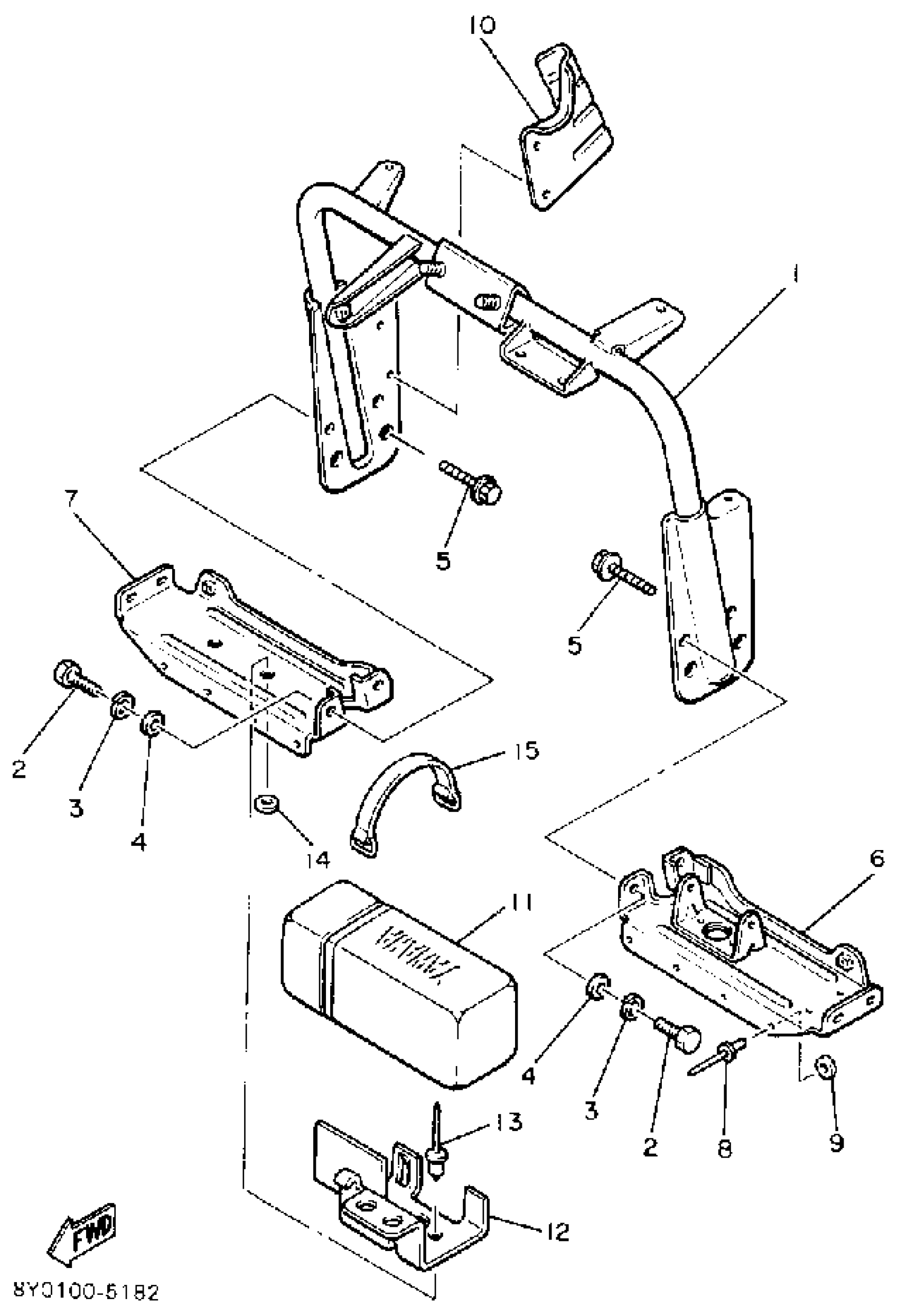

Find the part on the Steering Gate diagram for your 1990 Yamaha SRV (SR540P), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1990 Yamaha SRV (SR540P) Steering Gate Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

GATE, STEERING

8K4-23871-00-00

1
Out of stock

2

BOLT, HEXAGON DEEP RECESS

97D95-06016-00

1

$1.91

In stock

3

WASHER, SPRING

92995-06100-00

1

$2.99

In stock

4

WASHER, PLAIN (646)

92990-06600-00

1

$2.48

In stock

5

BOLT, FLANGE(JN5)

95817-08016-00

1

$4.12

In stock

6

BRACKET 3

8K4-23883-00-00

1
Out of stock

7

BRACKET 4

8L8-23884-00-00

—

$4.28

In stock

8

RIVET, BLIND (8H4)

90267-48053-00

1

$2.31

In stock

9

WASHER, PLATE

90201-04027-00

1
Out of stock

10

BRACKET 6

8K4-23886-00-00

1
Out of stock

11

TOOL KIT (8V9-28100-00)

8U9-28100-00-00

1
Out of stock

12

BRACKET, TL BX FTNG (8N8-21945-01)

8U5-21945-00-00

1
Out of stock

13

RIVET, BLIND (8K2)

90267-48079-00

1
Out of stock

14

WASHER, PLATE

90201-04027-00

1
Out of stock

15

BAND, BATTERY

4J2-82131-01-00

1

$24.15

In stock
