1990 Yamaha SRV (SR540P) Electrical 1 Diagram

← All diagrams

Find the part on the Electrical 1 diagram for your 1990 Yamaha SRV (SR540P), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

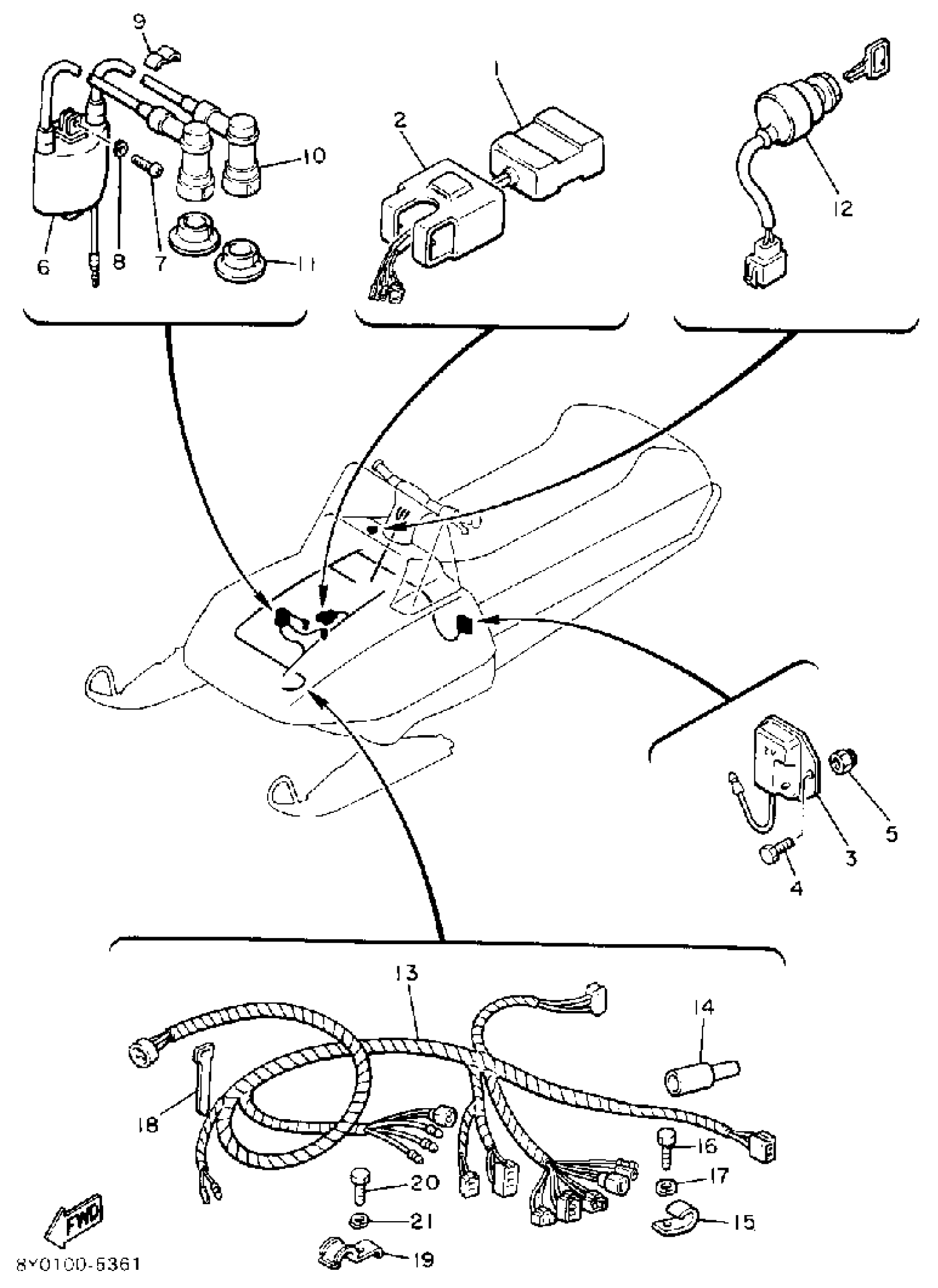

1990 Yamaha SRV (SR540P) Electrical 1 Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

C.D.I. UNIT ASSEMBLY

8V0-85540-21-00

1
Out of stock

2

BAND

2A7-85546-00-00

—

$20.40

In stock

3

VOLTAGE REGULATOR ASSY

82M-81910-A0-00

—
Out of stock

4

BOLT(8CP)

97017-06014-00

1

$5.12

In stock

5

NUT, NYLON

95707-06300-00

1

$3.20

In stock

6

IGNITION COIL ASSY

85T-82310-06-00

1
Out of stock

7

SCREW PAN HEAD

98580-06020-00

1

$5.10

In stock

8

WASHER, SPRING

92995-06100-00

1

$2.99

In stock

9

CLAMP, CORD

861-82361-00-00

—

$5.34

In stock

10

PLUG CAP ASSY

85G-82370-20-00

1

$28.09

In stock

11

SEAL

8G5-82372-00-00

1

$4.66

In stock

12

MAIN SWITCH ASSY

8K4-82510-20-00

1
Out of stock

13

WIRE HARNESS ASSEMBLY

84L-82590-20-00

1
Out of stock

14

COVER, CONNECTER

8Y0-82599-00-00

—
Out of stock

15

CLAMP

90465-08028-00

1

$4.62

In stock

16

BOLT (661)

97013-06012-00

—

$4.71

In stock

17

WASHER, SPRING

92995-06100-00

1

$2.99

In stock

18

BAND

341-26397-01-00

1
Out of stock

19

CLAMP

90462-06079-00

1
Out of stock

20

BOLT (661)

97013-06012-00

—

$4.71

In stock

21

WASHER, SPRING

92995-06100-00

1

$2.99

In stock
