1990 Yamaha SRV (SR540P) SKI Diagram

← All diagrams

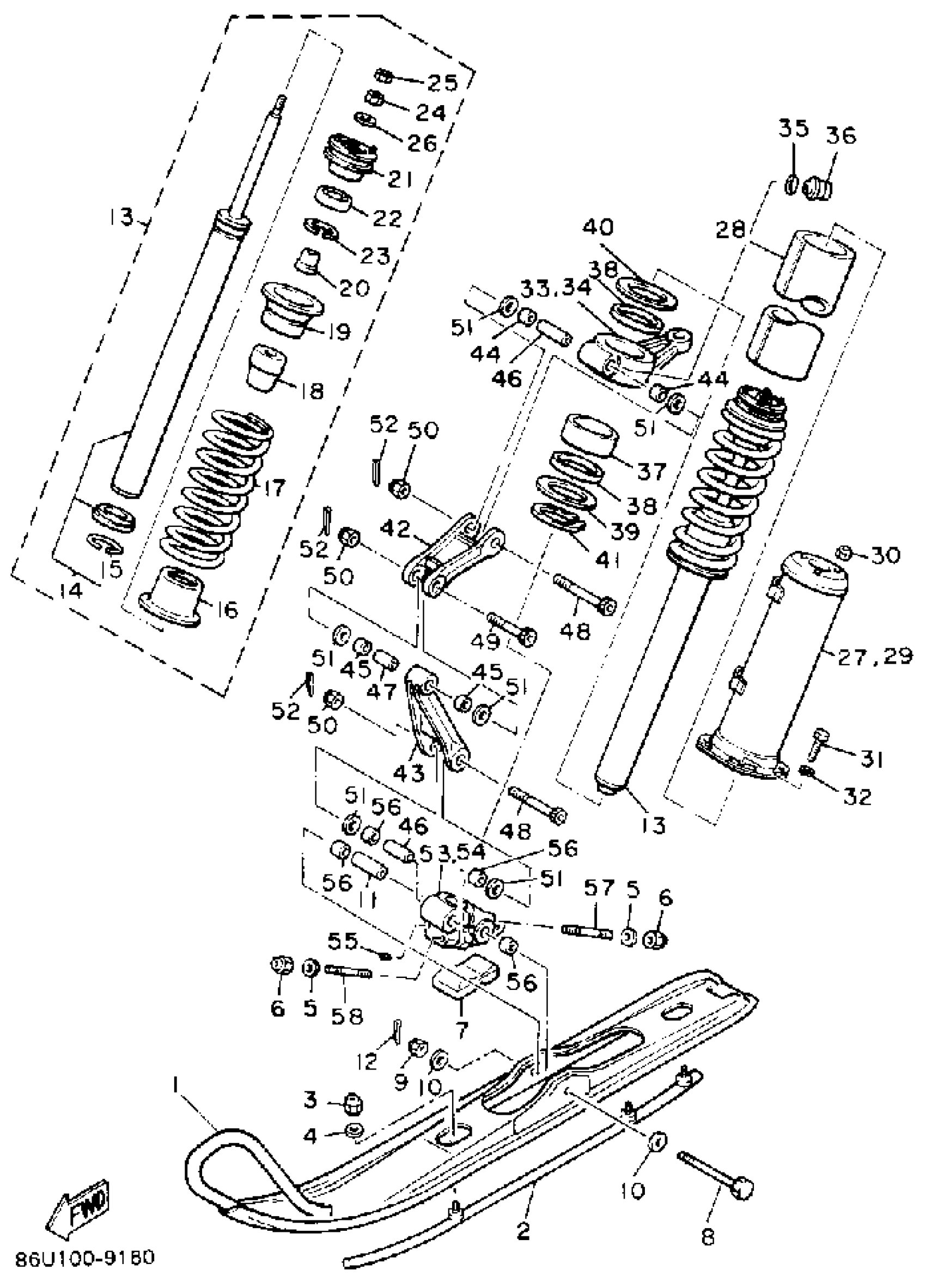

Find the part on the SKI diagram for your 1990 Yamaha SRV (SR540P), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1990 Yamaha SRV (SR540P) SKI Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

SKI COMP. 1

86M-23710-00-00

1
Out of stock

2

SKI RUNNER, 1

82W-23731-01-XX

1
Out of stock

3

NUT, U

95617-08100-00

1

$6.78

In stock

4

WASHER(6TA)

92907-08600-00

1

$2.52

In stock

5

.. WASHER, PLATE

92990-08600-00

1

$2.36

In stock

6

NUT, NYLON

95717-08300-00

1

$2.57

In stock

7

STOPPER 1

82M-23743-00-00

1
Out of stock

8

BOLT, WITH HAUL (31A)

90102-10050-00

1

$16.75

In stock

9

NUT, NYLON

95707-10300-00

1

$6.68

In stock

10

WASHER(6TA)

92907-10600-00

1
Out of stock

11

COLLAR (8V0)

90387-106J3-00

1

$13.95

In stock

12

PIN, COTTER

91490-20025-00

1

$1.31

In stock

13

ABSORBER ASSEMBLY 1

84L-2376A-00-00

1
Out of stock

14

. DAMPER SUB-ASSEMBLY

84L-22401-00-00

1
Out of stock

15

. CIRCLIP, OUTER

93440-36087-00

1
Out of stock

16

. SEAT, SPRING 2

8L9-23777-00-00

1
Out of stock

17

SPRING, COMPRESSION (8L9)

90501-75612-00

—

$38.49

In stock

18

. BUMP, STOP

8L0-22493-00-00

1
Out of stock

19

PLATE, BACK UP

8AB-23788-00-00

1
Out of stock

20

. COLLAR

90387-100A5-00

1
Out of stock

21

. HOLDER, BEARING

8L0-2376H-00-00

1
Out of stock

22

BEARING(3DL)

93306-20226-00

—

$33.15

In stock

23

CIRCLIP(47Y)

99009-35500-00

—

$6.17

In stock

24

. NUT

90170-08220-00

1
Out of stock

25

NUT(6L2)

95333-08600-00

—

$3.20

In stock

26

WASHER, PLATE (4W3)

90201-086A3-00

—

$6.29

In stock

27

HOLDER, ABSORBER

8L9-2376J-00-00

1
Out of stock

28

PROTECTOR

8L0-2376R-00-00

—

$6.58

In stock

29

PROTECTOR 3

8M6-77553-00-00

1
Out of stock

30

NUT, SELF-LOCKING

95617-06100-00

—

$2.32

In stock

31

BOLT, HEXAGON

97017-06020-00

—

$2.55

In stock

32

WASHER, SPRING

92995-06100-00

1

$2.99

In stock

33

ARM, OUTSIDE 1

8U7-23851-00-00

1
Out of stock

34

ARM, OUTSIDE 2

8U7-23852-00-00

1
Out of stock

35

WASHER, PLATE (8U7)

90201-067F9-00

—

$2.78

In stock

36

NIPPLE, GREASE

93700-06M03-00

1

$7.15

In stock

37

—

$33.18

In stock

38

OIL SEAL (8U7)

93109-53036-00

—

$10.34

In stock

39

WASHER, PLATE (8L9)

90201-536A1-00

—

$3.66

In stock

40

WASHER, PLATE(8W1)

90201-535H6-00

—

$3.78

In stock

41

CIRCLIP (8L9)

93410-52061-00

—

$10.51

In stock

42

ARM, FRONT 1

8L0-2382E-01-00

—

$35.28

In stock

43

ARM, FRONT 2

8L0-2382F-00-00

—

$36.58

In stock

44

—

$9.15

In stock

45

—

$9.29

In stock

46

COLLAR(89A)

90387-101Y9-00

—

$20.45

In stock

47

COLLAR (8L0)

90387-100A4-00

—

$5.62

In stock

48

BOLT, WITH HOLE (8L0)

90102-10039-00

—

$10.38

In stock

49

BOLT, WITH HOLE

90102-10038-00

1
Out of stock

50

NUT, NYLON

95707-10300-00

1

$6.68

In stock

51

WASHER PLATE 626441260000

90202-14037-00

—
Out of stock

52

PIN, COTTER

91490-20025-00

1

$1.31

In stock

53

BRACKET 1

84M-2376E-00-00

—

$259.32

In stock

54

BRACKET 2

84M-2377E-00-00

—

$339.69

In stock

55

BOLT, SET (8K2)

90113-06039-00

—

$6.97

In stock

56

—

$9.15

In stock

57

BOLT, STUD 3

95617-08655-00

—

$4.34

In stock

58

BOLT, STUD 3

95617-08640-00

—

$3.98

In stock
