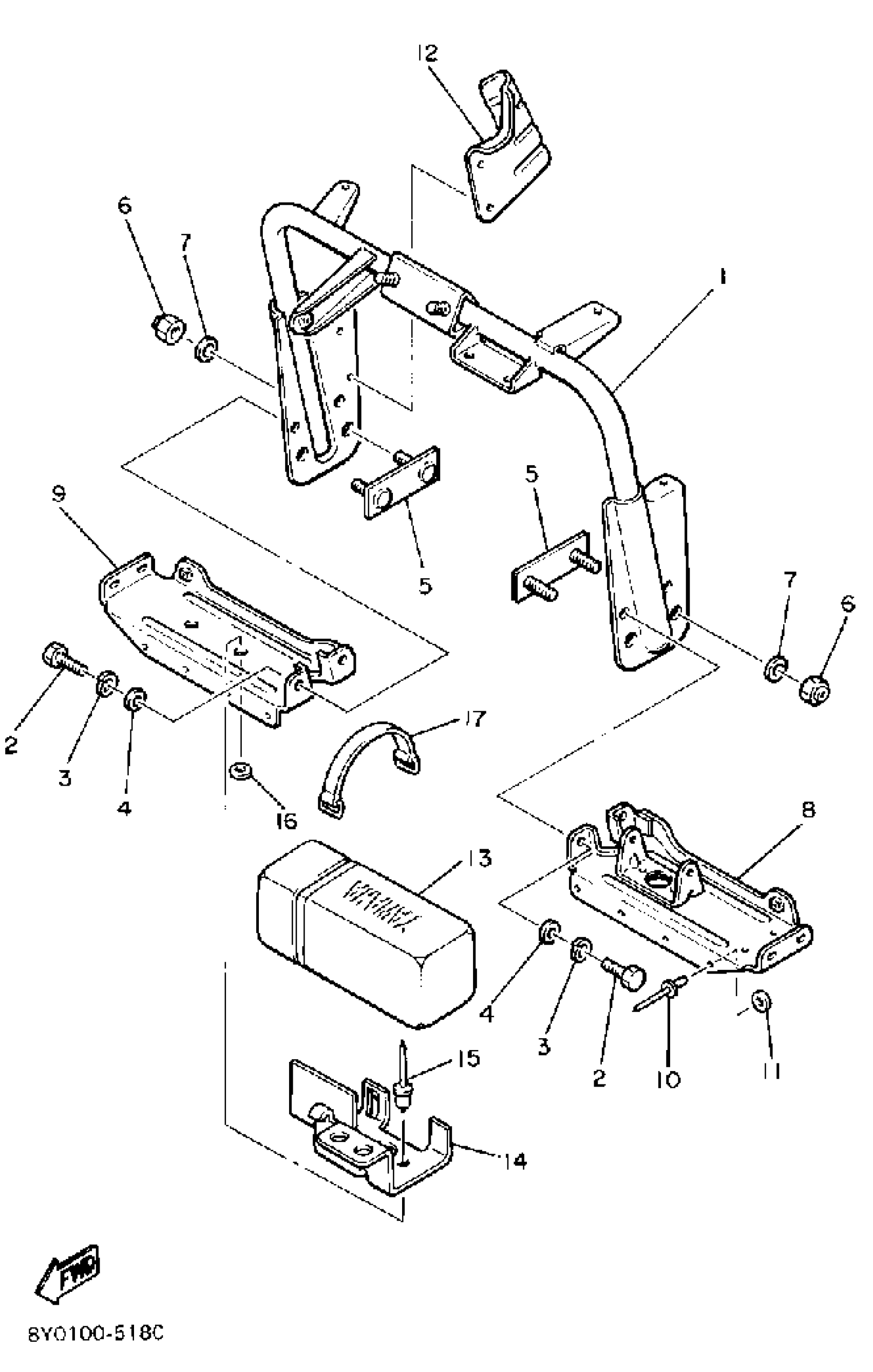

Find the part on the Steering Gate diagram for your 1985 Yamaha SRV (SR540J), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1985 Yamaha SRV (SR540J) Steering Gate Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

GATE, STEERING

8K4-23871-00-00

1
Out of stock

2

BOLT, HEXAGON

97017-06016-00

1

$6.18

In stock

2

BOLT, HEXAGON DEEP RECESS

97D95-06016-00

1

$1.91

In stock

3

WASHER, SPRING

92907-06100-00

1
Out of stock

3

WASHER, SPRING

92995-06100-00

1

$2.99

In stock

4

WASHER, PLATE (4H7)

90201-061A5-00

1

$5.86

In stock

4

WASHER(6TA)

92907-06200-00

1

$6.18

In stock

5

BRACKET 10

(8K4-23878-00-00)

1
Out of stock

5

BOLT, FLANGE(JN5)

95817-08016-00

1

$4.12

In stock

6

NUT, NYLON

95717-08300-00

1

$2.57

In stock

7

WASHER(6TC)

92907-08200-00

1
Out of stock

8

BRACKET 3

8K4-23883-00-00

1
Out of stock

9

BRACKET 4

8L8-23884-00-00

—

$4.28

In stock

10

RIVET, BLIND (8H4)

90267-48053-00

1

$2.31

In stock

11

WASHER, PLATE

90201-04027-00

1
Out of stock

12

BRACKET 6

8K4-23886-00-00

1
Out of stock

13

TOOL KIT (8V9-28100-00)

8U9-28100-00-00

1
Out of stock

14

BRACKET, TL BX FTNG (8N8-21945-01)

8U5-21945-00-00

1
Out of stock

15

RIVET, BLIND (8K2)

90267-48079-00

—
Out of stock

16

WASHER, PLATE

90201-04027-00

1
Out of stock

17

BAND, BATTERY

4J2-82131-01-00

—

$24.15

In stock
