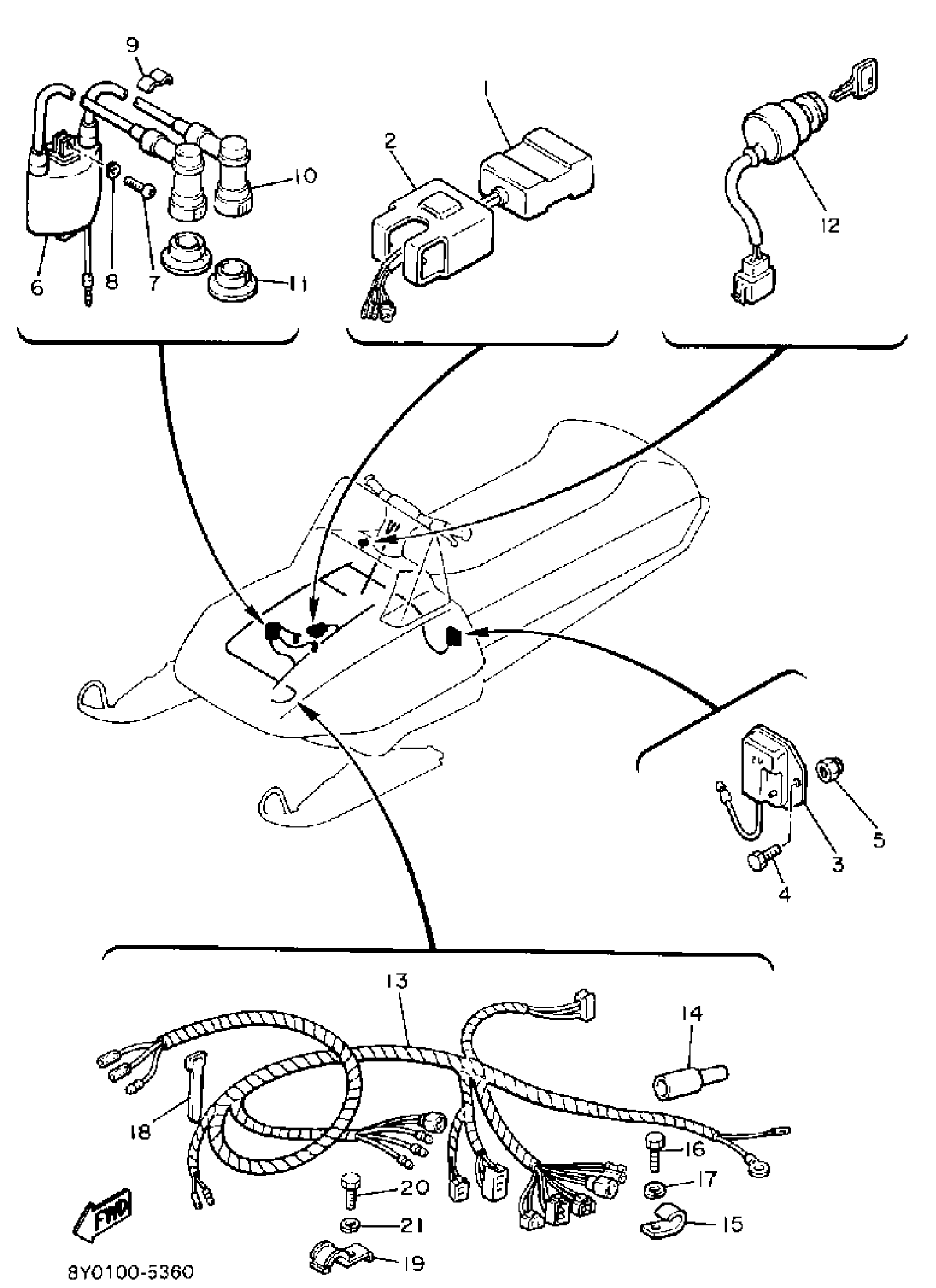

Yamaha SR540J (SRV) 1985 ELECTRICAL 1 Diagram

#

Description
Price

1

C.D.I. UNIT ASSEMBLY

8V0-85540-21-00

Unavailable

2

BAND

2A7-85546-00-00

Unavailable

3

VOLTAGE REGULATOR ASSY

7XE-81910-00-00

$46.16

4

BOLT(8CP)

97017-06014-00

$4.91

5

NUT, NYLON

95707-06300-00

$2.98

6

IGNITION COIL ASY

8E7-82310-09-00

Unavailable

7

SCREW PAN HEAD

98580-06020-00

$4.89

8

WASHER, SPRING

92995-06100-00

$2.95

9

CLAMP, CORD

861-82361-00-00

Unavailable

10

PLUG CAP ASSY

85G-82370-20-00

$26.95

11

SEAL

8G5-82372-00-00

$4.34

12

MAIN SWITCH ASSY

8K4-82510-20-00

Unavailable

13

WIRE HARNESS ASSEMBLY

8Y0-82590-20-00

Unavailable

14

COVER, CONNECTER

8Y0-82599-00-00

Unavailable

15

CLAMP

90465-08028-00

$4.31

16

BOLT (661)

97013-06012-00

Unavailable

17

WASHER, SPRING

92995-06100-00

$2.95

18

BAND, SWITCH CORD

437-83936-01-00

Unavailable

19

CLAMP

90462-06079-00

Unavailable

20

BOLT (661)

97013-06012-00

Unavailable

21

WASHER, SPRING

92995-06100-00

$2.95
