1985 Yamaha SRV (SR540J) Steering Diagram

← All diagrams

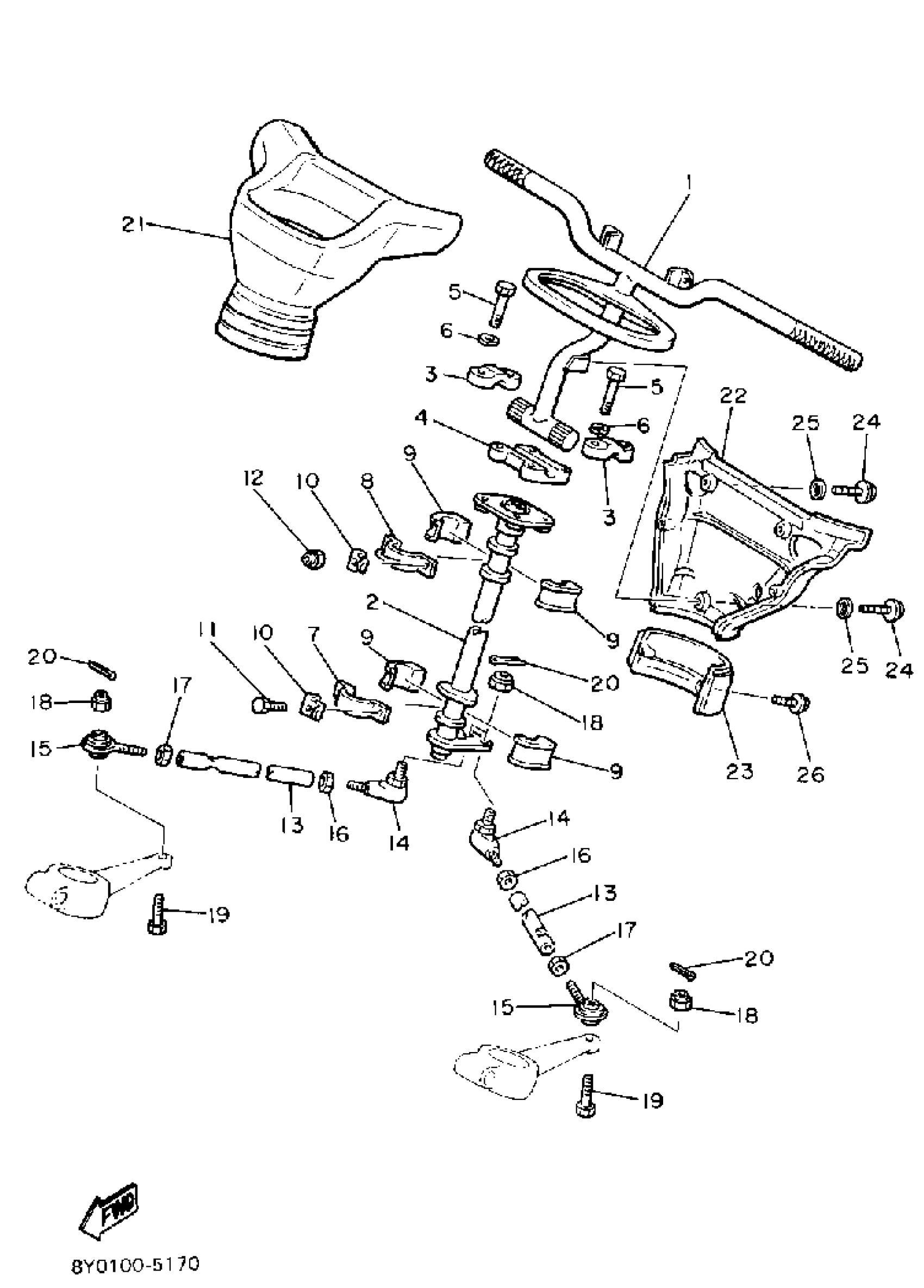

Find the part on the Steering diagram for your 1985 Yamaha SRV (SR540J), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1985 Yamaha SRV (SR540J) Steering Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

COLUMN, STEERING

81R-23811-00-00

1
Out of stock

2

COLUMN, STEERING 2

8L8-23813-00-00

1
Out of stock

3

HOLDER, HANDLE UPPER

1E6-23441-00-00

1

$22.38

In stock

4

HANDLE, HOLDER

164-23441-01-98

—
Out of stock

5

BOLT, HEXAGON

97013-08055-00

1

$3.25

In stock

5

BOLT, HEXAGON

97013-08055-00

1

$3.25

In stock

6

YBS67-8 WASHER, SPRING

92990-08100-00

1

$4.52

In stock

7

BRACKET, STEERING LOWER

84M-23868-00-00

—

$32.05

In stock

8

HOLDER, BEARING

84M-23872-00-00

—

$16.78

In stock

9

BEARING, STEERING

8F3-23812-00-00

1

$9.89

In stock

10

WASHER, LOCK 1

8AC-23894-01-00

1

$3.62

In stock

11

BOLT, HEXAGON

97013-08016-00

1

$1.32

In stock

12

NUT, NYLON

95717-08300-00

1

$2.57

In stock

13

ROD,STEERING RELAY

85L-23821-00-00

1
Out of stock

13

ROD, STEERING RELAY

8U7-23821-10-00

1
Out of stock

14

JOINT, UNIVERSAL 1

86X-23841-00-00

—

$51.36

In stock

15

JOINT, UNIVERSAL 3

87S-23847-01-00

—

$44.71

In stock

16

NUT (682)

95380-10700-00

1

$5.78

In stock

17

NUT, HEXAGON (8A5)

90170-10186-00

—

$7.60

In stock

18

NUT, NYLON

95707-10300-00

—

$6.68

In stock

19

BOLT, WITH HOLE

90102-10031-00

—

$15.65

In stock

20

PIN, COTTER

91490-20025-00

—

$1.31

In stock

21

PAD, STEERING

8L8-23815-01-00

1
Out of stock

22

. PAD, STEERING

8L8-23817-02-00

1
Out of stock

23

COVER, STEERING

8Y0-23818-00-00

—

$16.45

In stock

24

SCREW, PAN HEAD W/WASHER

97607-05112-00

—

$6.69

In stock

25

WASHER, PLATE 8067717800

90201-05029-00

—

$5.12

In stock

26

SCREW, PAN HEAD WITH WASHER

97607-04314-00

1
Out of stock
