1985 Yamaha SRV (SR540J) Shroud - Windshield SR540K Diagram

← All diagrams

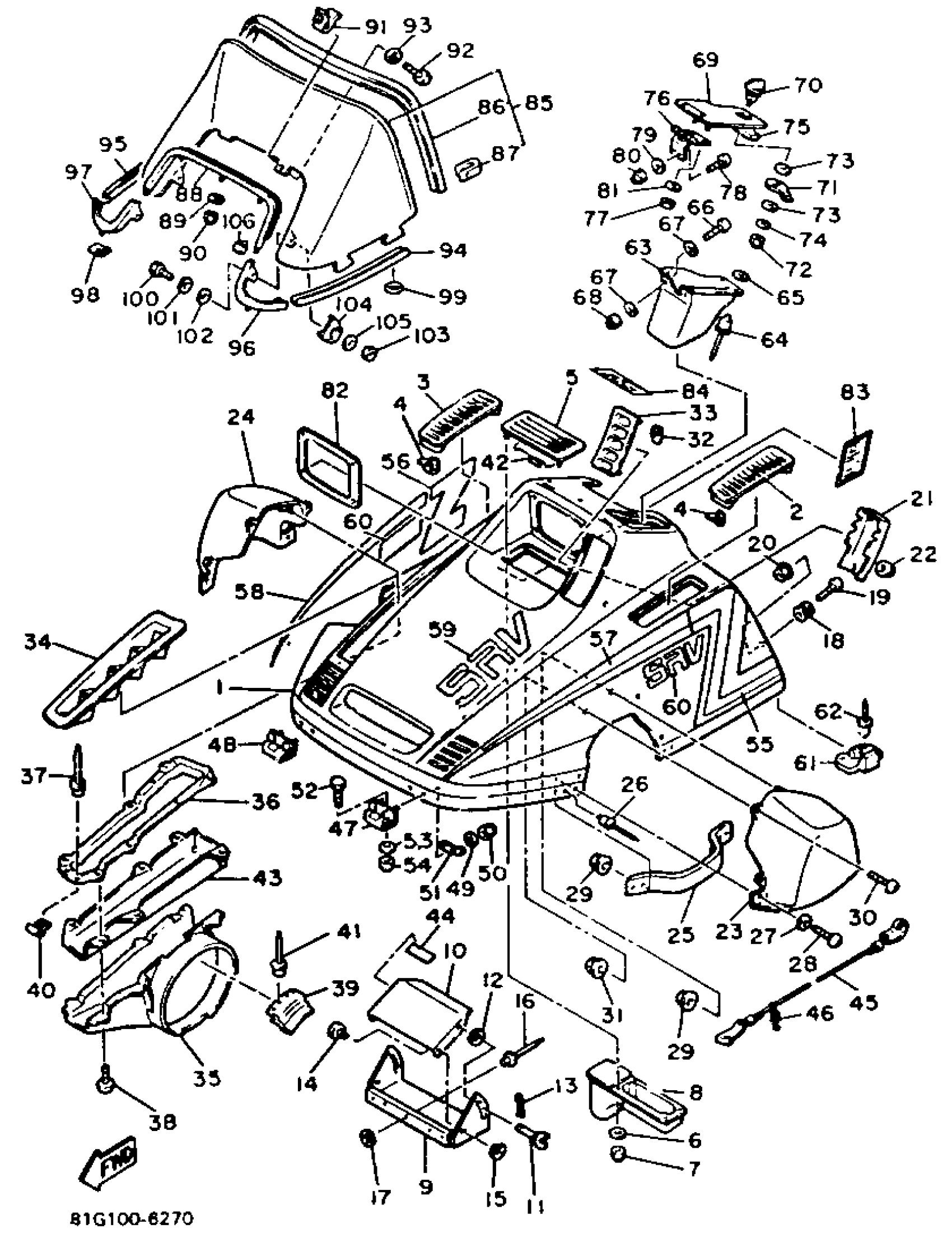

Find the part on the Shroud - Windshield SR540K diagram for your 1985 Yamaha SRV (SR540J), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1985 Yamaha SRV (SR540J) Shroud - Windshield SR540K Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

SHROUD ASY

81G-W7711-00-00

1
Out of stock

2

LOUVER 3

8L9-77133-00-00

1
Out of stock

3

LOUVER 4

8L9-77134-00-00

1
Out of stock

4

CLIP

90468-05094-00

1
Out of stock

5

LOUVER 5 (83W-77109-00)

8L9-77109-00-00

1
Out of stock

6

WASHER, PLATE 8067717800

90201-05029-00

1
Out of stock

7

NUT, NYLON

95707-05300-00

1
Out of stock

8

INSULATOR

8K4-7712E-00-00

1
Out of stock

9

STAY 1

8Y0-77125-00-00

1
Out of stock

10

STAY 2

8Y0-77126-00-00

1
Out of stock

11

BOLT, WING(8W1)

90122-05022-00

1
Out of stock

12

. WASHER, PLATE

90202-05088-00

1
Out of stock

13

CLIP 626412360000

90468-10004-00

—
Out of stock

14

PIN

90249-05187-00

1
Out of stock

15

CIRCLIP (EU0)

99080-04600-00

1
Out of stock

16

RIVET, BLIND (8H4)

90267-48053-00

—
Out of stock

17

WASHER, PLATE

90201-04027-00

—
Out of stock

18

. HOLDER, LATCH

8M6-77175-00-00

1
Out of stock

19

SCREW, BINDING

98907-06030-00

—
Out of stock

20

NUT, FLANGE(7NB)

95780-06500-00

—
Out of stock

21

PLATE 1

8V8-77185-00-00

1
Out of stock

22

NUT, FLANGE

95707-04500-00

—
Out of stock

23

HOOD 1

8L0-77121-00-00

1
Out of stock

24

HOOD 2

8L0-77122-00-00

1
Out of stock

25

STAY 1

8L0-77125-00-00

1
Out of stock

26

RIVET (856)

90267-48014-00

—
Out of stock

27

WASHER, PLATE 8067717800

90201-05029-00

1
Out of stock

28

SCREW, BINDING (8J0)

90154-05005-00

—
Out of stock

29

NUT, W/ WASHER

95707-05600-00

1
Out of stock

30

SCREW, BINDING

98907-06016-00

—
Out of stock

31

NUT, W/ WASHER

95707-06600-00

—
Out of stock

32

CLIP

90468-05094-00

1
Out of stock

33

LOUVER 6

8V8-77108-00-00

1
Out of stock

34

LOUVER 1

80R-77131-00-00

1
Out of stock

35

DUCT

8V9-77194-00-00

1
Out of stock

36

PLATE, BACK UP 1

8V9-77153-00-00

1
Out of stock

37

RIVET, BLIND(8R6)

90267-40105-00

—
Out of stock

38

SCREW, BINDING

98907-06010-00

—
Out of stock

39

BUSH, RUBBER 1

8Y0-77515-00-00

1
Out of stock

40

CLIP

90468-05138-00

1
Out of stock

41

RIVET(81E)

90269-05055-00

—
Out of stock

42

PLATE 1

8Y0-77185-00-00

1
Out of stock

43

PLATE 2

8Y0-77186-00-00

1
Out of stock

44

LABEL,WARNING 2

8BE-77762-00-00

1
Out of stock

45

STOPPER, SHROUD

8K4-77118-00-00

1
Out of stock

46

CLAMP,ROD

838-77159-00-00

—
Out of stock

47

HINGE ASSEMBLY

8L8-77140-00-00

1
Out of stock

48

HINGE ASSEMBLY 2

8L8-7714A-00-00

1
Out of stock

49

WASHER, PLATE

90201-067A6-00

1
Out of stock

50

NUT, NYLON

95707-06300-00

—
Out of stock

51

WASHER 1

8Y0-77525-00-00

1
Out of stock

52

BOLT(8CP)

97017-06014-00

—
Out of stock

53

WASHER, PLATE (4L0)

90201-062A8-00

—
Out of stock

54

NUT, NYLON

95707-06300-00

—
Out of stock

55

ORNAMENT 1

81G-77163-00-00

1
Out of stock

56

ORNAMENT 2

81G-77164-00-00

1
Out of stock

57

ORNAMENT 4

81G-77113-00-00

1
Out of stock

58

ORNAMENT 5

81G-77114-00-00

1
Out of stock

59

EMBLEM 5

81G-77355-00-00

1
Out of stock

60

EMBLEM 6

81G-77356-00-00

1
Out of stock

61

STOPPER

8K4-77188-00-00

1
Out of stock

62

RIVET, BLIND (8R6)

90267-48086-00

—
Out of stock

63

LUGGAGE BOX

8K4-77391-00-00

1
Out of stock

64

RIVET, BLIND

90267-489UJ-00

1
Out of stock

65

WASHER, PLATE

90201-04027-00

—
Out of stock

66

SCREW, PAN

98517-06020-00

—
Out of stock

67

WASHER, PLATE 8221447500

90201-06057-00

—
Out of stock

68

NUT, NYLON

95707-06300-00

—
Out of stock

69

COVER, LUGGAGE BOX

8L9-77392-00-00

1
Out of stock

70

KNOB

8L9-77324-00-00

1
Out of stock

71

LEVER, ARM FITTING

8K4-77328-00-00

1
Out of stock

72

NUT, NYLON

95707-05300-00

1
Out of stock

73

WASHER, PLAIN(735)

90201-10119-00

—
Out of stock

74

WASHER, PLATE (8J0)

90201-05725-00

—
Out of stock

75

DAMPER 2

8K4-77374-00-00

1
Out of stock

76

HINGE ASSEMBLY

8K4-77470-00-00

1
Out of stock

77

NUT, CAP

95307-05800-00

—
Out of stock

78

SCREW, PAN HEAD

90157-05M19-00

1
Out of stock

79

WASHER, PLATE 8067717800

90201-05029-00

1
Out of stock

80

NUT, NYLON

95707-05300-00

1
Out of stock

81

WASHER, PLAIN LARGE

92907-05200-00

—
Out of stock

82

TRIM 1

8K4-77165-00-00

1
Out of stock

83

INDICATOR 3

8U7-77743-00-00

1
Out of stock

84

LABEL, WARNING 1

8Y0-77761-00-00

1
Out of stock

84

LABEL, WARNING 1

8Y0-77761-70-00

1
Out of stock

85

WINDSHIELD (8L0-77210-00)

8L0-77210-00-XX

1
Out of stock

86

TRIM,UPPER

87K-77213-00-00

1
Out of stock

87

. FASTENER

80V-77223-00-00

1
Out of stock

88

TRIM, LOWER

8L0-77214-00-00

1
Out of stock

89

WASHER, PLAIN (646)

92990-05600-00

—
Out of stock

90

NUT, NYLON

95707-05300-00

1
Out of stock

91

BRACKET, WNDSHLD R

8K4-77222-00-00

1
Out of stock

92

BOLT(3JP)

97017-06010-00

—
Out of stock

93

WASHER, SPRING

92995-06100-00

1
Out of stock

94

TRIM 3

8L0-77215-00-00

1
Out of stock

95

TRIM 4

8L0-77216-00-00

1
Out of stock

96

TRIM 5

8L0-77225-00-00

1
Out of stock

97

TRIM 6

8L0-77226-00-00

—
Out of stock

98

NUT, SPRING(8AJ)

90183-05068-00

—
Out of stock

99

FASTNER

82H-77223-00-00

—
Out of stock

100

BOLT, HEXAGON

97313-05016-00

1
Out of stock

101

YBS67-5 WASHER, SPRING

92990-05100-00

—
Out of stock

102

WASHER PLATE 829771780000

90201-05033-00

—
Out of stock

103

NUT, CAP

95307-05800-00

—
Out of stock

104

WASHER, SPECIAL

8L9-77116-00-00

1
Out of stock

105

WASHER, PLATE

90201-06045-00

—
Out of stock

106

CLAMP 2

8L0-77136-00-00

1
Out of stock
