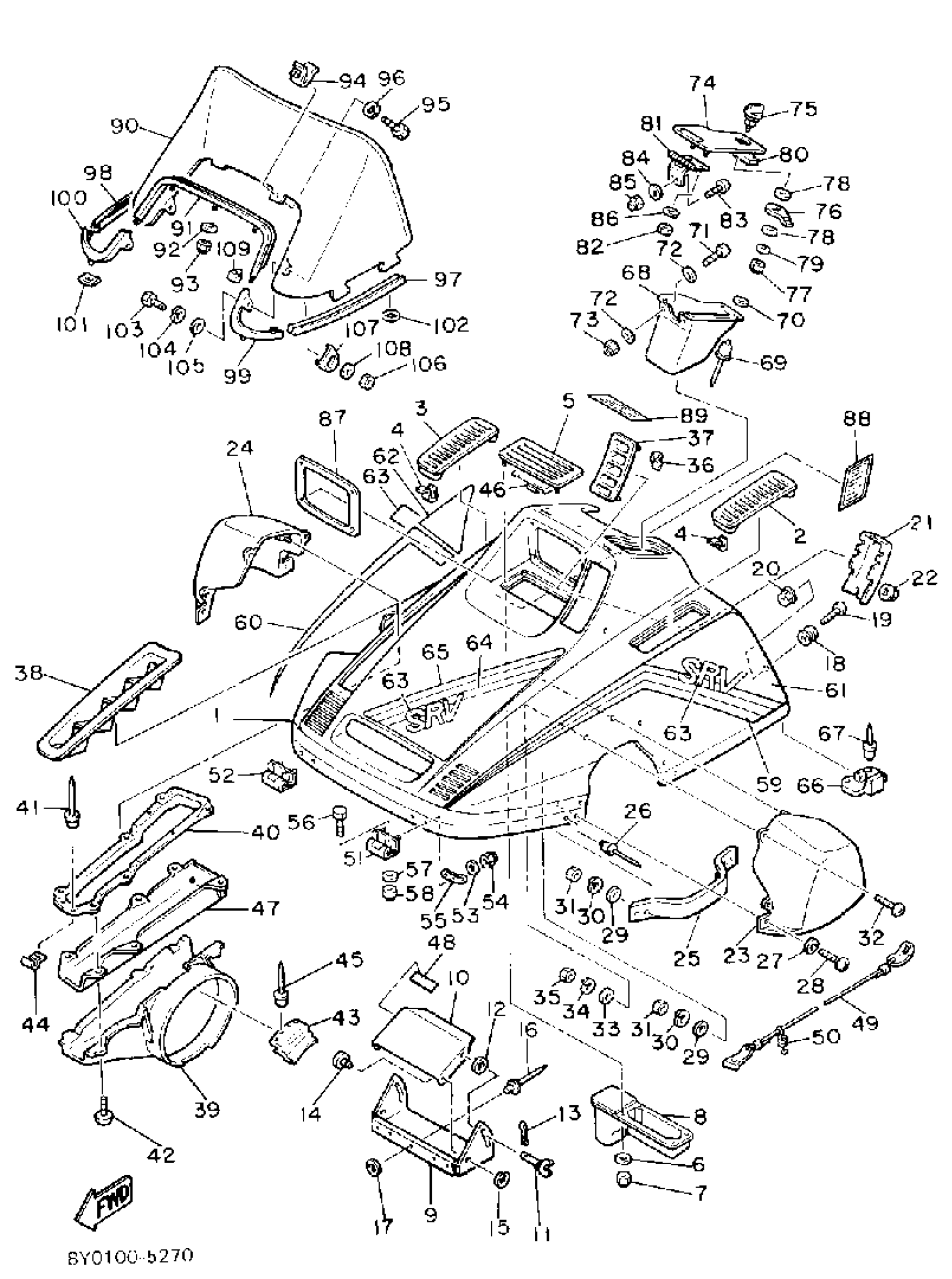

Find the part on the Shroud - Windshield SR540J diagram for your 1985 Yamaha SRV (SR540J), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1985 Yamaha SRV (SR540J) Shroud - Windshield SR540J Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

SHROUD ASSEMBLY

8V9-W7711-01-00

1
Out of stock

2

LOUVER 3

8L9-77133-00-00

1
Out of stock

3

LOUVER 4

8L9-77134-00-00

1
Out of stock

4

CLIP

90468-05094-00

1
Out of stock

5

LOUVER 5 (83W-77109-00)

8L9-77109-00-00

1
Out of stock

6

WASHER, PLATE 8067717800

90201-05029-00

1
Out of stock

7

NUT, NYLON

95707-05300-00

1
Out of stock

8

INSULATOR

8K4-7712E-00-00

1
Out of stock

9

STAY 1

8Y0-77125-00-00

1
Out of stock

10

STAY 2

8Y0-77126-00-00

1
Out of stock

11

BOLT, WING(8W1)

90122-05022-00

1
Out of stock

12

. WASHER, PLATE

90202-05088-00

1
Out of stock

13

PIN, HAIR 6474123500

90468-10003-00

1
Out of stock

14

PIN

90249-05187-00

1
Out of stock

15

CIRCLIP (EU0)

99080-04600-00

1
Out of stock

16

RIVET, BLIND (8H4)

90267-48053-00

—
Out of stock

17

WASHER, PLATE

90201-04027-00

—
Out of stock

18

. HOLDER, LATCH

8M6-77175-00-00

1
Out of stock

19

SCREW, BINDING

98907-06030-00

—
Out of stock

20

NUT, FLANGE(7NB)

95780-06500-00

—
Out of stock

21

PLATE 1

8V8-77185-00-00

1
Out of stock

22

NUT, FLANGE

95707-04500-00

—
Out of stock

23

HOOD 1

8L0-77121-00-00

1
Out of stock

24

HOOD 2

8L0-77122-00-00

1
Out of stock

25

STAY 1

8L0-77125-00-00

1
Out of stock

26

RIVET (856)

90267-48014-00

—
Out of stock

27

WASHER, PLATE 8067717800

90201-05029-00

1
Out of stock

28

SCREW, BINDING (8J0)

90154-05005-00

—
Out of stock

29

WASHER, PLATE 8067717800

90201-05029-00

1
Out of stock

30

YBS67-5 WASHER, SPRING

92990-05100-00

—
Out of stock

31

NUT, HEXAGON (663)

95380-05600-00

—
Out of stock

32

SCREW, BINDING

98907-06016-00

—
Out of stock

33

WASHER, PLATE

90201-06M08-00

1
Out of stock

34

WASHER, SPRING

92995-06100-00

1
Out of stock

35

NUT, HEXAGON

95380-06600-00

1
Out of stock

36

CLIP

90468-05094-00

1
Out of stock

37

LOUVER 6

8V9-77108-00-00

1
Out of stock

38

LOUVER 1

80R-77131-00-00

1
Out of stock

39

DUCT

8V9-77194-00-00

1
Out of stock

40

PLATE, BACK UP 1

8V9-77153-00-00

1
Out of stock

41

RIVET, BLIND(8R6)

90267-40105-00

—
Out of stock

42

SCREW, BINDING

98907-06010-00

—
Out of stock

43

BUSH, RUBBER 1

8Y0-77515-00-00

1
Out of stock

44

CLIP

90468-05138-00

1
Out of stock

45

RIVET(81E)

90269-05055-00

—
Out of stock

46

PLATE 1

8Y0-77185-00-00

1
Out of stock

47

PLATE 2

8Y0-77186-00-00

1
Out of stock

48

LABEL,WARNING 2

8BE-77762-00-00

1
Out of stock

49

STOPPER, SHROUD

8K4-77118-00-00

1
Out of stock

50

CLAMP,ROD

838-77159-00-00

—
Out of stock

51

HINGE ASSEMBLY

8L8-77140-00-00

1
Out of stock

52

HINGE ASSEMBLY 2

8L8-7714A-00-00

1
Out of stock

53

WASHER, PLATE

90201-067A6-00

1
Out of stock

54

NUT, NYLON

95707-06300-00

—
Out of stock

55

WASHER 1

8Y0-77525-00-00

1
Out of stock

56

BOLT(8CP)

97017-06014-00

—
Out of stock

57

WASHER, PLATE (4L0)

90201-062A8-00

—
Out of stock

58

NUT, NYLON

95707-06300-00

—
Out of stock

59

ORNAMENT 1

8Y0-77163-00-00

1
Out of stock

60

ORNAMENT 2

8Y0-77164-00-00

1
Out of stock

61

ORNAMENT 3

8Y0-77169-00-00

1
Out of stock

62

ORNAMENT 4

8Y0-77113-00-00

1
Out of stock

63

EMBLEM 5

(8V9-77355-00-00)

1
Out of stock

64

EMBLEM 6

8Y0-77356-00-00

1
Out of stock

65

EMBLEM 7

8Y0-77357-00-00

1
Out of stock

66

STOPPER

8K4-77188-00-00

1
Out of stock

67

RIVET, BLIND (8R6)

90267-48086-00

—
Out of stock

68

LUGGAGE BOX

8K4-77391-00-00

1
Out of stock

69

RIVET, BLIND

90267-489UJ-00

1
Out of stock

70

WASHER, PLATE

90201-04027-00

—
Out of stock

71

SCREW, PAN

98517-06020-00

—
Out of stock

72

WASHER, PLATE 8221447500

90201-06057-00

—
Out of stock

73

NUT, NYLON

95707-06300-00

—
Out of stock

74

COVER, LUGGAGE BOX

8V9-77392-00-00

1
Out of stock

75

KNOB

8L9-77324-00-00

1
Out of stock

76

LEVER, ARM FITTING

8K4-77328-00-00

1
Out of stock

77

NUT, NYLON

95707-05300-00

1
Out of stock

78

WASHER, PLAIN(735)

90201-10119-00

—
Out of stock

79

WASHER, PLATE (8J0)

90201-05725-00

—
Out of stock

80

DAMPER 2

8K4-77374-00-00

1
Out of stock

81

HINGE ASSEMBLY

8K4-77470-00-00

1
Out of stock

82

NUT, CAP

95307-05800-00

—
Out of stock

83

SCREW, PAN HEAD

90157-05M19-00

1
Out of stock

84

WASHER, PLATE 8067717800

90201-05029-00

1
Out of stock

85

NUT, NYLON

95707-05300-00

1
Out of stock

86

WASHER, PLAIN LARGE

92907-05200-00

—
Out of stock

87

TRIM 1

8K4-77165-00-00

1
Out of stock

88

INDICATOR 3

8U7-77743-00-00

1
Out of stock

89

LABEL, WARNING 1

8Y0-77761-00-00

1
Out of stock

90

WINDSHIELD (8L0-77210-00)

8L0-77210-00-XX

1
Out of stock

91

TRIM, LOWER

8L0-77214-00-00

1
Out of stock

92

WASHER, PLAIN (646)

92990-05600-00

—
Out of stock

93

NUT, NYLON

95707-05300-00

1
Out of stock

94

BRACKET, WNDSHLD R

8K4-77222-00-00

1
Out of stock

95

BOLT(3JP)

97017-06010-00

—
Out of stock

96

WASHER, SPRING

92995-06100-00

1
Out of stock

97

TRIM 3

8L0-77215-00-00

1
Out of stock

98

TRIM 4

8L0-77216-00-00

1
Out of stock

99

TRIM 5

8L0-77225-00-00

1
Out of stock

100

TRIM 6

8L0-77226-00-00

—
Out of stock

101

NUT, SPRING(8AJ)

90183-05068-00

—
Out of stock

102

FASTNER

82H-77223-00-00

—
Out of stock

103

BOLT, HEXAGON

97313-05016-00

1
Out of stock

104

YBS67-5 WASHER, SPRING

92990-05100-00

—
Out of stock

105

WASHER PLATE 829771780000

90201-05033-00

—
Out of stock

106

NUT, CAP

95307-05800-00

—
Out of stock

107

WASHER, SPECIAL

8L9-77116-00-00

1
Out of stock

108

WASHER, PLATE

90201-06045-00

—
Out of stock

109

CLAMP 2

8L0-77136-00-00

1
Out of stock
