1985 Yamaha SRV (SR540J) AIR Cleaner Diagram

← All diagrams

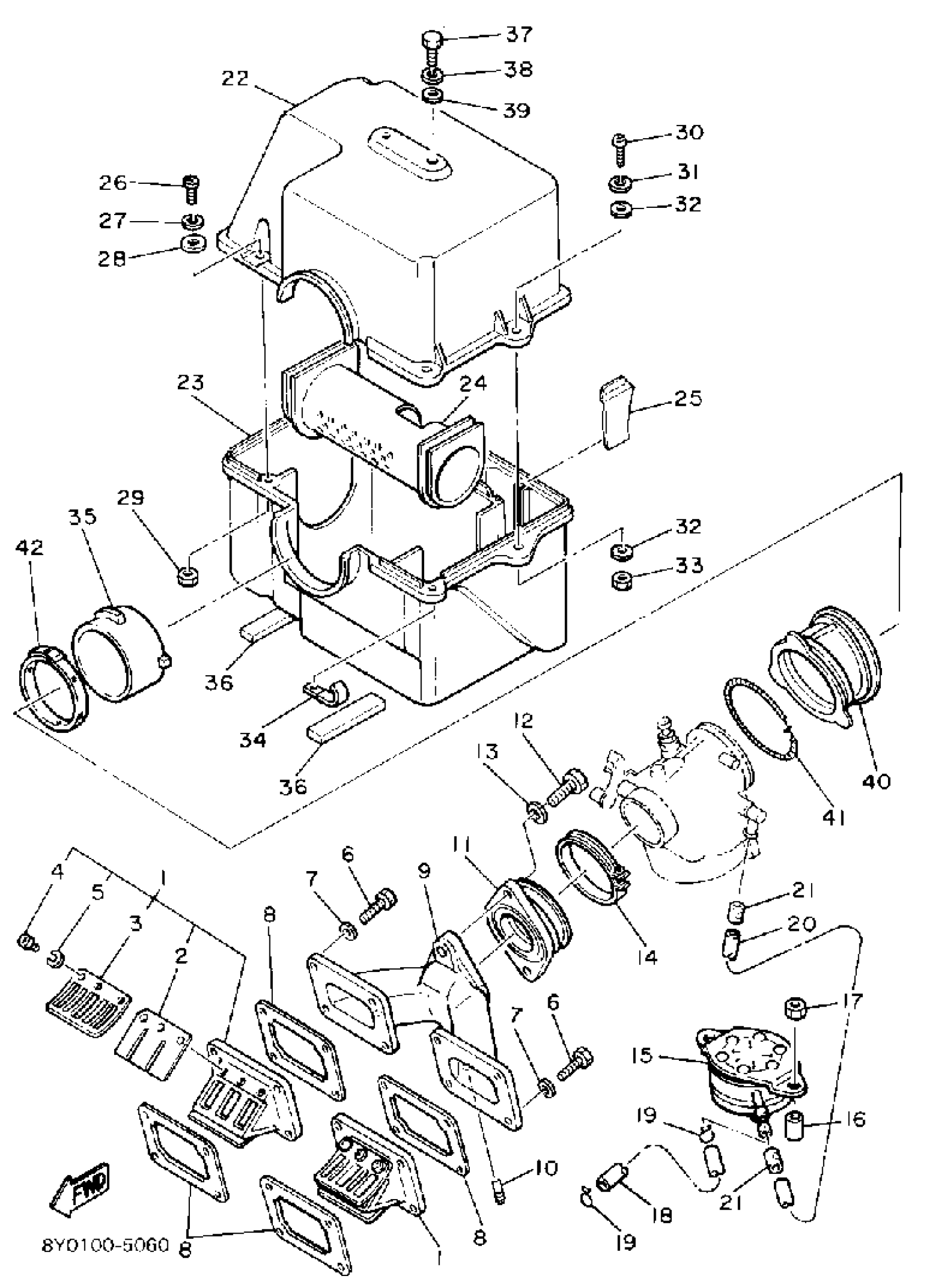

Find the part on the AIR Cleaner diagram for your 1985 Yamaha SRV (SR540J), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1985 Yamaha SRV (SR540J) AIR Cleaner Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

REED VALVE ASSEMBLY

3R5-13610-00-00

1
Out of stock

2

REED, VALVE

3R5-13613-00-00

1

$40.80

In stock

3

. STOPPER, REED VALVE

2X5-13616-00-00

1
Out of stock

4

SCREW, PAN HEAD (J10)

98580-03008-00

1

$2.23

In stock

5

WASHER, SPRING

92990-03100-00

1

$6.17

In stock

6

BOLT, HEXAGON

97017-06025-00

1

$2.98

In stock

7

WASHER, PLATE (4H7)

90201-061A5-00

1

$5.86

In stock

7

WASHER, PLAIN (646)

92990-06600-00

1

$2.48

In stock

8

GASKET, VALVE SEAT

80L-13621-01-00

1

$9.80

In stock

9

JOINT, CARBURETOR

8R6-13565-00-00

1
Out of stock

10

NOZZLE

824-13552-00-00

1
Out of stock

11

MANIFOLD, INTAKE

8H8-13555-01-00

1
Out of stock

12

BOLT, HEXAGON

97017-08025-00

1

$7.46

In stock

13

.. WASHER, PLATE

92990-08600-00

1

$2.36

In stock

13

.. WASHER, PLATE

92990-08600-00

1

$2.36

In stock

14

CLAMP, HOSE

90460-60084-00

1
Out of stock

15

FUEL PUMP ASSEMBLY (8Y0-24410-00)

8Y0-24410-01-00

1
Out of stock

16

COLLAR(M63)

90387-060X8-00

1
Out of stock

17

NUT, FLANGE(7NB)

95780-06500-00

—

$1.91

In stock

18

HOSE (L450)

90445-10144-00

—

$4.52

In stock

19

CLIP

90467-090A2-00

—

$2.51

In stock

20

HOSE

90446-11326-00

1
Out of stock

21

CLIP

90467-11028-00

1

$5.14

In stock

22

SILENCER, INTAKE 1

8K4-14431-00-00

1
Out of stock

23

SILENCER, INTAKE 2

8K4-14441-01-00

1
Out of stock

24

PIPE

8L0-14466-00-00

1
Out of stock

25

PLATE

8K4-14477-00-00

1
Out of stock

26

SCREW, PAN HEAD(6B0)

97885-05016-00

1

$3.96

In stock

27

YBS67-5 WASHER, SPRING

92990-05100-00

—
Out of stock

28

WASHER, PLAIN (646)

92990-05600-00

—
Out of stock

29

NUT, HEXAGON SMALL

95317-05700-00

—

$6.18

In stock

30

SCREW, PAN HEAD (76T)

98517-06025-00

—

$3.12

In stock

31

WASHER, SPRING

92995-06100-00

1

$2.99

In stock

32

YBS66-6 WASHER, PLAIN

92990-06200-00

—

$0.78

In stock

33

NUT, HEXAGON

95380-06600-00

1

$4.13

In stock

34

CLAMP(7RG)

90462-06232-00

—

$7.97

In stock

35

PIPE

8N8-14465-00-00

1
Out of stock

36

DAMPER 1

8K4-14425-00-00

1
Out of stock

37

BOLT, HEXAGON DEEP RECESS

97D95-06016-00

—

$1.91

In stock

38

WASHER, SPRING

92995-06100-00

1

$2.99

In stock

39

WASHER, PLATE (4L0)

90201-062A8-00

—

$6.23

In stock

40

JOINT, AIR CLEANER1

8N8-14453-01-00

1
Out of stock

41

—

$6.89

In stock

42

HOSE CLAMP ASSY

90450-75002-00

—

$10.40

In stock
