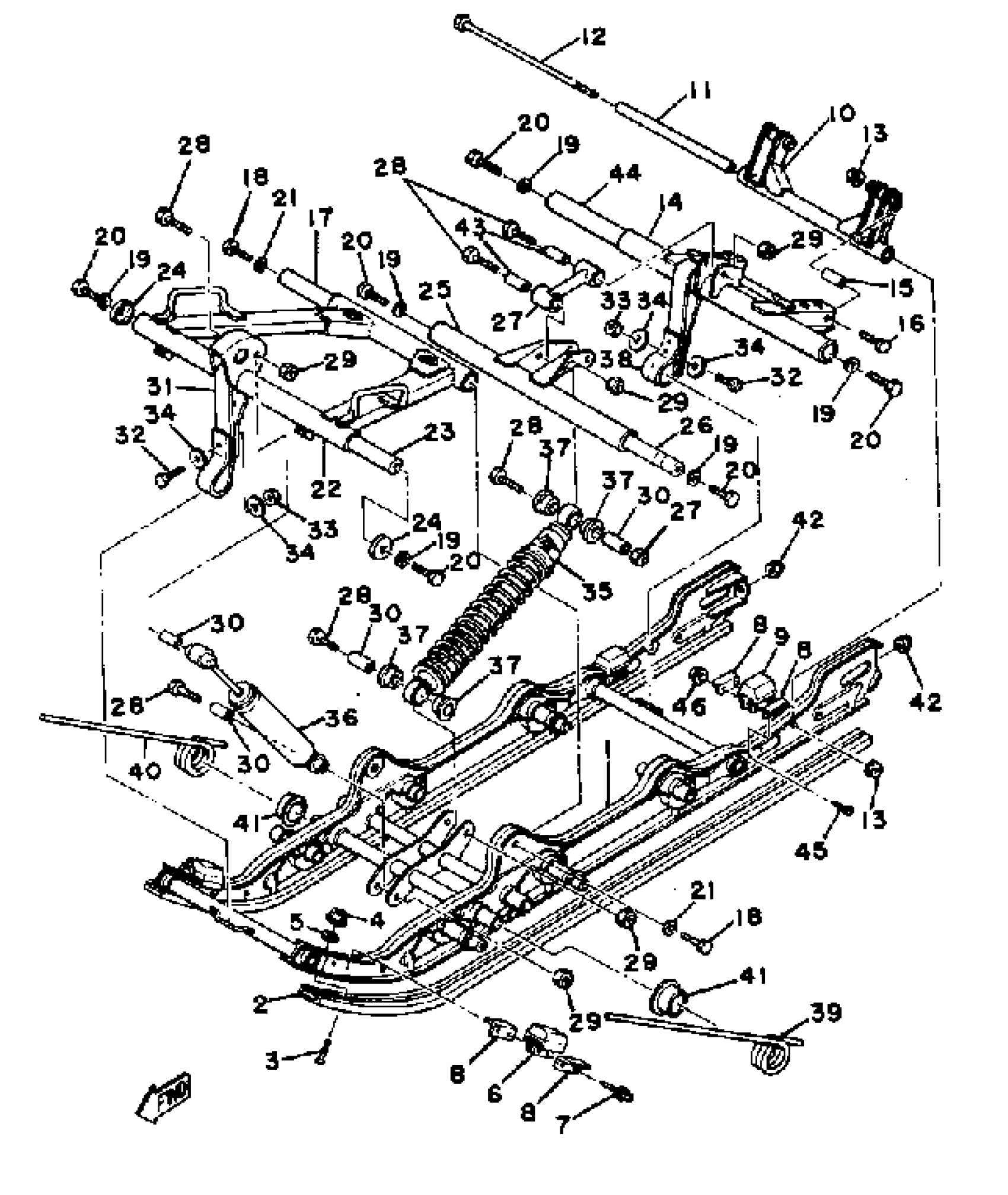

Find the part on the Track Suspension 2 SR540D diagram for your 1980 Yamaha SR540D, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1980 Yamaha SR540D Track Suspension 2 SR540D Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

FRAME SLIDING

8K2-47410-01-00

1
Out of stock

2

RUNNER, SLIDING 1

8K2-47421-00-XX

1
Out of stock

3

SCREW, FLAT HEAD

92702-08060-00

1
Out of stock

4

NUT, NYLON

95717-08300-00

1

$2.57

In stock

5

WASHER, PLAIN

92990-08200-00

1

$2.56

In stock

6

DAMPER 2

8K2-47457-00-00

1
Out of stock

7

RIVET, BLIND (8K4)

90267-48062-00

1

$3.38

In stock

8

PLATE, DAMPER

8K2-47458-01-00

1

$2.45

In stock

9

DAMPER 1

8K2-47456-00-00

1
Out of stock

10

BRACKET 3

(8K2-47417-00-00)

1
Out of stock

11

COLLAR

90387-08632-00

1
Out of stock

12

BOLT, HEXAGON (97101-08245)

97321-08245-00

1
Out of stock

13

NUT, NYLON

95717-08300-00

1

$2.57

In stock

14

ARM, PIVOT 2

8K2-47332-01-00

1
Out of stock

15

COLLAR (8K2)

90387-08754-00

1

$5.75

In stock

16

. BOLT

90101-08557-00

1
Out of stock

17

SHAFT 3

8K2-47485-00-00

1
Out of stock

18

BOLT (8J7)

97013-10030-00

—

$8.91

In stock

19

WASHER, TTH

92907-10400-00

1
Out of stock

20

BOLT (8J7)

97013-10030-00

—

$8.91

In stock

21

YBS67-10 WASHER, SPRING

92990-10100-00

—

$2.43

In stock

22

ARM, PIVOT 1

8K2-47331-00-00

1
Out of stock

23

SHAFT 1

8A5-47465-02-00

—

$46.62

In stock

24

SPACER

885-47341-00-00

1
Out of stock

25

BRACKET 5

8K2-47463-00-00

1
Out of stock

26

SHAFT 2

8K2-47475-00-00

1
Out of stock

27

BRACKET 6

8K2-47464-00-00

1
Out of stock

28

. BOLT

90101-08557-00

1
Out of stock

29

NUT, NYLON

95717-08300-00

1

$2.57

In stock

30

COLLAR (8K2)

90387-08754-00

1

$5.75

In stock

31

STOPPER 1

8E3-47495-00-00

1
Out of stock

32

BOLT(3RV)

97014-06035-00

—

$1.54

In stock

33

NUT, NYLON

95707-06300-00

—

$3.20

In stock

34

WASHER, PLATE

90201-06747-00

—

$6.17

In stock

35

SHOCK ABSORBER

8L8-47480-00-00

1
Out of stock

36

SHOCK ABSORBER 2

8K2-47481-01-00

1
Out of stock

37

COLLAR

90387-13758-00

1
Out of stock

38

STOPPER 1

(8K2-47495-01-00)

1
Out of stock

39

SPRING, TORSION

90508-90408-00

1
Out of stock

40

SPRING, TORSION

90508-90409-00

1
Out of stock

41

COLLAR

90387-30759-00

1
Out of stock

42

NUT, NYLON

95707-10300-00

—

$6.68

In stock

43

COLLAR

90387-08775-00

1
Out of stock

44

SHAFT 2

88T-47475-00-00

1
Out of stock

45

SCREW, PAN HEAD

98517-05030-00

—

$7.92

In stock

46

NUT, NYLON

95707-05300-00

—

$2.74

In stock
