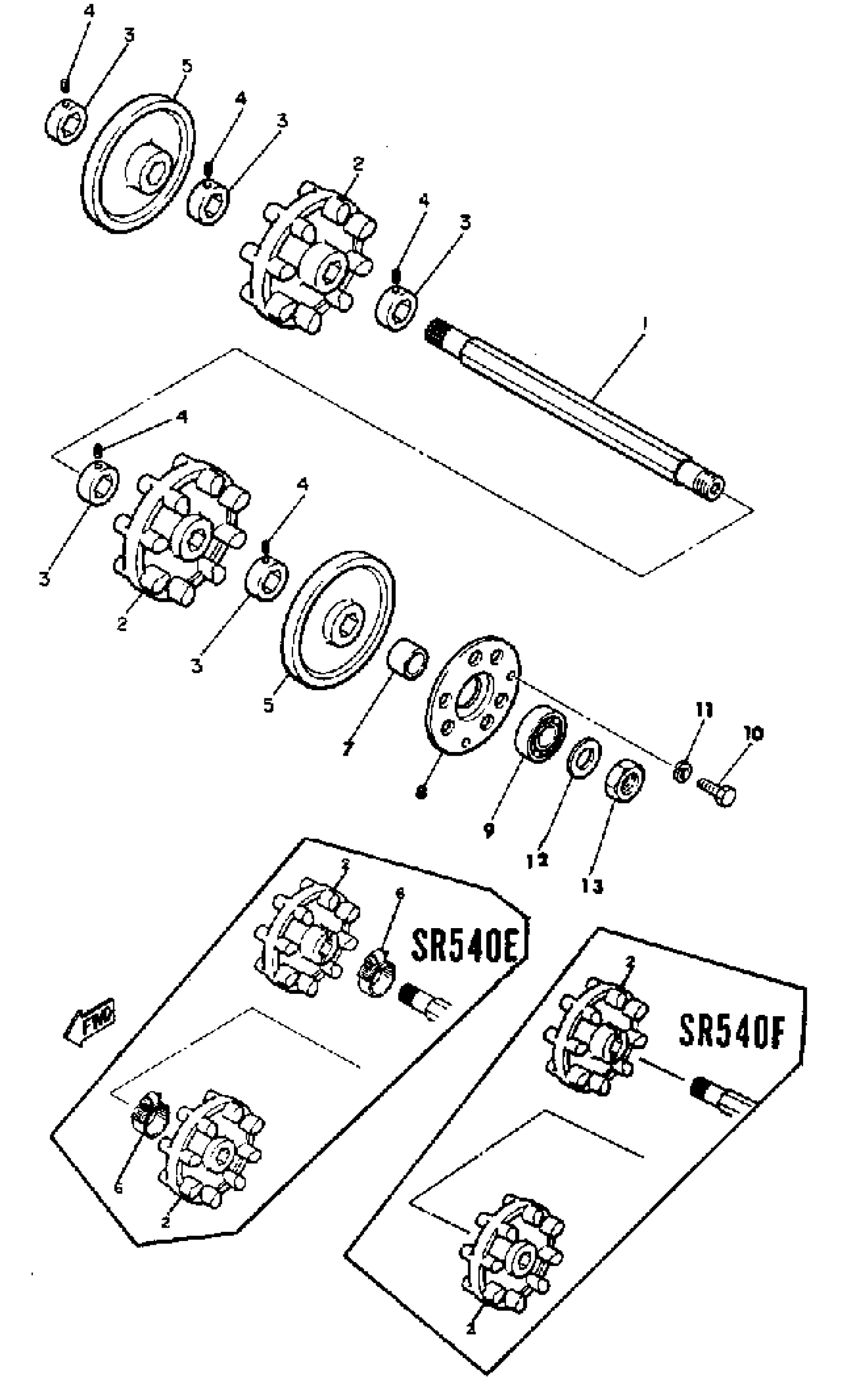

Find the part on the Track Drive 1 SR540DEF diagram for your 1980 Yamaha SR540D, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1980 Yamaha SR540D Track Drive 1 SR540DEF Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

AXLE, FRONT

8L0-W4751-00-00

1
Out of stock

2

WHEEL, SPROCKET 1

(8L0-47531-00-00)

1
Out of stock

2

WHEEL, SPROCKET 1

8L9-47531-00-00

1
Out of stock

2

WHEEL, SPROCKET 1

8R6-W4753-01-00

1
Out of stock

3

COLLAR

8K1-47526-00-00

1
Out of stock

3

COLLAR

8K1-47526-00-00

1
Out of stock

4

BOLT, SET (8K2)

90113-06039-00

1

$6.97

In stock

4

BOLT, SET (8K2)

90113-06039-00

1

$6.97

In stock

5

WHEEL, GUIDE 1

(8J0-47534-01-00)

1
Out of stock

5

WHEEL, GUIDE 1

8L9-47534-01-00

1
Out of stock

6

BAND (MADE IN CANADA)

90460-50079-00

—
Out of stock

7

COLLAR

90387-220A6-00

1
Out of stock

8

HOUSING, FRONT AXLE

8K4-47551-00-00

1

$25.82

In stock

9

BEARING 60/22

93306-00420-00

1
Out of stock

10

BOLT, HEXAGON

97017-08016-00

1
Out of stock

11

YBS67-8 WASHER, SPRING

92990-08100-00

—

$4.52

In stock

12

WASHER 810475810000

90208-22001-00

—

$7.35

In stock

13

NUT (821-47579-00)

90170-22094-00

—

$5.34

In stock
