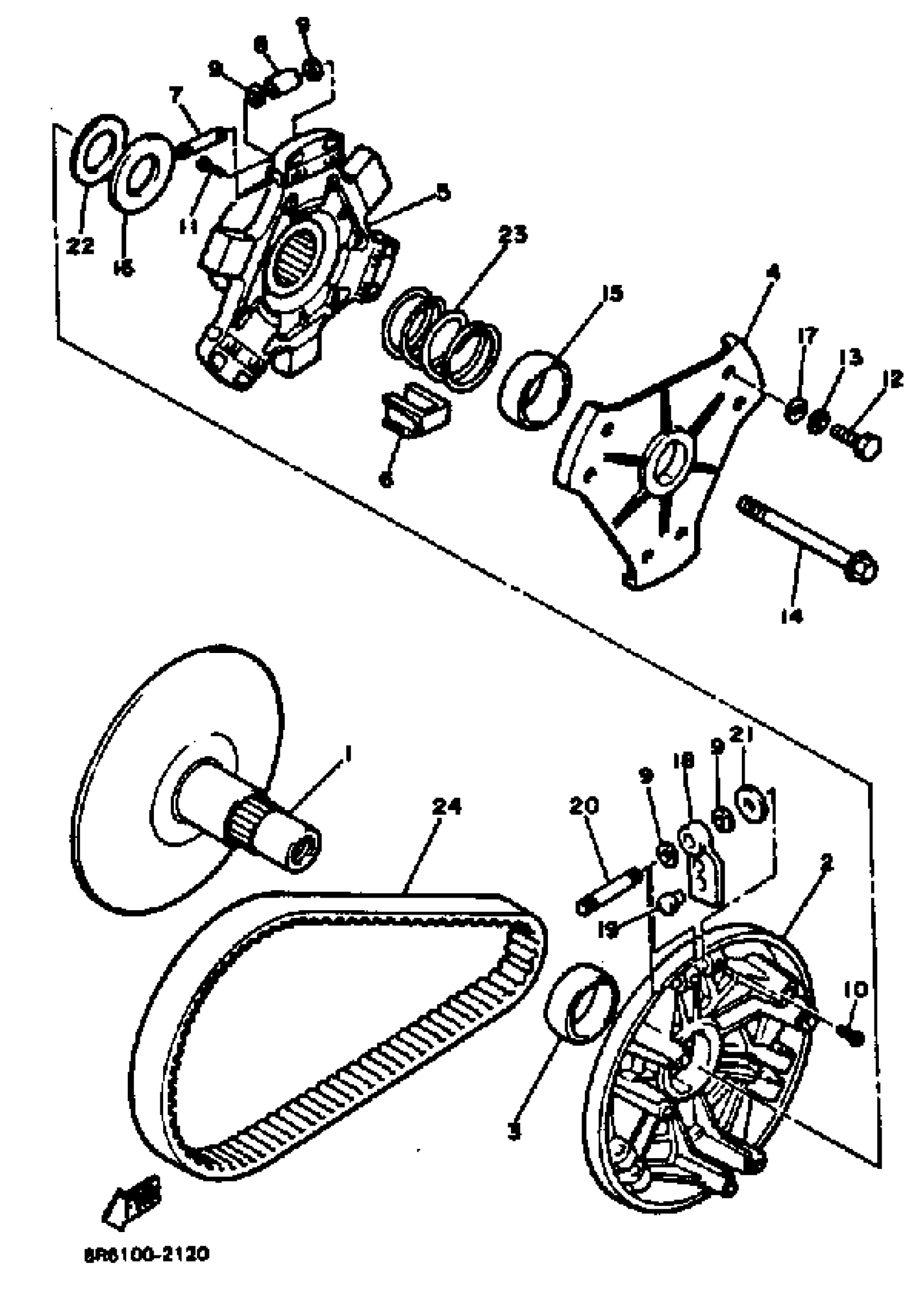

Find the part on the Primary Sheave SR540F diagram for your 1980 Yamaha SR540D, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1980 Yamaha SR540D Primary Sheave SR540F Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

PRI FIXED SHEAVE

8R6-17610-00-00

1
Out of stock

2

SPIDER

(8R6-17627-00-00)

1
Out of stock

3

BUSH (81H)

90389-40029-00

1

$63.09

In stock

4

WEIGHT

8R6-17633-00-00

1
Out of stock

5

SPIDER

(8R6-17627-00-00)

1
Out of stock

6

SLIDER

8R6-17653-00-00

1
Out of stock

7

PIN

8R6-17636-01-00

1
Out of stock

8

COLLAR

8R6-17645-00-00

1
Out of stock

9

WASHER, PLATE

90202-10131-00

1
Out of stock

10

BOLT (8R6)

90110-05049-00

—

$1.49

In stock

11

BOLT, HEX SKT HEAD

90110-05048-00

1
Out of stock

12

BOLT, HEXAGON

97013-06045-00

1

$1.51

In stock

13

WASHER, SPRING

92995-06100-00

1

$2.99

In stock

14

BOLT

8R6-17647-00-00

1
Out of stock

15

BUSH(83R)

90389-28032-00

1

$55.86

In stock

16

WASHER, PLATE

90201-32710-00

1
Out of stock

17

WASHER, PLAIN (646)

92990-06600-00

—

$2.48

In stock

18

WEIGHT

8R6-17633-00-00

1
Out of stock

18

WEIGHT

8R9-17633-00-00

1
Out of stock

19

—

$7.55

In stock

19

RIVET, CNTRSNK HD

90261-06016-00

1
Out of stock

20

PIN, WEIGHT

8R6-17628-00-00

1
Out of stock

21

WASHER, PLATE

90201-101F8-00

1
Out of stock

22

WASHER, PLATE

90201-32710-00

1
Out of stock

23

SPRING, COMPRESSION

90501-50500-00

1
Out of stock

23

SPRING, GRN/ORNG

90501-55672-00

1
Out of stock

24

V-BELT

89X-17641-01-00

1

$48.52

In stock

24

CLUTCH TUNE UP KIT

8R6-00000-50-00

1
Out of stock

24

CLUTCH WEIGHT KIT

8R6-17000-10-00

1
Out of stock

24

PRI FIXED SHEAVE

8R6-17610-00-00

1
Out of stock
