1980 Yamaha SR540D Taillight SR540D-E Diagram

← All diagrams

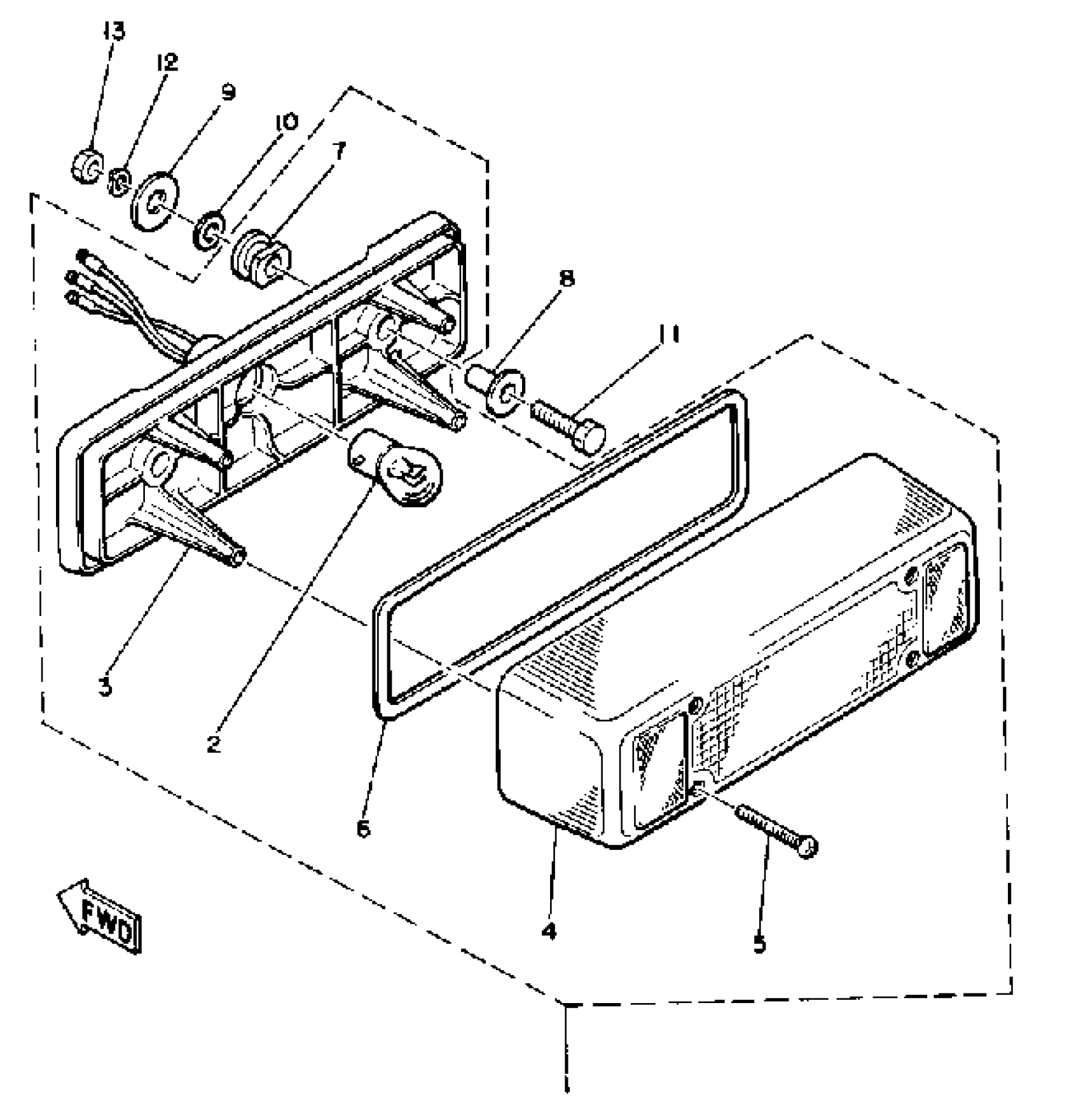

Find the part on the Taillight SR540D-E diagram for your 1980 Yamaha SR540D, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1980 Yamaha SR540D Taillight SR540D-E Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

TAILLIGHT UNIT ASSY

8K4-84710-01-00

1

$71.98

In stock

2

BULB(12V32/3CP)1157

137-84714-61-XX

1
Out of stock

3

BASE, TAILLIGHT

8K4-84711-01-00

1

$24.69

In stock

4

LENS, TAILLIGHT

8K4-84721-01-00

1

$37.66

In stock

5

1

$5.51

In stock

6

SEAL

3TJ-14457-00-00

—
Out of stock

7

GROMMET

8K4-84718-00-00

1
Out of stock

8

COLLAR

90387-06166-00

1
Out of stock

9

WASHER, PLATE

90201-06747-00

1

$6.17

In stock

10

WASHER, PLATE 8221447500

90201-06057-00

1
Out of stock

11

BOLT(3RV)

97014-06035-00

1

$1.54

In stock

12

WASHER, SPRING

92995-06100-00

1

$2.99

In stock

13

NUT, HEXAGON

95380-06600-00

1

$4.13

In stock
