1980 Yamaha SR540D Starter SR540D-E-F Diagram

← All diagrams

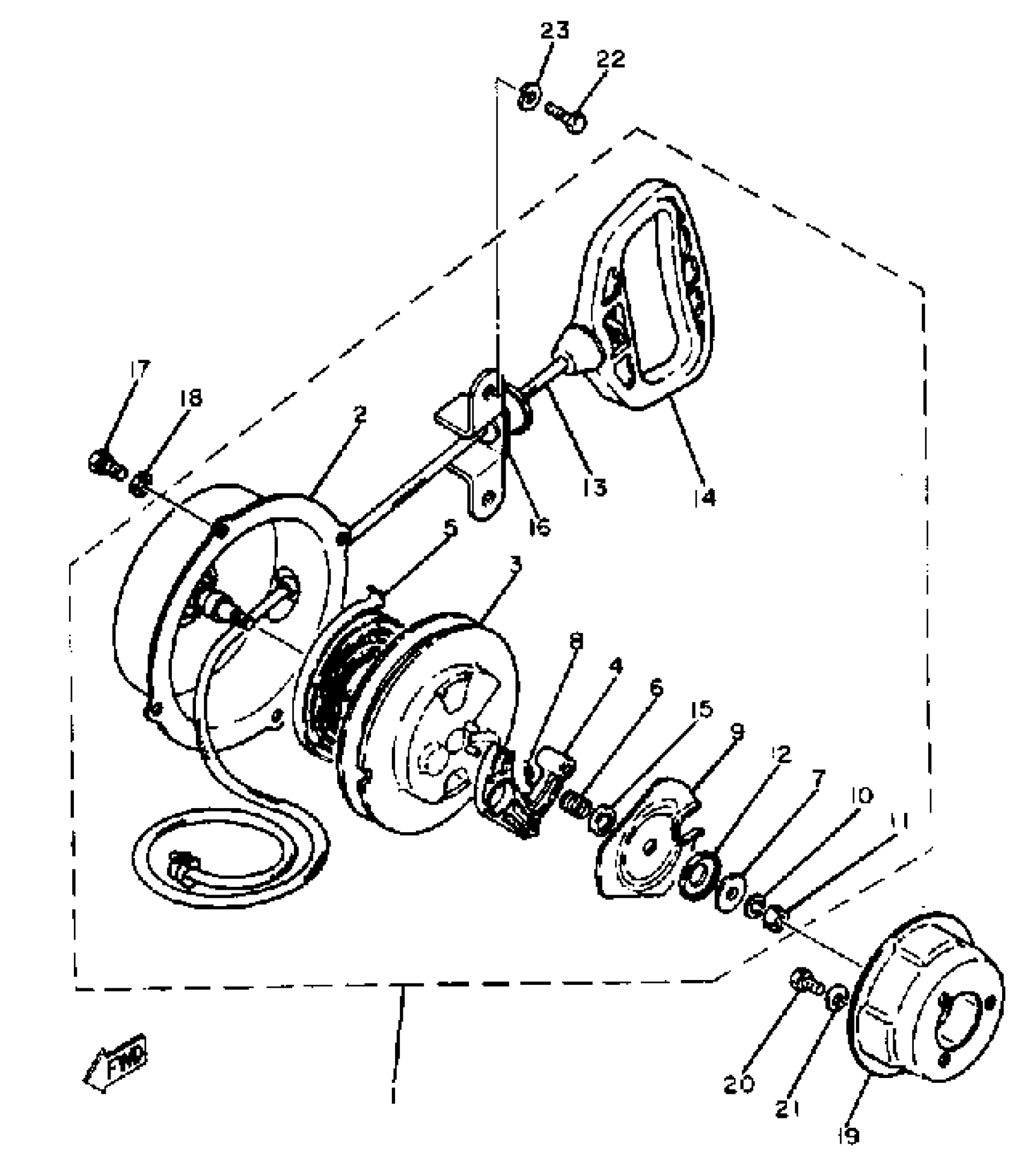

Find the part on the Starter SR540D-E-F diagram for your 1980 Yamaha SR540D, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1980 Yamaha SR540D Starter SR540D-E-F Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

STARTER ASY

99999-02987-00

1
Out of stock

2

CASE, STARTER

8H8-15711-00-00

—

$110.25

In stock

3

DRUM, SEAVE

8F3-15714-01-00

1

$45.63

In stock

4

PAWL, DRIVE

8F3-15741-01-00

1

$21.05

In stock

5

SPRING, STARTER

8F3-15713-01-00

1

$41.31

In stock

6

SPRING, DRIVE PLATE

8F3-15715-00-00

1

$9.15

In stock

7

WASHER, THRUST

8F3-15739-01-00

1

$11.03

In stock

8

SPRING, RETURN

8F3-15734-00-00

1

$5.12

In stock

9

PLATE, DRIVE

8F3-15716-03-00

1

$23.00

In stock

10

WASHER, SPRING

92995-06100-00

1

$2.99

In stock

11

NUT(650)

95380-06700-00

1

$6.17

In stock

12

WASHER, THRUST

8G5-15739-00-00

1

$6.94

In stock

13

WIRE, STARTER (BRAIDED)

89A-15751-00-00

1

$27.50

In stock

14

HANDLE, STARTER

8F3-15755-00-00

1

$23.00

In stock

15

COLLOR

82M-15779-00-00

1

$6.88

In stock

16

HOLDER, HANDLE

8F3-15788-01-00

—

$13.48

In stock

17

BOLT(8CP)

97017-06014-00

—

$5.12

In stock

18

WASHER, SPRING

92907-06100-00

—
Out of stock

19

PULLEY, STARTER

8H8-15723-01-00

—

$16.71

In stock

20

BOLT, HEXAGON

97013-08020-00

—

$1.54

In stock

21

YBS67-8 WASHER, SPRING

92990-08100-00

—

$4.52

In stock

22

BOLT, HEXAGON

97017-06012-00

—

$2.62

In stock

23

WASHER, SPRING

92907-06100-00

—
Out of stock
