1980 Yamaha SR540D Electrical 2 SR540F Diagram

← All diagrams

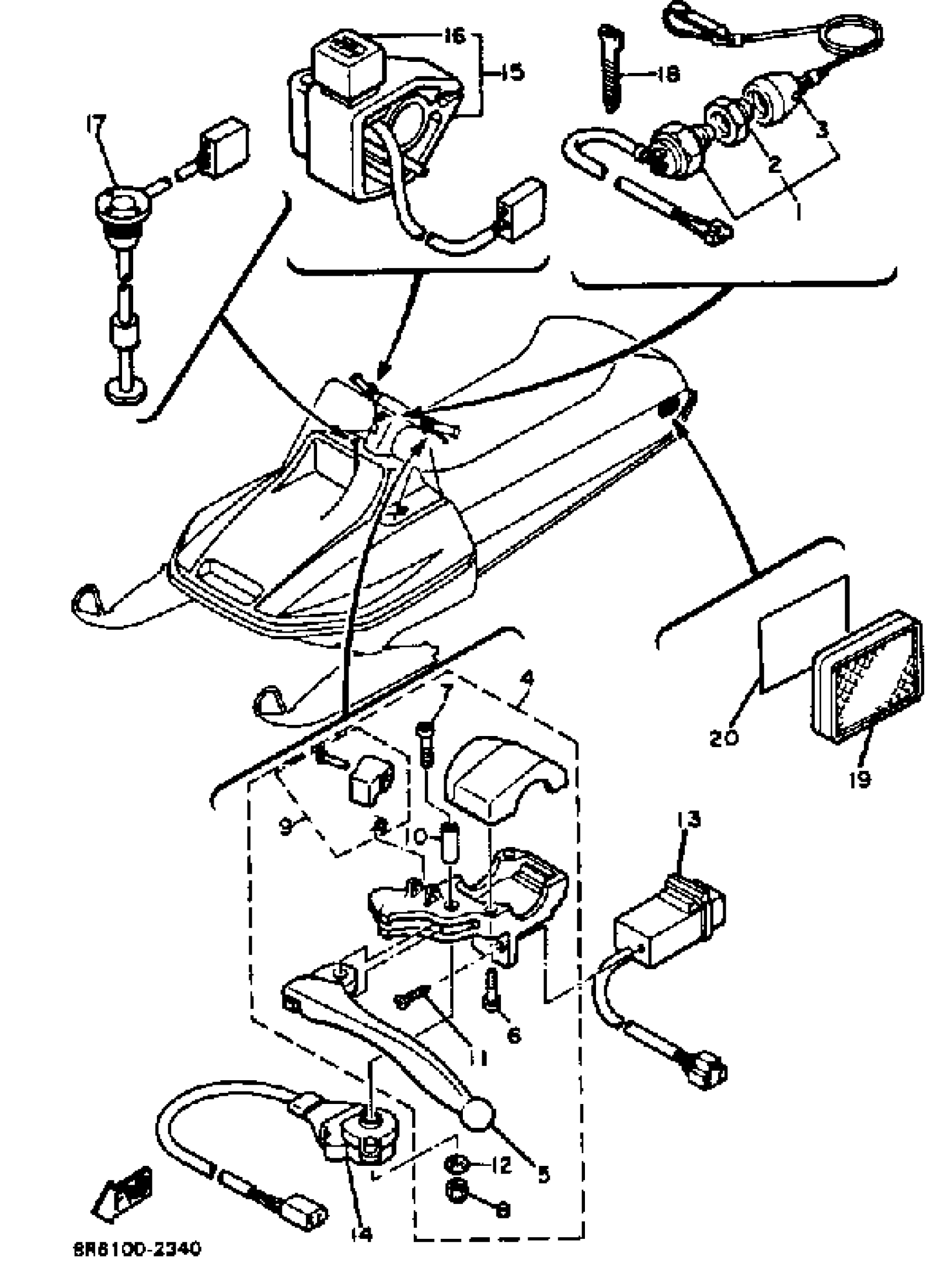

Find the part on the Electrical 2 SR540F diagram for your 1980 Yamaha SR540D, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1980 Yamaha SR540D Electrical 2 SR540F Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

STOP SWITCH ASSY

8H8-82550-01-00

1

$83.12

In stock

2

NUT

8H8-82557-00-00

1

$3.78

In stock

3

CAP, SWITCH

8H8-82552-09-00

1

$42.05

In stock

4

LEVER HOLDER ASSY (LEFT)

88R-W8291-00-00

1

$110.75

In stock

5

LEVER 1

8H8-83912-00-00

1

$18.40

In stock

6

SCREW, PAN HEAD(41N)

90157-05057-00

—

$2.23

In stock

7

SCREW, PAN

98507-05040-00

1

$6.68

In stock

8

NUT, NYLON

95707-05300-00

1

$2.74

In stock

9

. LEVER LOCK ASSEMBLY (8K4-83930-00-00)

82A-83930-00-00

1
Out of stock

10

COLLAR, LEVER

802-83913-00-00

—

$6.35

In stock

11

. SCREW, TAPPING

97780-30312-00

1
Out of stock

12

. WASHER, PLAIN

92990-05200-00

1

$5.08

In stock

13

BEAM SWITCH ASSY

8H8-83950-01-00

1

$68.89

In stock

14

STOP SWITCH ASSY

88R-82530-00-00

1

$25.06

In stock

15

SWITCH, HANDLE 1

8L8-83976-00-00

1
Out of stock

16

CAP 1

8E3-83956-01-00

—

$7.09

In stock

17

OIL LEVEL GAUGE ASSY

4HV-85720-03-00

—

$36.15

In stock

18

BAND, SWITCH CORD

437-83936-01-00

—

$4.63

In stock

19

REAR REFLECTOR ASSY

81G-85130-00-00

—

$33.55

In stock

20

TAPE, REFLECTOR

878-85133-00-00

1
Out of stock
