1981 Yamaha SR500H (SR500H) Carburetor Diagram

← All diagrams

Find the part on the Carburetor diagram for your 1981 Yamaha SR500H (SR500H), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

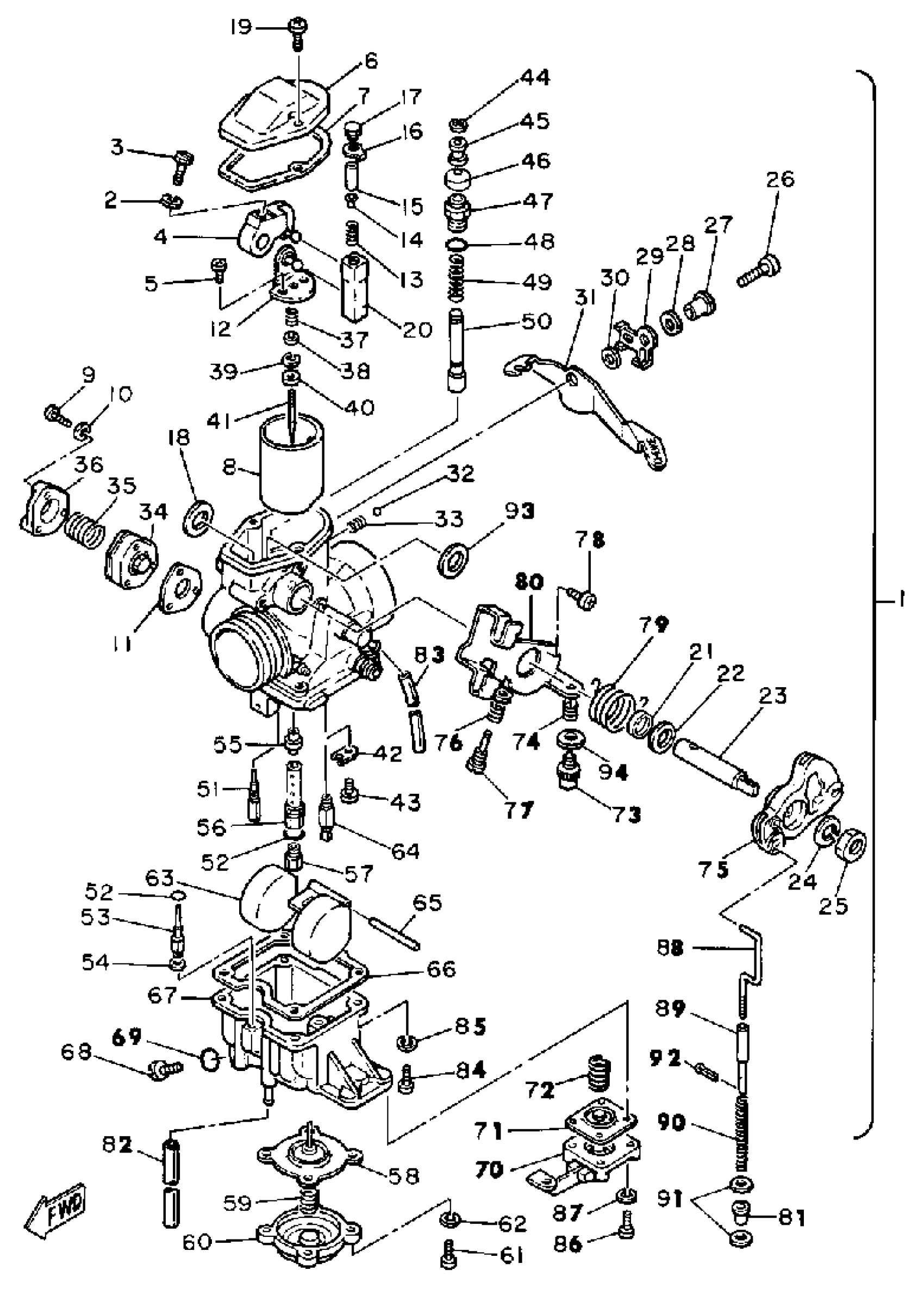

1981 Yamaha SR500H (SR500H) Carburetor Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

CARBURETOR ASSEMBLY 1

(3H1-14101-00-00)

1
Out of stock

2

YBS67-5 WASHER, SPRING

92990-05100-00

1
Out of stock

3

SCREW

(2V0-14592-00-00)

1
Out of stock

4

BRACKET 2

(3H1-14292-00-00)

1
Out of stock

5

SCREW, PAN HEAD

98511-04012-00

1
Out of stock

6

TOP, MIXING CHAMBER

(3H1-14158-00-00)

1
Out of stock

7

GASKET, MIXING CHAMBER TOP

583-14536-00-00

—

$37.68

In stock

8

VALVE, THROTTLE 1

(3H1-14112-35-00)

1
Out of stock

9

SCREW, PAN HEAD

98517-04025-00

1

$2.94

In stock

10

YBS67-4 WASHER, SPRING

92990-04100-00

1

$0.60

In stock

11

GASKET, ENRICHMENT PUMP

2H0-14198-00-00

1
Out of stock

12

BRACKET 1

(3H1-14291-00-00)

1
Out of stock

13

SPRING, DIAPHRAGM

(1T2-14933-00-00)

1
Out of stock

14

WASHER

(583-14558-00-00)

1
Out of stock

15

PIN, FLOAT

(583-14386-00-00)

1
Out of stock

16

WASHER

(583-14951-00-00)

1
Out of stock

17

SCREW

(3H1-14216-00-00)

1
Out of stock

18

. SPACER

583-14264-00-00

1
Out of stock

19

SCREW, PAN HEAD(GA5)

98580-04014-00

—

$2.78

In stock

20

CONNECTOR

(583-14274-00-00)

1
Out of stock

21

. SEAL

583-14239-01-00

1
Out of stock

22

. COLLAR

583-14265-00-00

1
Out of stock

23

SHAFT, THRTL LEVER

(3H1-14215-00-00)

1
Out of stock

24

YBS67-8 WASHER, SPRING

92990-08100-00

—

$4.52

In stock

25

NUT

812-14594-00-00

—

$5.34

In stock

26

SCREW, PAN HEAD

(98502-06014-00)

1
Out of stock

27

. RING

2J2-14194-00-00

1
Out of stock

28

. WASHER

2J2-14962-00-00

1
Out of stock

29

. PLATE, STARTER LVR

2H0-14178-00-00

1
Out of stock

30

. SPRING, CHOKE LEVER

2H0-14218-00-00

1
Out of stock

31

. LEVER, STARTER 1

2H0-14175-00-00

1
Out of stock

32

BALL

93501-08001-00

—

$0.97

In stock

33

SPRING

583-14589-00-00

—

$4.74

In stock

34

ENRICHMENT PUMP BODY ASSY

2H0-14217-00-00

—

$124.82

In stock

35

. SPRING, DIAPHRAGM

3H6-14933-00-00

1
Out of stock

36

COVER, DIAPHRAGM

(2H0-14958-00-00)

1
Out of stock

37

. SPRING

3H1-14589-00-00

1
Out of stock

38

. WASHER

2N6-14227-01-00

1
Out of stock

39

CLIP

3FA-14137-00-00

—

$6.80

In stock

40

. RING

2N6-14918-01-00

1
Out of stock

41

NEEDLE

(644-14116-31-00)

1
Out of stock

42

. PLATE

2H0-14146-00-00

1
Out of stock

43

SCREW, PAN HEAD(3XP)

98517-04006-00

1

$4.10

In stock

44

. CLIP

737-14137-00-00

1
Out of stock

45

. RING

583-14918-00-00

1
Out of stock

46

COVER, PLUNGER CAP

(3H1-14173-00-00)

1
Out of stock

47

. CAP, PLUNGER

2H0-14174-00-00

1
Out of stock

48

. O-RING

583-14562-00-00

1
Out of stock

49

. SPRING, PLUNGER

256-14135-00-00

1
Out of stock

50

. PLUNGER, STARTER

2H0-14171-00-00

1
Out of stock

51

JET, PILOT (# 20)

3H1-14142-20-00

—

$12.27

In stock

52

O-RING

583-14561-00-00

—

$4.74

In stock

53

. VALVE, CHECK SEAT

2H0-14272-00-00

1
Out of stock

54

. WASHER, NEEDLE VALVE

2H0-14195-00-00

1
Out of stock

55

. NOZZLE, MAIN

2H0-14141-48-00

1
Out of stock

56

. PIPE

3H1-14148-00-00

1
Out of stock

57

JET, MAIN #260

137-14143-52-00

—
Out of stock

58

DIAPHRAGM ASSY

3H1-14940-00-00

—

$32.74

In stock

59

. SPRING, DIAPHRAGM

3H1-14933-00-00

1
Out of stock

60

COVER, DIAPHRAGM

(3H1-14958-00-00)

1
Out of stock

61

SCREW, PAN HEAD(GA5)

98580-04014-00

—

$2.78

In stock

62

YBS67-4 WASHER, SPRING

92990-04100-00

1

$0.60

In stock

63

. FLOAT

3H1-14185-00-00

1
Out of stock

64

. NEEDLE VALVE ASSEMBLY

3H1-14190-28-00

1
Out of stock

65

PIN, FLOAT

537-14186-00-00

—
Out of stock

66

GASKET, FLOAT CHAMBER

3H1-14184-00-00

—

$14.20

In stock

67

BODY, FLOAT ASSEMBLY.

(99999-01148-00)

1
Out of stock

68

SCREW

2L1-14191-00-00

—
Out of stock

69

O-RING

214-14147-00-00

—
Out of stock

70

. LEVER, STARTER

2H0-14905-00-00

1
Out of stock

71

DIAPHRAGM ASSY

2J4-14940-00-00

—

$54.37

In stock

72

. SPRING

2J4-14589-00-00

1
Out of stock

73

SCREW, THRTL STOP

(2H6-14121-00-00)

1
Out of stock

74

SPRING

8X0-14500-00-00

—

$17.91

In stock

75

LEVER

(3H1-14573-00-00)

1
Out of stock

76

. SPRING, THRTL STOP

583-14133-00-00

1
Out of stock

77

. SCREW, GUIDE

583-14245-00-00

1
Out of stock

78

SCREW,PAN HEAD (646)

98580-05012-00

—

$5.60

In stock

79

. SPRING, THRTL VALVE

583-14131-01-00

1
Out of stock

80

BRACKET, THROTTLE

(3H1-14571-00-00)

1
Out of stock

81

. COLLAR

2H0-14534-00-00

1
Out of stock

82

PIPE, OVER FLOW

2J2-14196-00-00

—

$30.20

In stock

83

HOSE (L340)

90445-08684-00

—

$3.37

In stock

84

SCREW, PAN HEAD(6B0)

97885-05016-00

1

$3.96

In stock

85

YBS67-5 WASHER, SPRING

92990-05100-00

1
Out of stock

86

SCREW, PAN HEAD

98511-04012-00

1
Out of stock

87

YBS67-4 WASHER, SPRING

92990-04100-00

1

$0.60

In stock

88

. ROD

3H1-14992-00-00

1
Out of stock

89

. ROD

2H0-14992-00-00

1
Out of stock

90

. SPRING

2J2-14589-00-00

1
Out of stock

91

. WASHER

2H0-14227-00-00

1
Out of stock

92

. PIN, COTTER

91401-10015-00

1
Out of stock

93

. WASHER

3H1-14227-00-00

1
Out of stock

94

WASHER (3H1)

1A8-14953-00-00

—

$3.69

In stock
