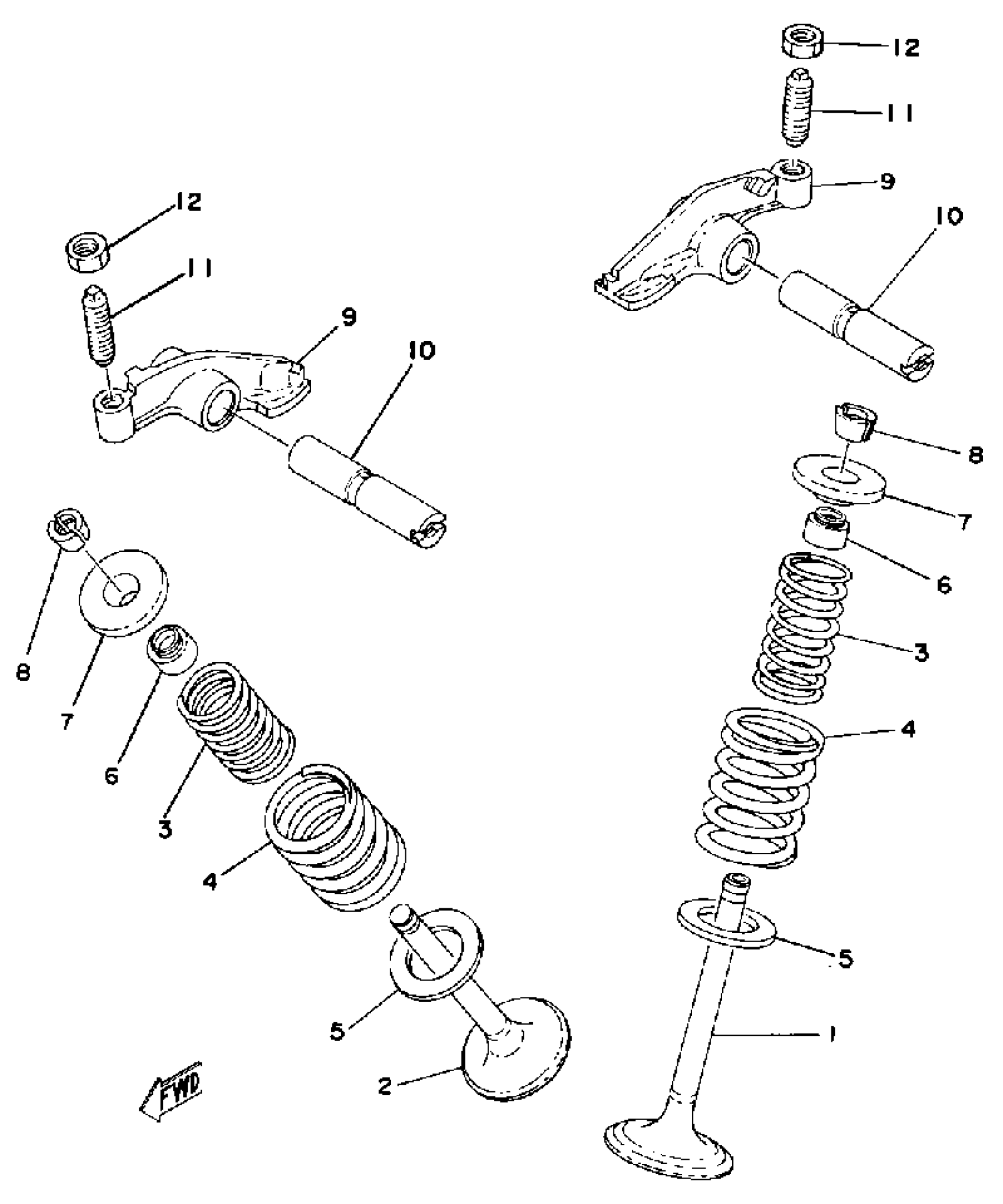

Yamaha SR500H (SR500H) 1981 VALVE Diagram

#

Description
Price

1

VALVE, INTAKE

2J2-12111-01-00

$56.31

2

VALVE, EXHAUST

583-12121-00-00

Unavailable

3

SPRING, COMPRESSION (1T1)

90501-31454-00

$10.96

4

SPRING, COMPRESSION (1T1)

90501-44455-00

$13.44

5

SEAT, VALVE SPRING

256-12116-01-00

Unavailable

6

SEAL, VALVE STEM OIL

341-12119-02-00

$13.26

7

RETAINER, VALVE SPRING

256-12117-02-00

$14.14

8

LOCK, VALVE SPRING (447)

341-12118-00-00

$8.14

9

ARM, VALVE ROCKER

583-12151-00-00

Unavailable

10

SHAFT, ROCKER 2

583-12156-02-00

$41.61

11

SCREW, VALVE ADJUSTING

3HT-12159-R0-00

$13.61

12

NUT, HEXAGON

90170-08173-00

$6.26
