1981 Yamaha SR500H (SR500H) Intake Diagram

← All diagrams

Find the part on the Intake diagram for your 1981 Yamaha SR500H (SR500H), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

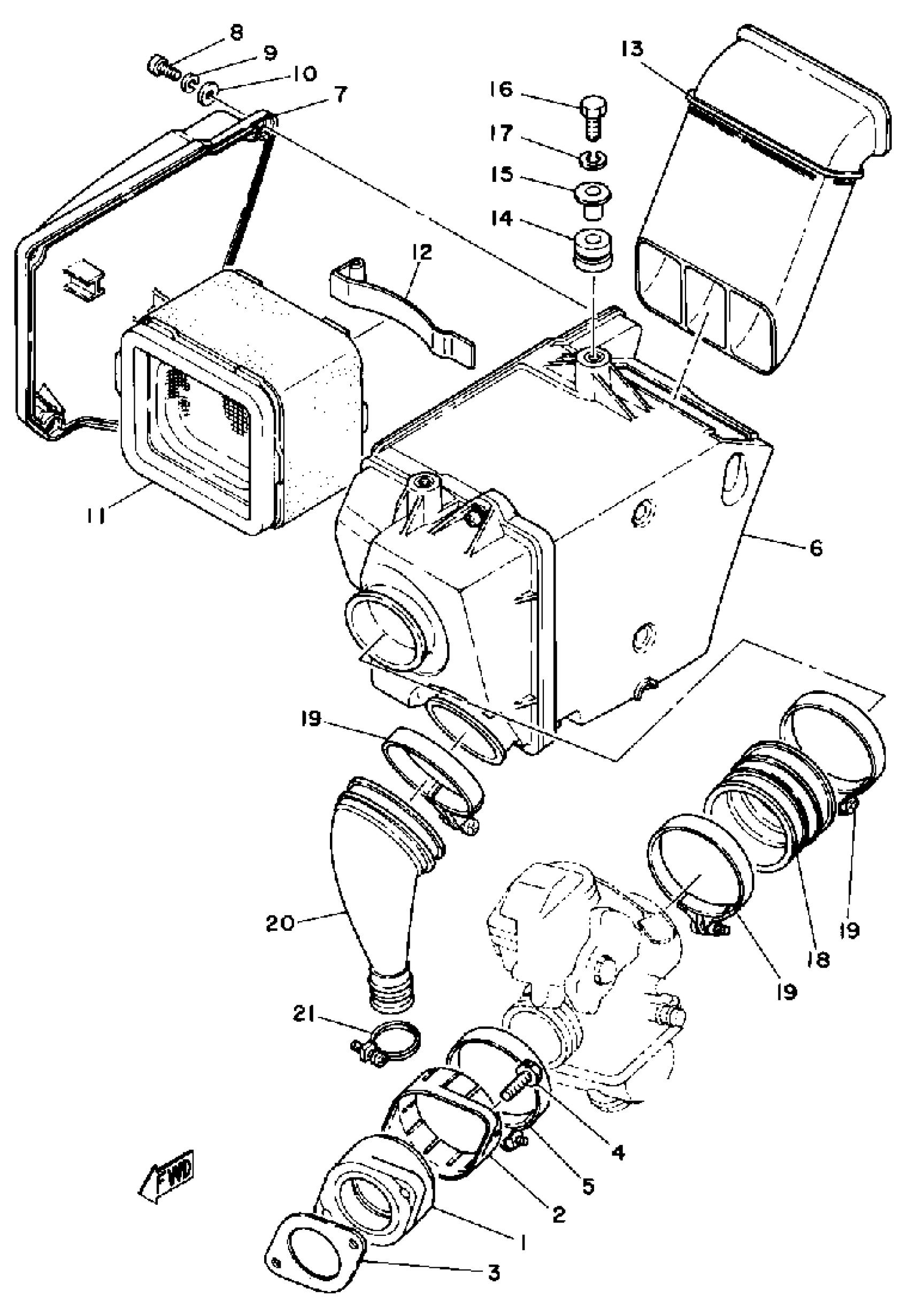

1981 Yamaha SR500H (SR500H) Intake Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

JOINT, MANIFOLD

583-13565-01-00

—

$99.48

In stock

2

COVER,JOINT

256-13564-00-00

—

$14.12

In stock

3

GASKET, MANIFOLD

3HT-13556-00-00

1

$9.89

In stock

4

BOLT,SOCKET

91317-06025-00

1

$2.05

In stock

5

HOSE CLAMP ASSY

90450-58002-00

1

$15.11

In stock

6

AIR CLNR CASE ASSEMBLY

2J2-14401-00-00

1
Out of stock

7

CAP, CLEANER CASE 2

2J2-14422-00-00

1
Out of stock

8

SCREW,PAN HEAD (646)

98580-05012-00

1

$5.60

In stock

9

YBS67-5 WASHER, SPRING

92990-05100-00

1
Out of stock

10

WASHER, PLAIN (646)

92990-05600-00

1
Out of stock

11

ELEMENT,AIR CLNR

2J2-14451-01-00

—
Out of stock

12

PLATE, ELEMENT FTNG

2J2-14468-00-00

1
Out of stock

13

DUCT

(2J2-14437-00-00)

1
Out of stock

14

GROMMET 839774310000

90480-14023-00

1

$4.74

In stock

15

COLLAR 437216330000

90387-07391-00

—

$7.74

In stock

16

BOLT, HEXAGON

97017-06025-00

—

$2.98

In stock

17

WASHER, SPRING

92995-06100-00

1

$2.99

In stock

18

JOINT, AIR CLNR 1

3H1-14453-00-00

1
Out of stock

19

HOSE CLAMP ASSY

90450-62006-00

—

$10.77

In stock

20

JOINT, AIR CLNR 2

2J2-14463-00-00

1
Out of stock

21

CLAMP, HOSE (583)

90460-22083-00

—
Out of stock
