1973 Yamaha SR433C Tachometer Diagram

← All diagrams

Find the part on the Tachometer diagram for your 1973 Yamaha SR433C, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

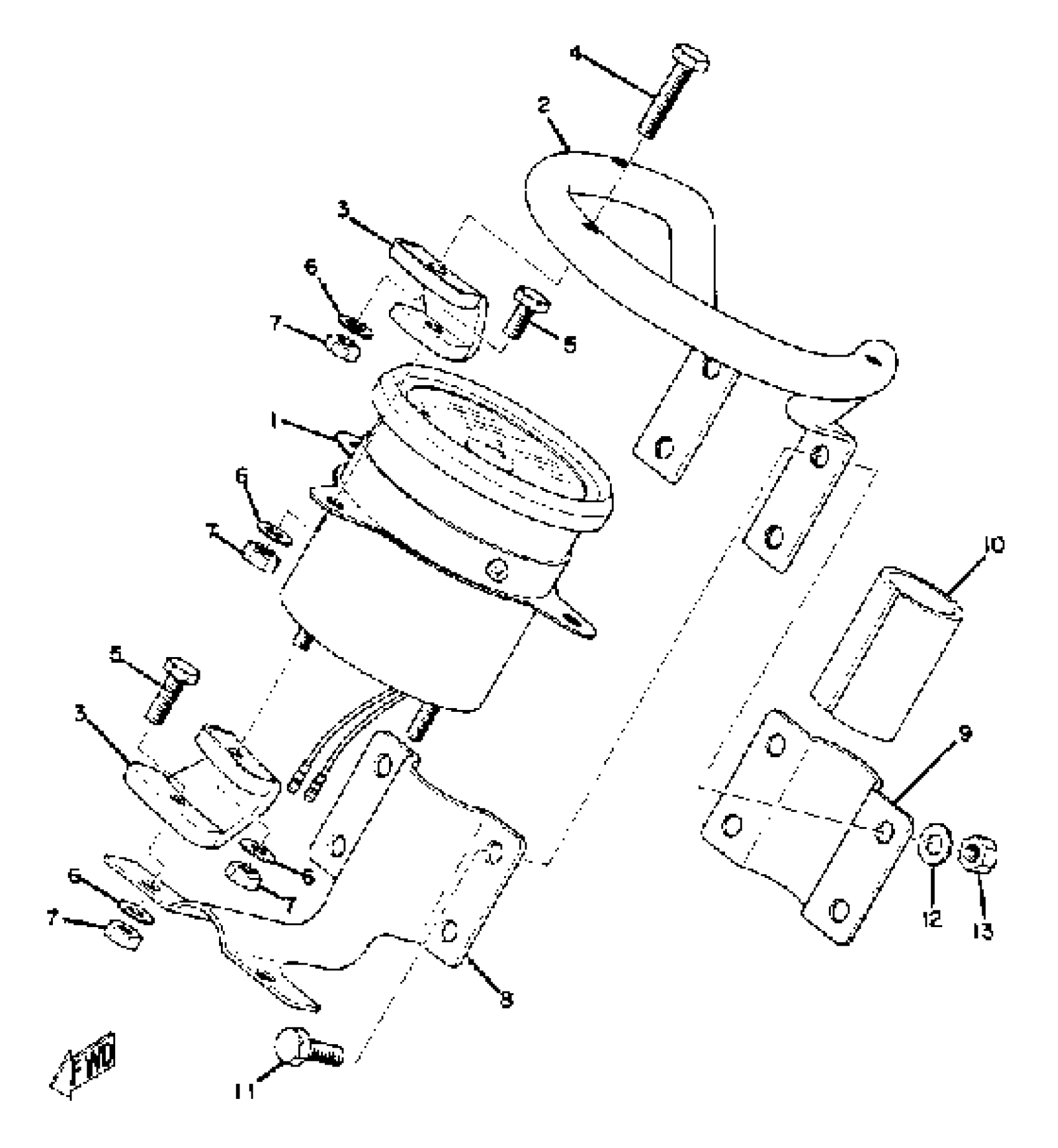

1973 Yamaha SR433C Tachometer Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

TACHOMETER ASSEMBLY

857-83540-10-00

1
Out of stock

2

BRACKET, TACHOMETER

(856-83545-00-00)

1
Out of stock

3

DAMPER, BRACKET

143-83543-00-00

1
Out of stock

4

BOLT, HEXAGON

(97326-05025-00)

1
Out of stock

5

BOLT, HEXAGON

(97306-05015-00)

1
Out of stock

6

WASHER, PLAIN LARGE

92907-05200-00

1
Out of stock

7

NUT, SELF-LOCKING

(90185-05018-00)

1
Out of stock

8

PLATE, FITTING

(856-83544-00-00)

1
Out of stock

9

PLATE, FITTING

856-83577-00-00

1
Out of stock

10

DAMPER

(856-83541-00-00)

1
Out of stock

11

BOLT, HEXAGON

97017-06020-00

1

$2.55

In stock

12

WASHER(6TA)

92907-06200-00

1

$6.18

In stock

13

NUT, SELF-LOCKING

(90185-06019-00)

1
Out of stock
