1973 Yamaha SR433C Electrical Diagram

← All diagrams

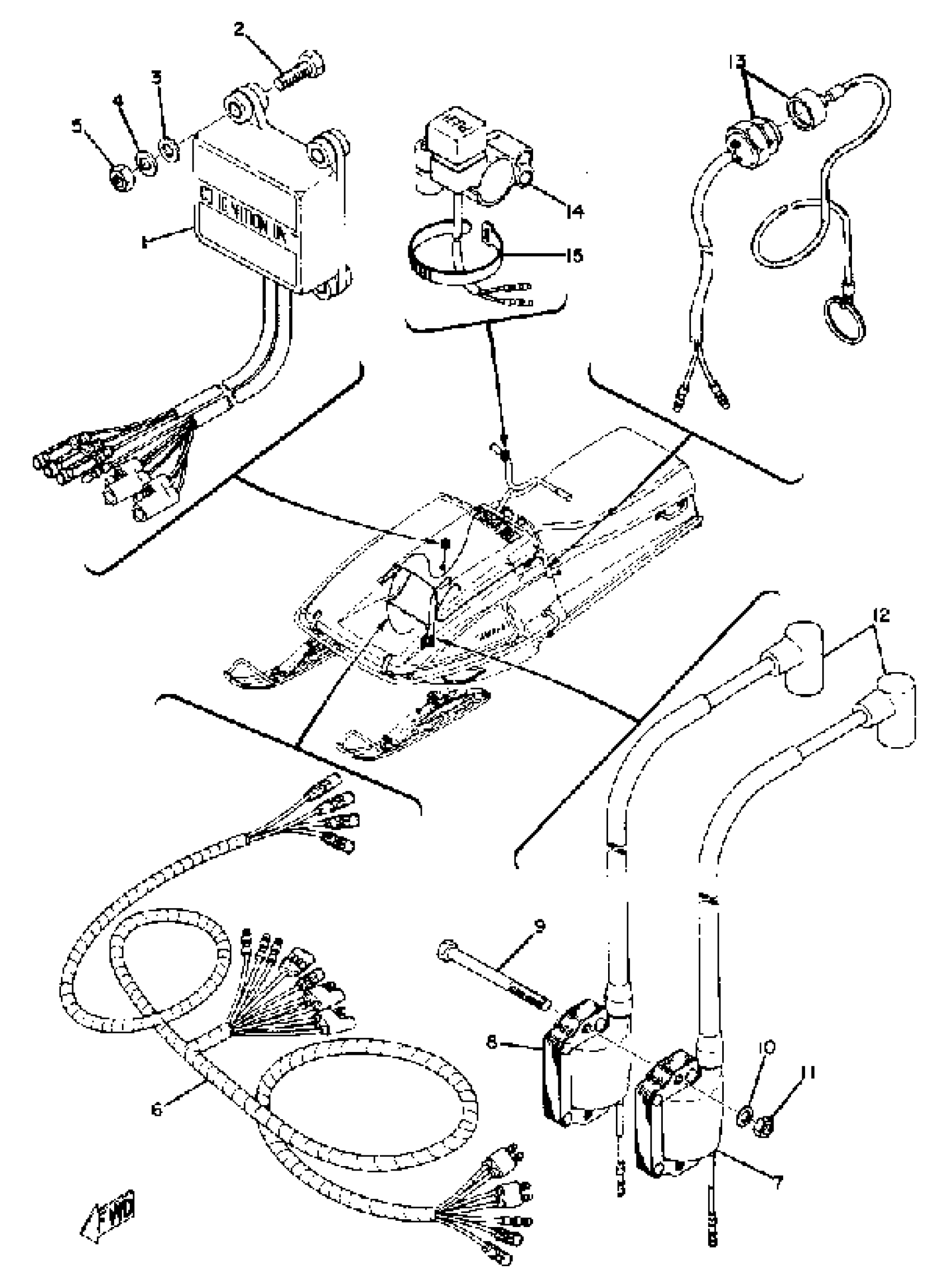

Find the part on the Electrical diagram for your 1973 Yamaha SR433C, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1973 Yamaha SR433C Electrical Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

CDI UNIT ASSEMBLY

(857-85540-10-00)

1
Out of stock

2

BOLT, HEXAGON

97017-06025-00

1

$2.98

In stock

3

YBS66-6 WASHER, PLAIN

92990-06200-00

1

$0.78

In stock

4

WASHER, SPRING

92995-06100-00

1

$2.99

In stock

5

NUT, HEXAGON

95380-06600-00

1

$4.13

In stock

6

WIRE HARNESS ASSEMBLY

(857-82590-20-00)

1
Out of stock

7

IGNITION COIL ASSEMBLY

(878-82310-30-00)

1
Out of stock

8

IGNITION COIL ASSEMBLY

(857-82320-30-00)

1
Out of stock

9

BOLT, HEXAGON

(97306-06070-00)

1
Out of stock

10

WASHER, SPRING

92907-06100-00

1
Out of stock

11

NUT(6TA)

95317-06600-00

1

$2.69

In stock

12

PLUG CAP ASSY

663-82370-01-00

1

$13.45

In stock

13

STOP SWITCH ASSEMBLY

856-82550-01-00

1
Out of stock

14

SWITCH, HANDLE 1

(820-83976-00-00)

1
Out of stock

15

BAND, SWITCH CORD

437-83936-01-00

1

$4.63

In stock
