1973 Yamaha SR433C CDI Magneto Diagram

← All diagrams

Find the part on the CDI Magneto diagram for your 1973 Yamaha SR433C, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

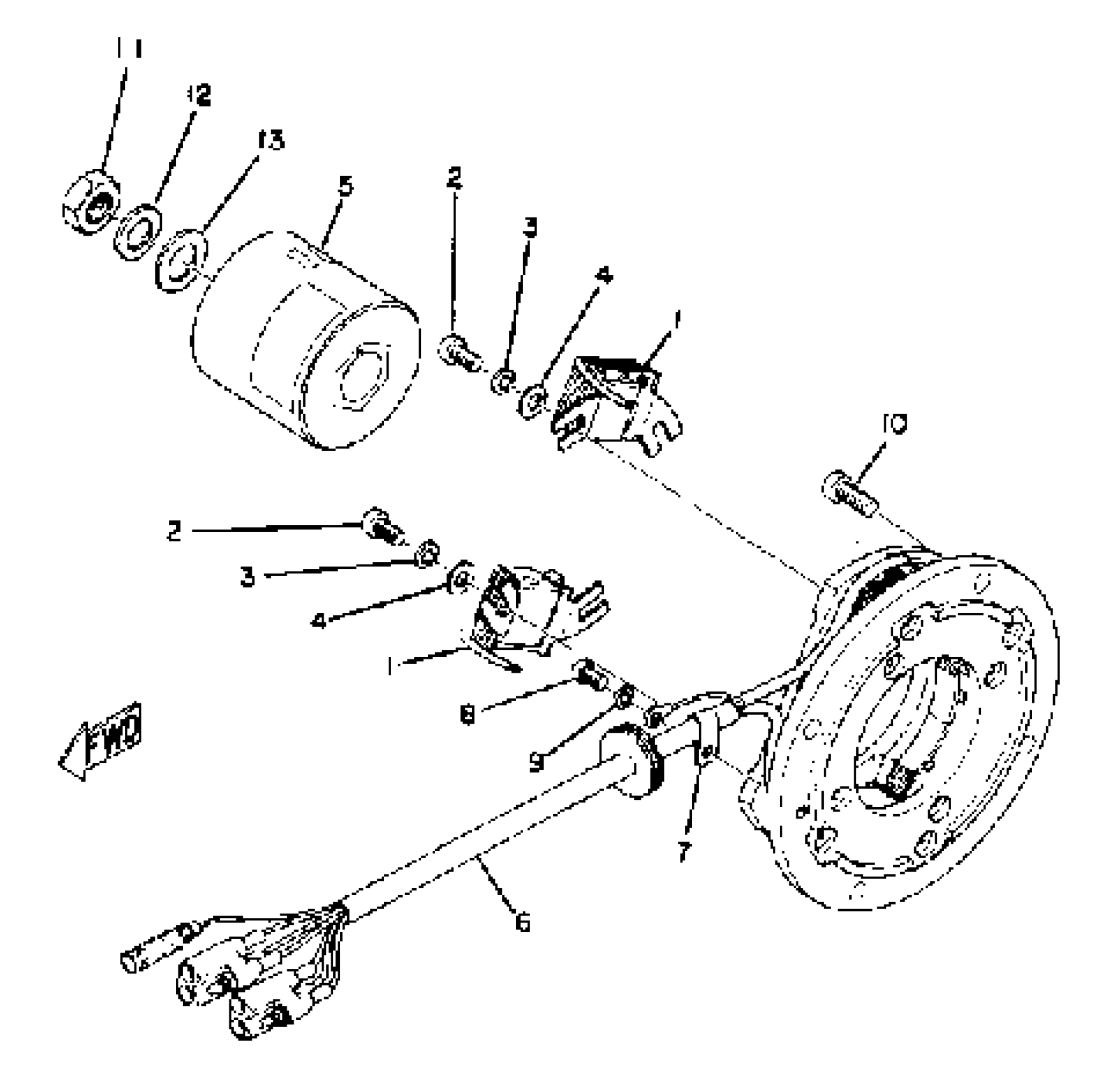

1973 Yamaha SR433C CDI Magneto Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

CDI MAGNETO ASSEMBLY

(857-85500-10-00)

1
Out of stock

1

COIL PULSER

(857-85543-10-00)

1
Out of stock

2

SCREW, PAN HEAD(62X)

97885-05010-00

1

$2.65

In stock

3

YBS67-5 WASHER, SPRING

92990-05100-00

1
Out of stock

4

. WASHER, PLAIN

92990-05200-00

1

$5.08

In stock

5

ROTOR ASSEMBLY

(857-85550-10-00)

1
Out of stock

6

LEAD WIRE ASSEMBLY

(857-85515-10-00)

1
Out of stock

7

. CLAMP

109-81328-11-00

1
Out of stock

8

SCREW, PAN HEAD (713)

98580-04008-00

1

$4.54

In stock

9

YBS67-4 WASHER, SPRING

92990-04100-00

1

$0.60

In stock

10

SCREW, PAN

98507-06014-00

1

$6.18

In stock

11

NUT, HEXAGON SMALL

95317-12700-00

1

$6.17

In stock

12

YBS67-12 WASHER,SPRING

92990-12100-00

1

$6.68

In stock

13

WASHER, PLATE

(90201-12525-00)

1
Out of stock
