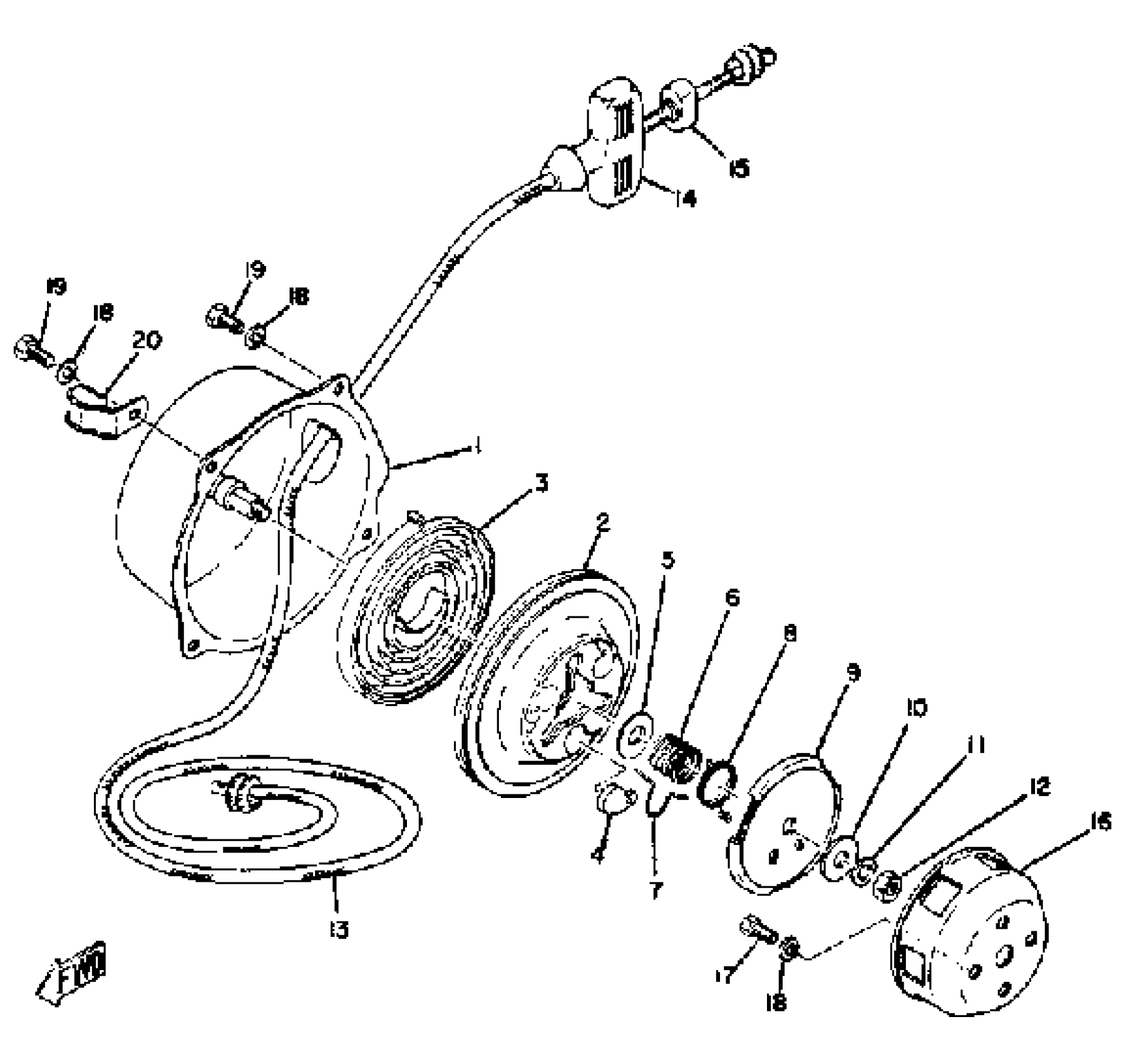

Find the part on the Starter diagram for your 1973 Yamaha SR433C, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1973 Yamaha SR433C Starter Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

CASE, STARTER

(820-15711-00-00)

1
Out of stock

1

STARTER ASSEMBLY

(857-15710-02-00)

1
Out of stock

2

. DRUM, SHEAVE

811-15714-00-00

1
Out of stock

3

SPRING, STARTER

8F3-15713-01-00

1

$41.31

In stock

4

. PAWL, DRIVE

616-15741-01-00

1
Out of stock

5

. WASHER, THRUST (802-15719-00)

626-15719-00-00

1
Out of stock

6

SPRING,DRIVE PLATE

626-15715-01-00

—

$2.42

In stock

7

. SPRING, RETURN

811-15784-00-00

1
Out of stock

8

. SPRING, RETURN

811-15734-00-00

1
Out of stock

9

. PLATE, DRIVE

811-15716-00-00

1
Out of stock

10

WASHER,FLAT

807-15726-01-00

—

$3.54

In stock

11

YBS67-8 WASHER, SPRING

92990-08100-00

1

$4.52

In stock

12

. NUT

95380-08700-00

1

$3.07

In stock

13

WIRE, STARTER (BRAIDED)

89A-15751-00-00

1

$27.50

In stock

14

. HANDLE, STARTER

807-15755-00-00

1
Out of stock

15

. CONNECTOR 1

619-15756-00-00

1
Out of stock

16

PULLEY, STARTER

(857-15723-00-00)

1
Out of stock

17

BOLT (661)

97013-06012-00

—

$4.71

In stock

18

WASHER, SPRING

92995-06100-00

1

$2.99

In stock

19

BOLT, HEXAGON DEEP RECESS

97D95-06016-00

—

$1.91

In stock

20

CLAMP

90465-06013-00

1
Out of stock
