1972 Yamaha SR433B (SR433B) Track - Suspension Wheel Diagram

← All diagrams

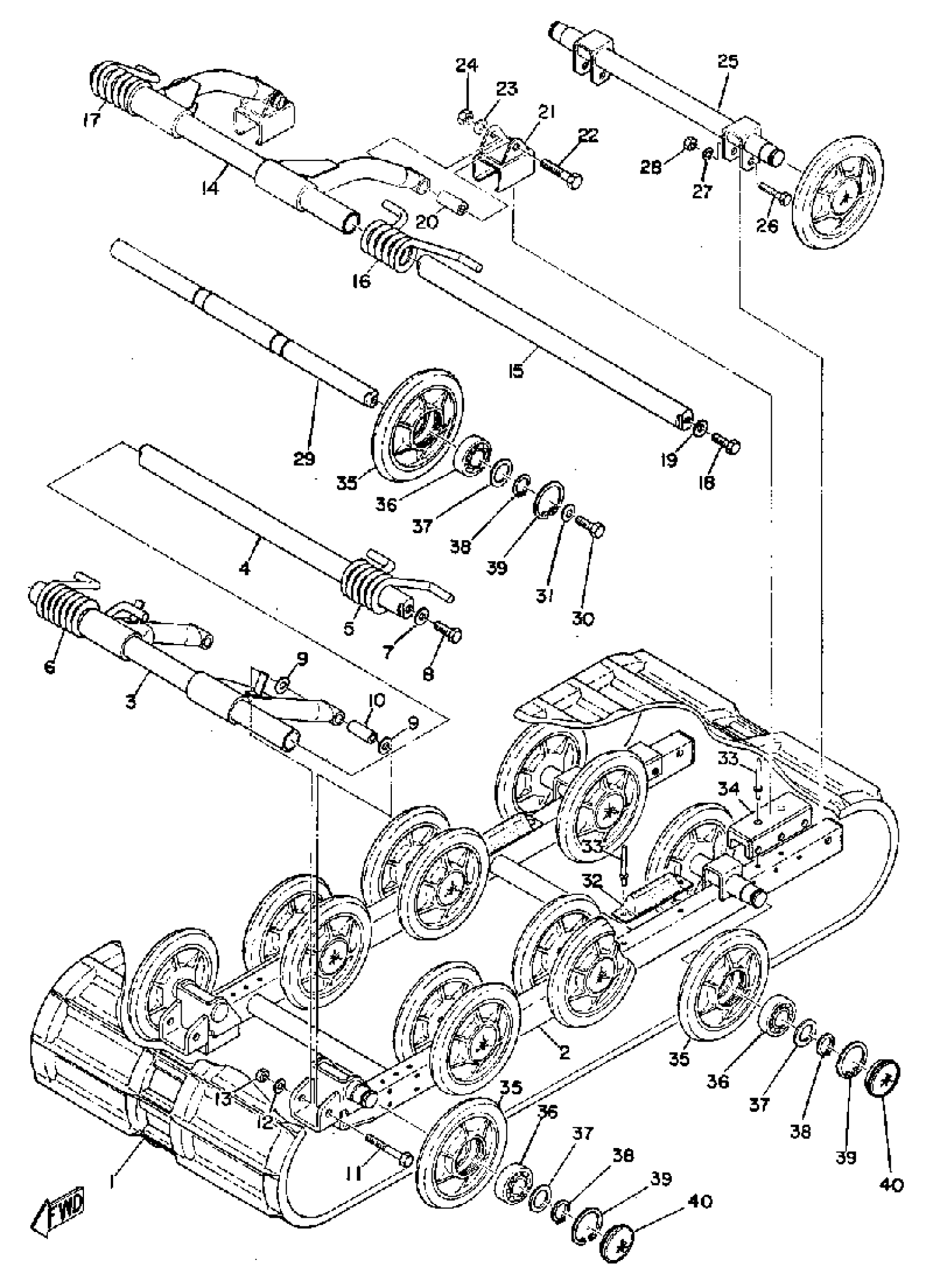

Find the part on the Track - Suspension Wheel diagram for your 1972 Yamaha SR433B (SR433B), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1972 Yamaha SR433B (SR433B) Track - Suspension Wheel Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

TRACK ASSEMBLY

(861-47110-00-00)

1
Out of stock

2

FRAME, SLIDING 1

(829-47411-00-00)

1
Out of stock

3

ARM, PIVOT 1

(829-47331-00-00)

1
Out of stock

4

SHAFT, PIVOT

(802-47337-00-00)

1
Out of stock

5

SPRING, TORSION

(90508-95126-00)

1
Out of stock

6

SPRING, TORSION

(90508-95108-00)

1
Out of stock

7

SPRING, BELLEVILLE

(829-16119-00-00)

1
Out of stock

8

BOLT

(90101-08024-00)

1
Out of stock

9

WASHER, PLAIN

92990-08200-00

1
Out of stock

10

COLLAR

(90387-08048-00)

1
Out of stock

11

BOLT, HEXAGON

97013-08055-00

1
Out of stock

12

YBS67-8 WASHER, SPRING

92990-08100-00

1
Out of stock

13

NUT(6L2)

95333-08600-00

1
Out of stock

14

ARM, PIVOT 2

(829-47332-00-00)

1
Out of stock

15

SHAFT, PIVOT

(802-47337-00-00)

1
Out of stock

16

SPRING, TORSION

(90508-85125-00)

1
Out of stock

17

UNAVAILABLE IN PRICE BOOK (829-47428-00)

90508-85107-00

1
Out of stock

18

BOLT

(90101-08024-00)

1
Out of stock

19

SPRING, BELLEVILLE

(829-16119-00-00)

1
Out of stock

20

COLLAR

(90387-08048-00)

1
Out of stock

21

SLIDER 1

(829-47441-00-00)

1
Out of stock

22

BOLT

97013-08045-00

—
Out of stock

23

YBS67-8 WASHER, SPRING

92990-08100-00

1
Out of stock

24

NUT(6L2)

95333-08600-00

1
Out of stock

25

BAR, SUSPENSION

(829-47451-00-00)

1
Out of stock

26

BOLT

97014-08040-00

—
Out of stock

27

YBS67-8 WASHER, SPRING

92990-08100-00

1
Out of stock

28

NUT(6L2)

95333-08600-00

1
Out of stock

29

SHAFT 1

(829-47465-00-00)

1
Out of stock

30

BOLT

(90101-08024-00)

1
Out of stock

31

SPRING, BELLEVILLE

(829-16119-00-00)

1
Out of stock

32

DAMPER 1

(829-47456-00-00)

1
Out of stock

33

RIVET 1

(829-77155-00-00)

1
Out of stock

34

SEAT, SLIDING 1

(829-47431-00-00)

1
Out of stock

35

SUSPENSION WHEEL COMP

885-47320-01-00

—
Out of stock

36

BEARING(8AB)

93306-00444-00

—
Out of stock

37

WASHER PLATE 820473590000

90201-20272-00

—
Out of stock

38

CIRCLIP(1AR)

99009-20400-00

—
Out of stock

39

CIRCLIP(5U8)

99009-42500-00

—
Out of stock

40

CAP, WHEEL

818-47317-01-00

1
Out of stock

41

CAP, WHEEL

(829-47317-00-00)

1
Out of stock
